Instrument Harness

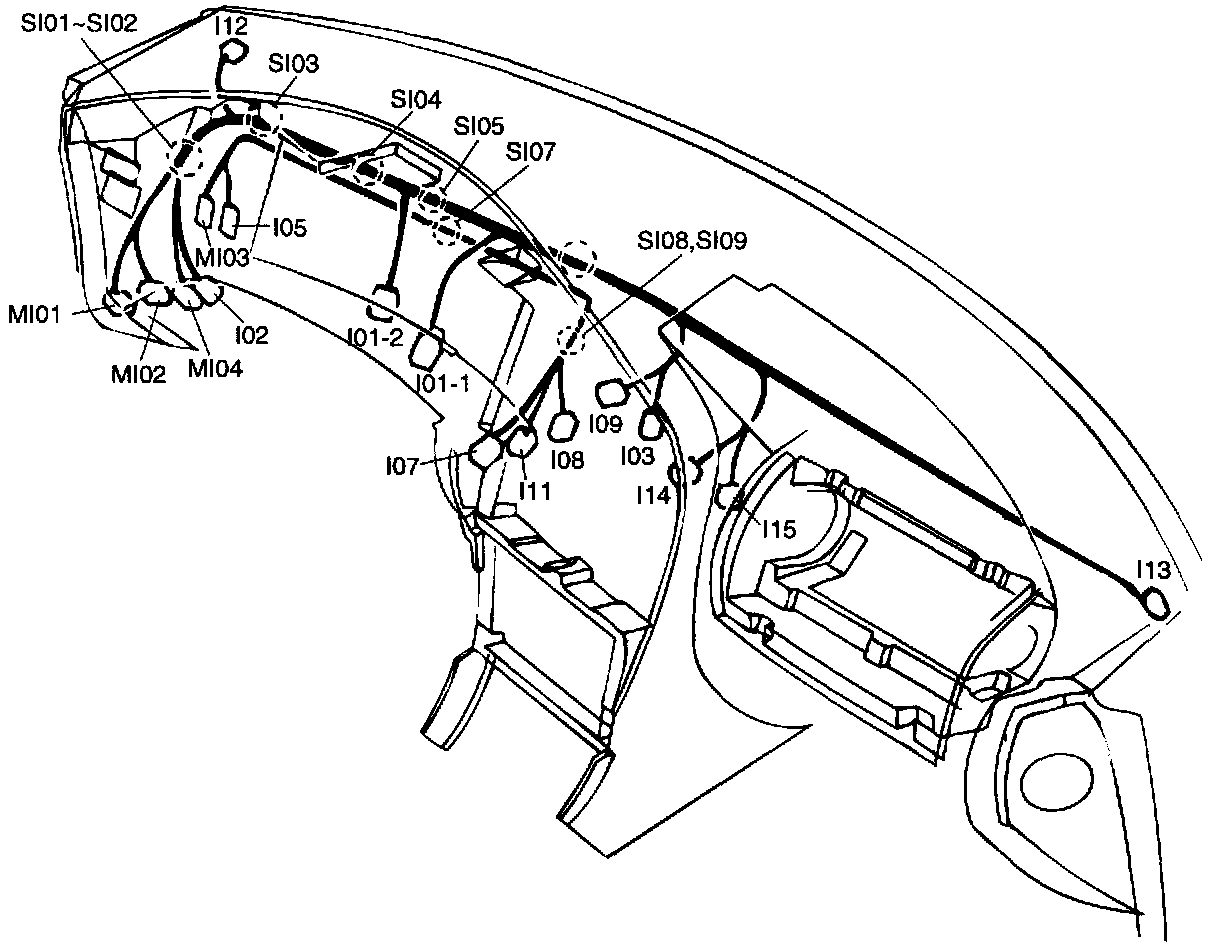

Harness Layout

I01-1 Instrument cluster
I01-2 Instrument cluster
I02 Rheostat
I03 Digital clock
I05 Front fog lamp switch
I07 Cruise switch
I08 Rear glass defogger switch
I09 Hazard switch
I11 Rear wiper & washer switch
I12 Left tweeter speaker
I13 Right tweeter speaker
I14 A/C switch
I15 Blower switch
MI01 Connection with MAIN harness
MI02 Connection with MAIN harness
MI03 Connection with MAIN harness
MI04 Connection with MAIN harness
