Trunk Room and Trunk Lid Harness

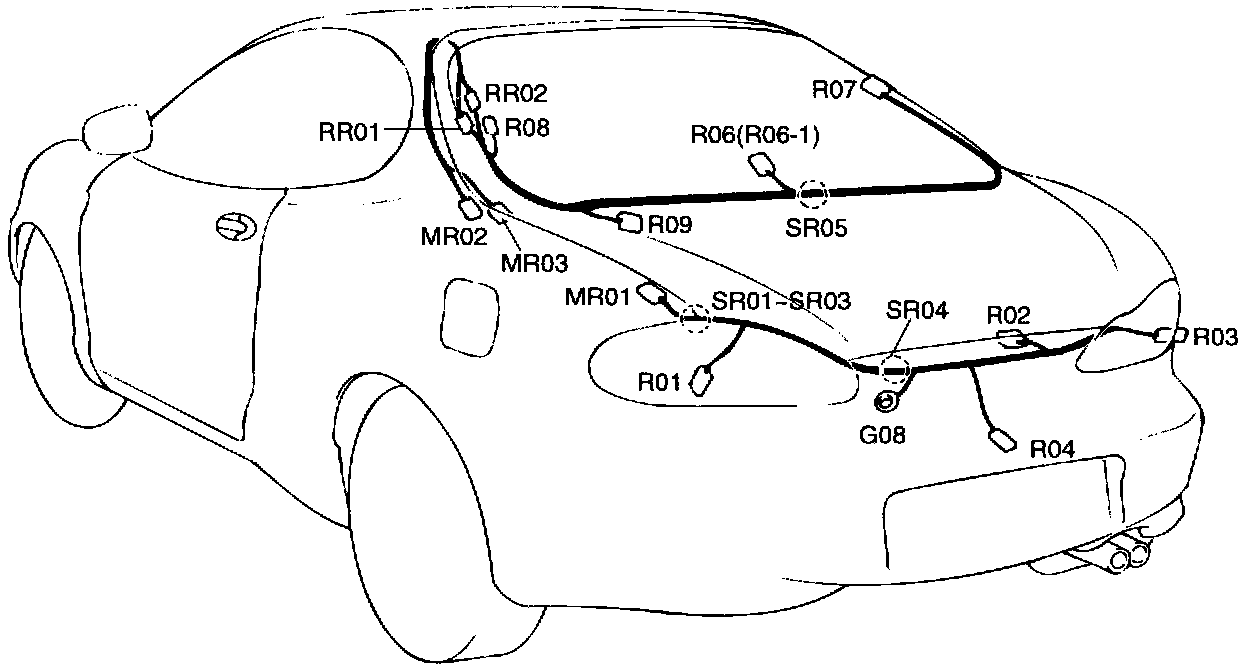

Harness Layout

R01 Left rear combination lamp
R02 Tail gate switch
R03 Right rear combination lamp
R04 License lamp
R06 High mounted stop lamp (Glass)
R06-1 High mounted stop lamp (Spoiler)
R07 Rear glass defogger (-)
R08 Rear glass defogger (+)
R09 Rear wiper motor
MR01 Connection with MAIN harness
MR02 Connection with MAIN harness
MR03 Connection with MAIN harness
RR01 Connection with TAIL GATE EXT. harness
RR02 Connection with TAIL GATE EXT harness
GR0UND G08
