Air Duct: Service and Repair

DEFROSTER NOZZLE ASSEMBLY AND MAIN AIR VENT DUCT ASSEMBLY

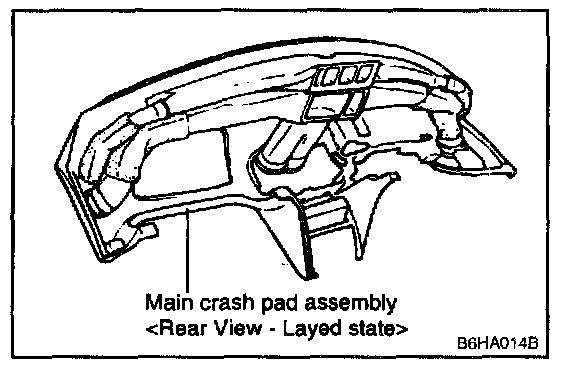

1. Remove the main crash pad assembly.

NOTE: Removal and installation should be carried out on the back of the main crash pad assembly.

Defroster Nozzle Assembly




2. Remove the LH side defroster nozzle assembly.




3. Remove the RH side defroster nozzle assembly.




4. Remove the defroster nozzle assembly.




5. After releasing clips (3EA), remove the defroster nozzle upper cover (LH/RH).

Main Air Vent Duct Assembly




6. Remove the main air vent duct assembly.

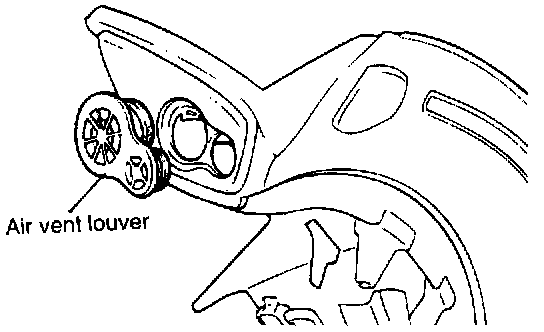

7. Remove the side air vent louver assembly (LH).

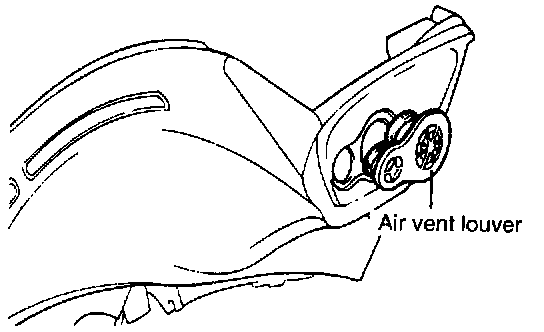

8. Remove the side air vent louver assembly (RH).




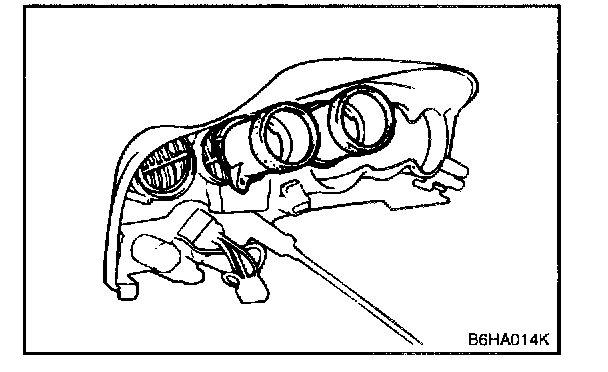

9. Remove the center air vent louver assembly from the cluster facia panel.
10. Installation of the main air vent duct assembly and defroster nozzle assembly is the reverse order of removal.

REAR HEATING DUCT ASSEMBLY

LH SIDE

1. Remove the driver seat assembly.




2. Remove the rear heating side duct (LH).




3. Remove the floor console.

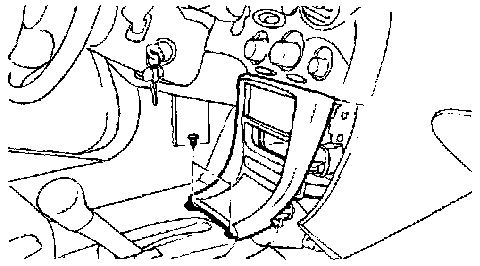

4. Remove the cent facia panel.




5. Remove the front air vent (LH).




6. Turn over the carpet and remove the console mounting bracket (LH).




7. Remove the rear heating joint duct (LH).

RH SIDE




8. Remove the front passenger seat.
9. Remove the rear heating side duct (RH).




10. Remove the front heating side duck.




11. Turn over the carpet and remove the console mounting bracket (RH).




12. Remove the rear heating joint duct (RH).
13. Installation is the reverse order of removal.
