Fuel Gauge Sender: Testing and Inspection

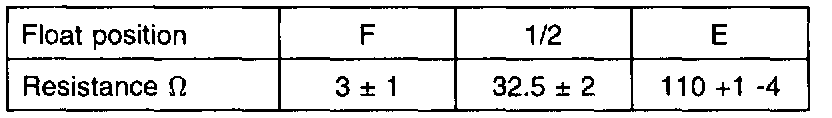

1. Using a ohmmeter, measure the resistance between terminals 1 and 6 at each float level.




2. Also check that the resistance changes smoothly when the float moves from "E" to "F".
