Electrical Diagrams

���6��6�;�6Engine Control System:

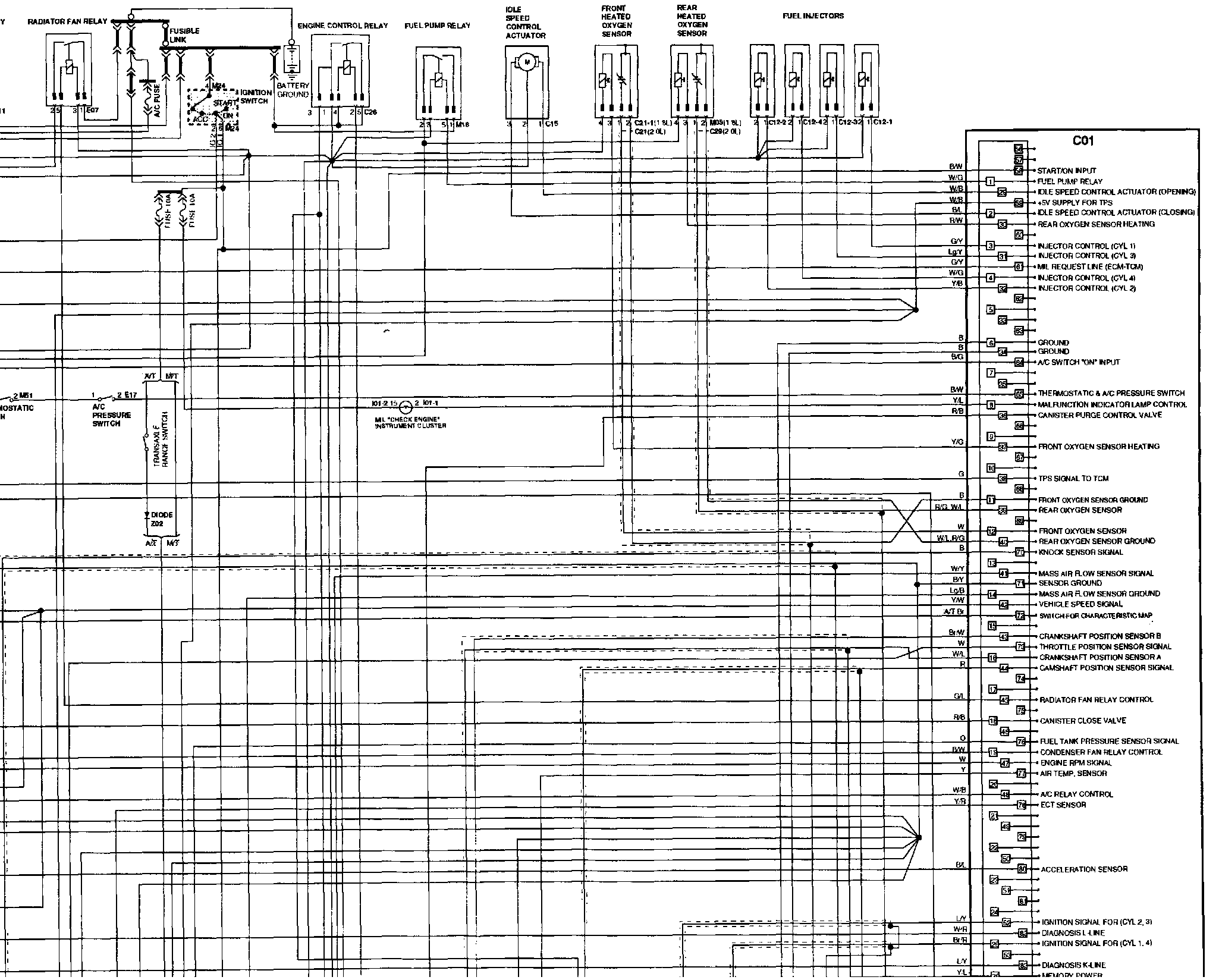

Circuit Diagram

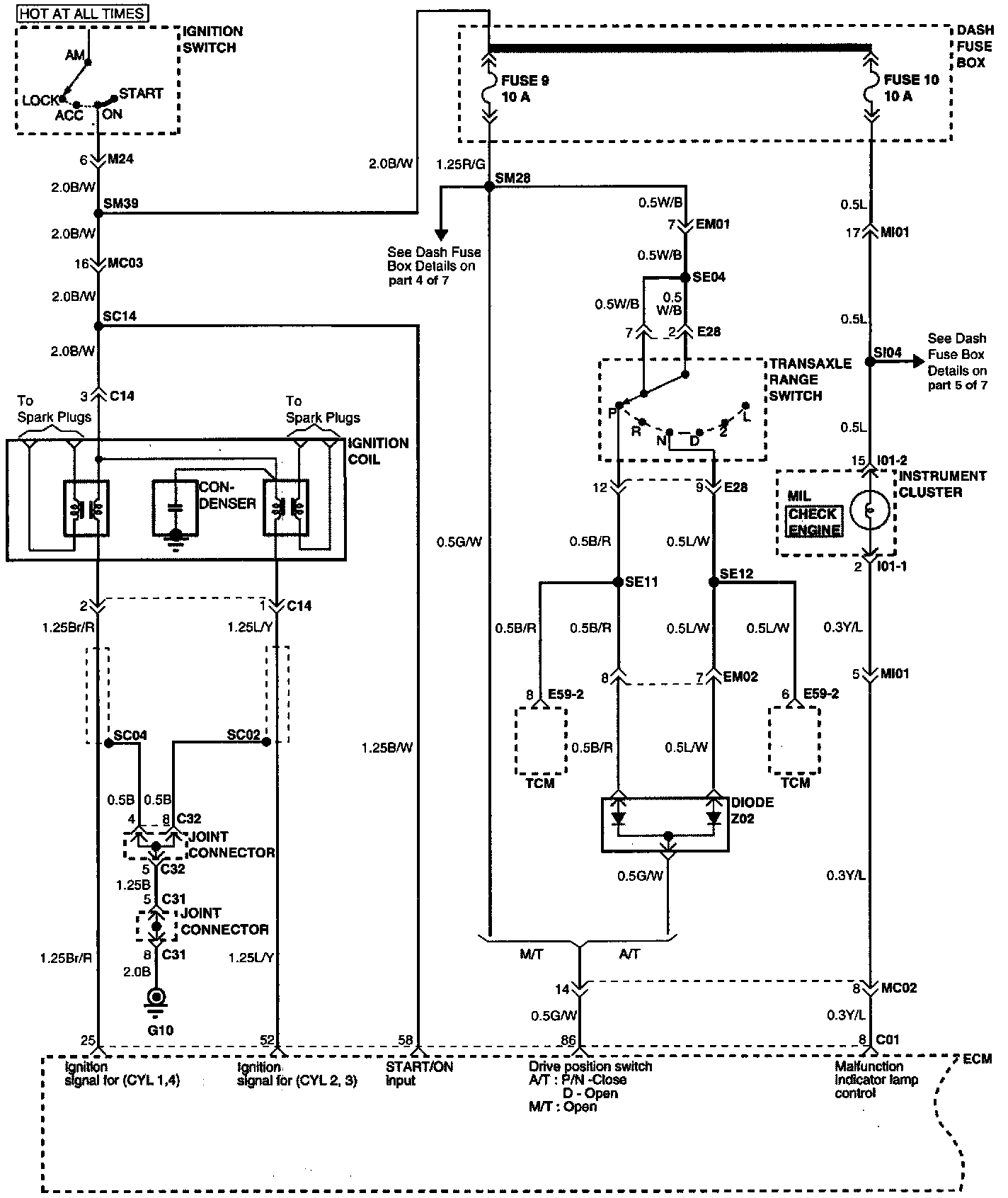

Engine Control System (Part 1 Of 7):

(Part 1 0f 7)
Dash Fuse Box
ECM
Ignition Switch
Ignition Coil
Instrument Cluster
Joint Connector
Transaxle Range Switch
TCM

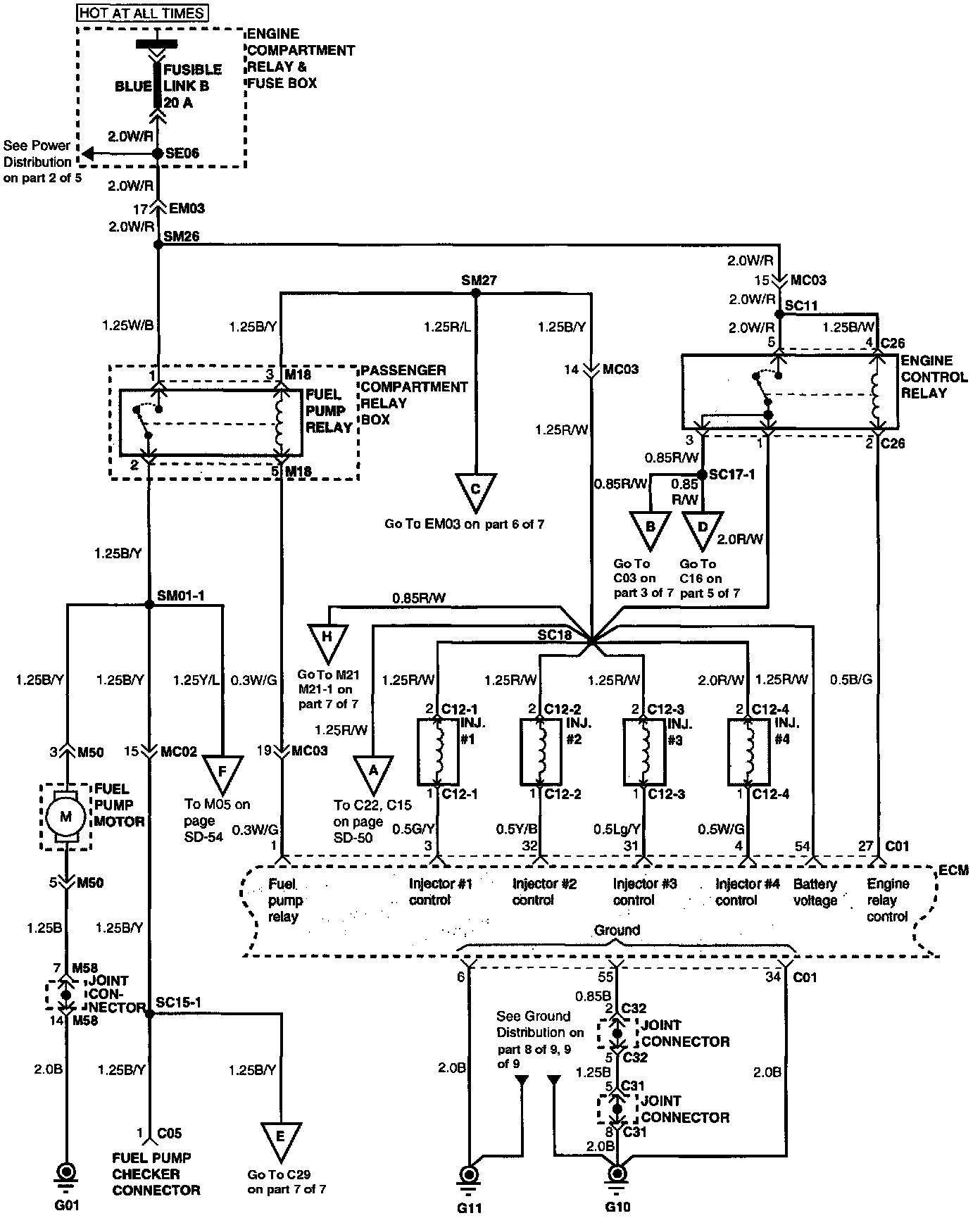

Engine Control System (Part 2 Of 7):

(Part 2 0f 7)
ECM
Engine Control Relay
Engine Compartment Relay & Fuse Box
Fuel Pump Relay
Fuel Pump Motor
Fuel Pump Checker Connector
Joint Connector
Passenger Compartment Relay Box

Engine Control System (Part 3 Of 7):

(Part 3 0f 7)

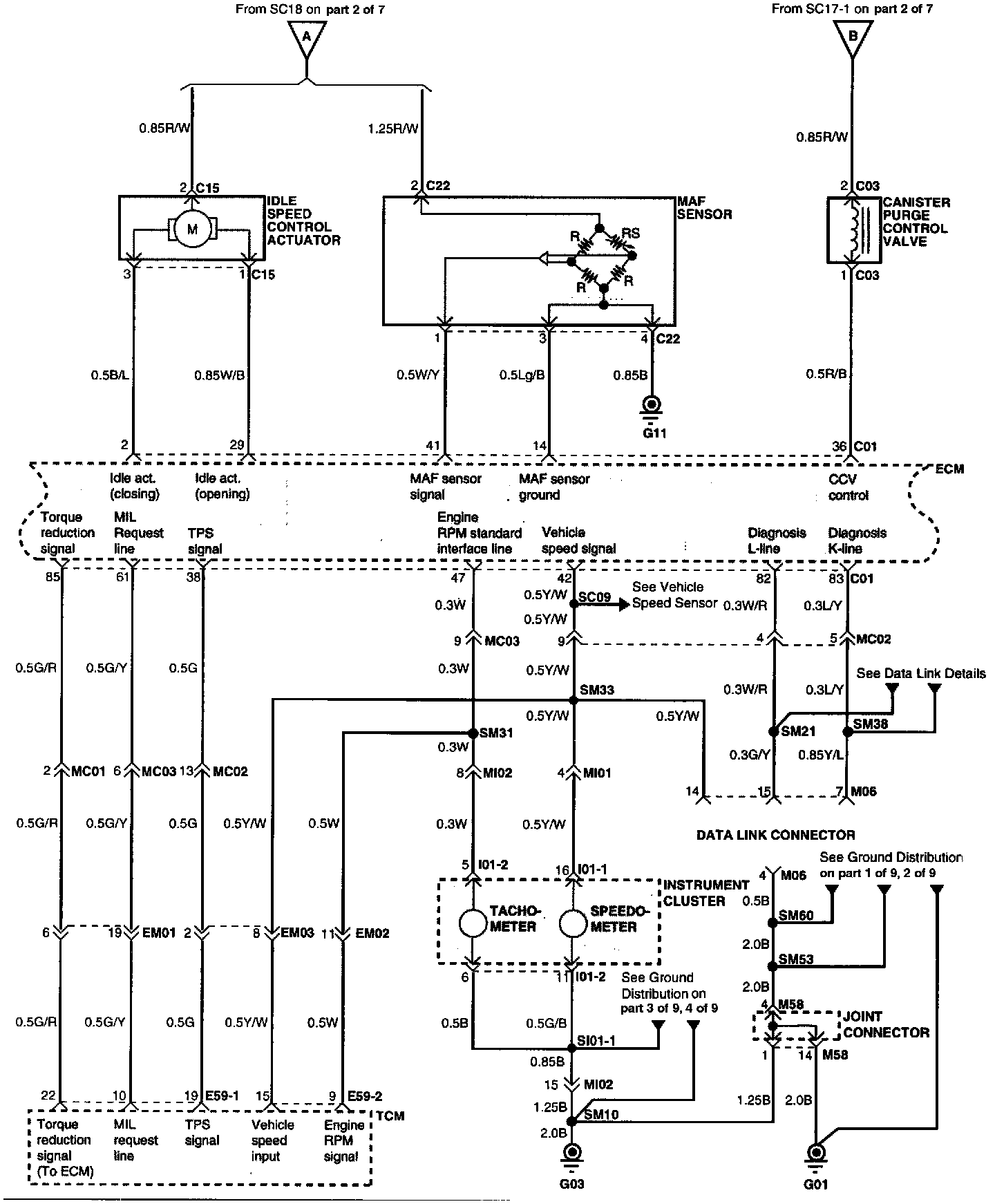

Canister Purge Control Valve
Data Link Connector
ECM
Instrument Cluster
Idle Speed Control Actuator
Joint Connector
MAF Sensor
Speedometer
TCM
Tachometer

Engine Control System (Part 4 Of 7):

(Part 4 0f 7)
Acceleration Sensor
Data Link Connector
ECM
ECT Sensor
Fuel Tank Pressure Sensor
Intake Air Temperature Sensor
Throttle Position Sensor

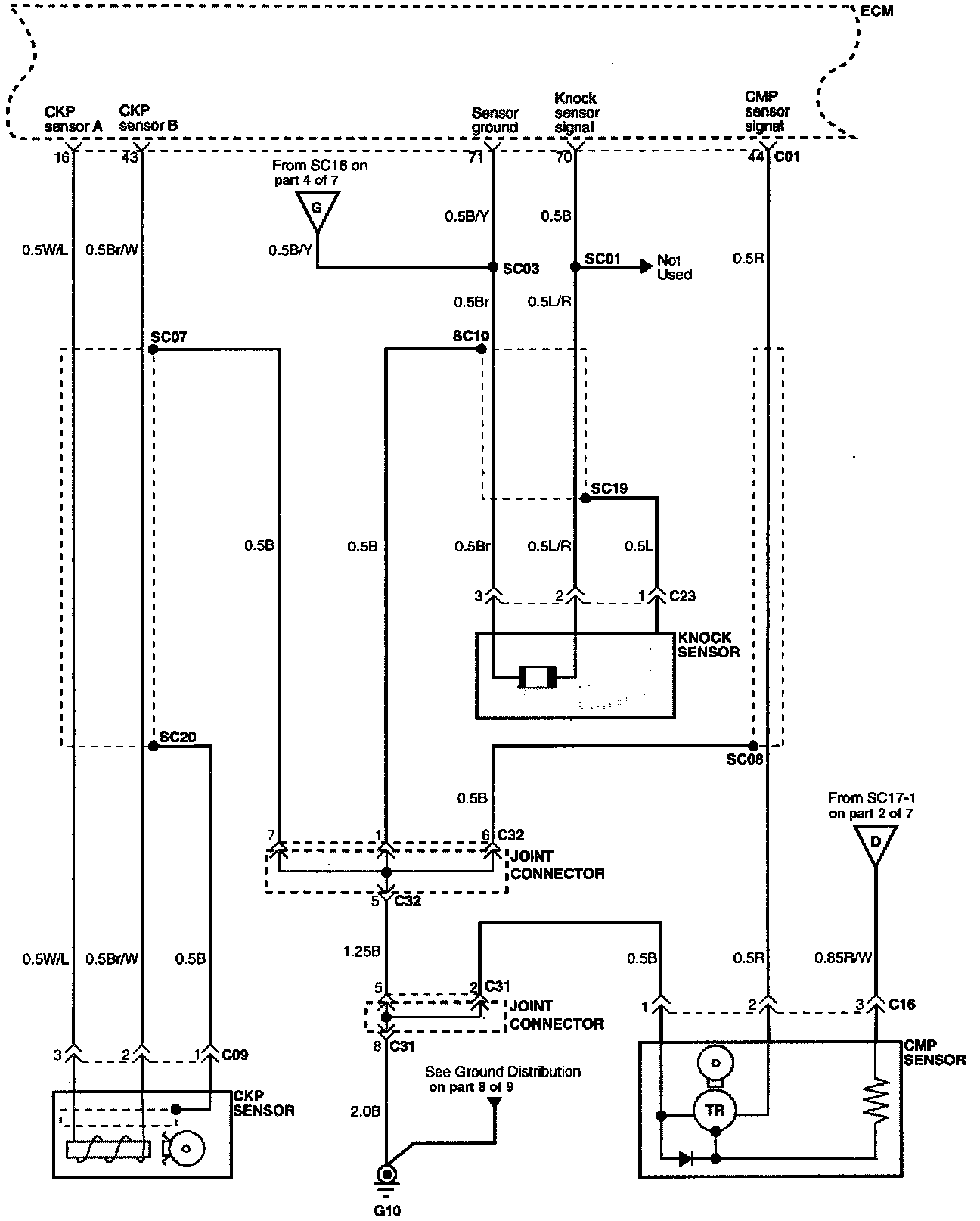

Engine Control System (Part 5 Of 7):

(Part 5 0f 7)
CKP Sensor
CMP Sensor
ECM
Joint Connector
Knock Sensor

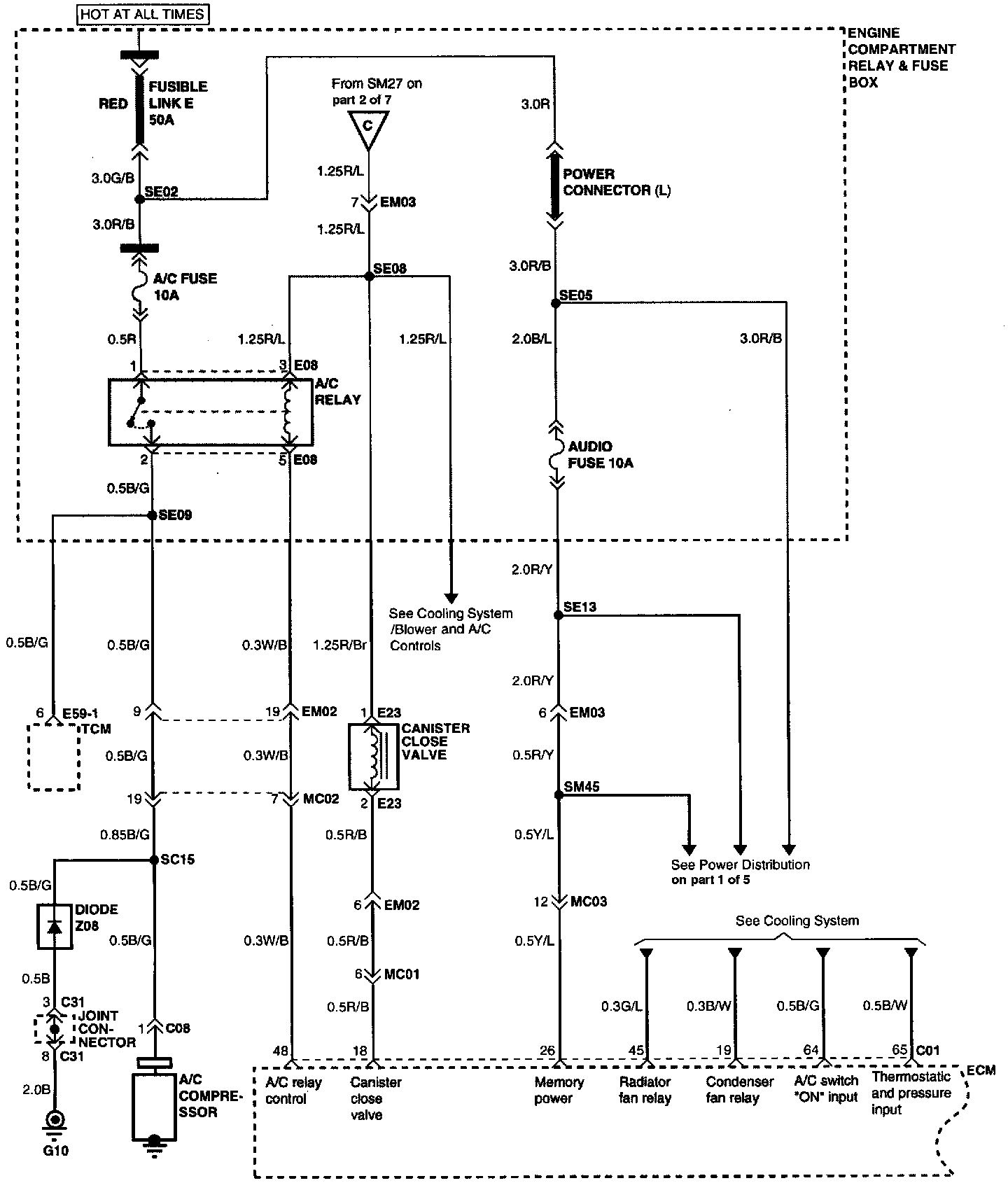

Engine Control System (Part 6 Of 7):

(Part 6 0f 7)
A/C Compressor
Canister Close Valve
ECM
Engine Compartment Relay & Fuse Box
Joint Connector
Power Connector
TCM

Engine Control System (Part 7 Of 7):

(Part 7 0f 7)
ECM
Front Heated Oxygen Sensor
Joint Connector
Rear Heated Oxygen Sensor

Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Connector Views

Connector Locations Are Found In The Locations Section Of Powertrain Management.
Locations
