Rear Door: Service and Repair

Rear Door

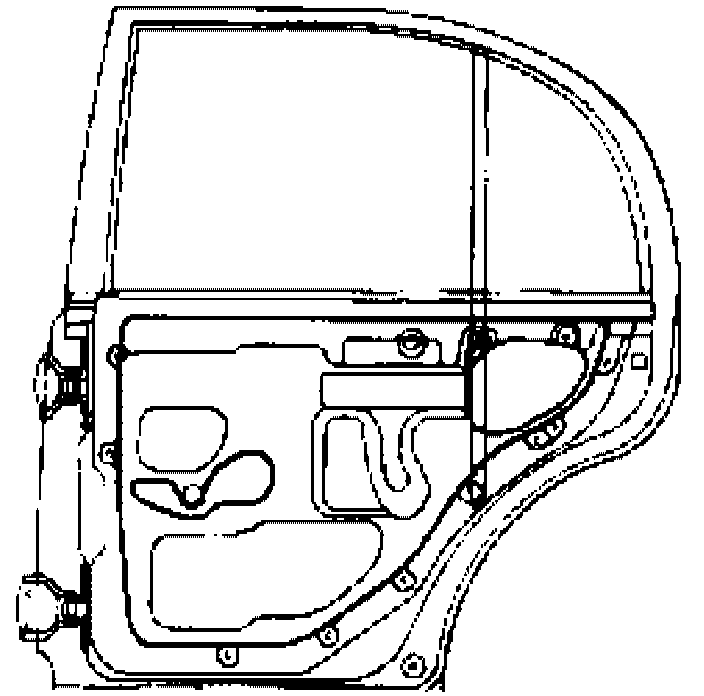

REMOVAL

1. Remove the door window regulator handle and clip using a piece of cloth (Manual type only). Remove the door safety lock knob.

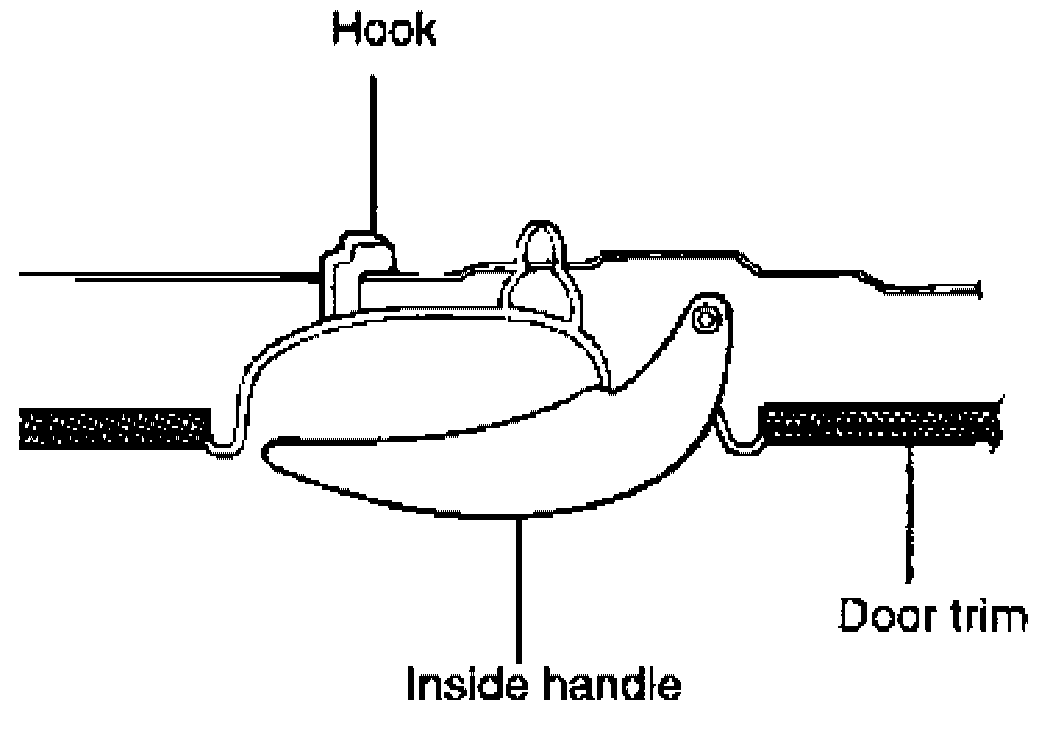

2. Loosen the inside handle mounting screw and then push the inside handle toward the door hinge. Separate the inside handle from the door trim.





3. Remove the following items in order.

(1) Safety lock knob.
(2) Arm rest.

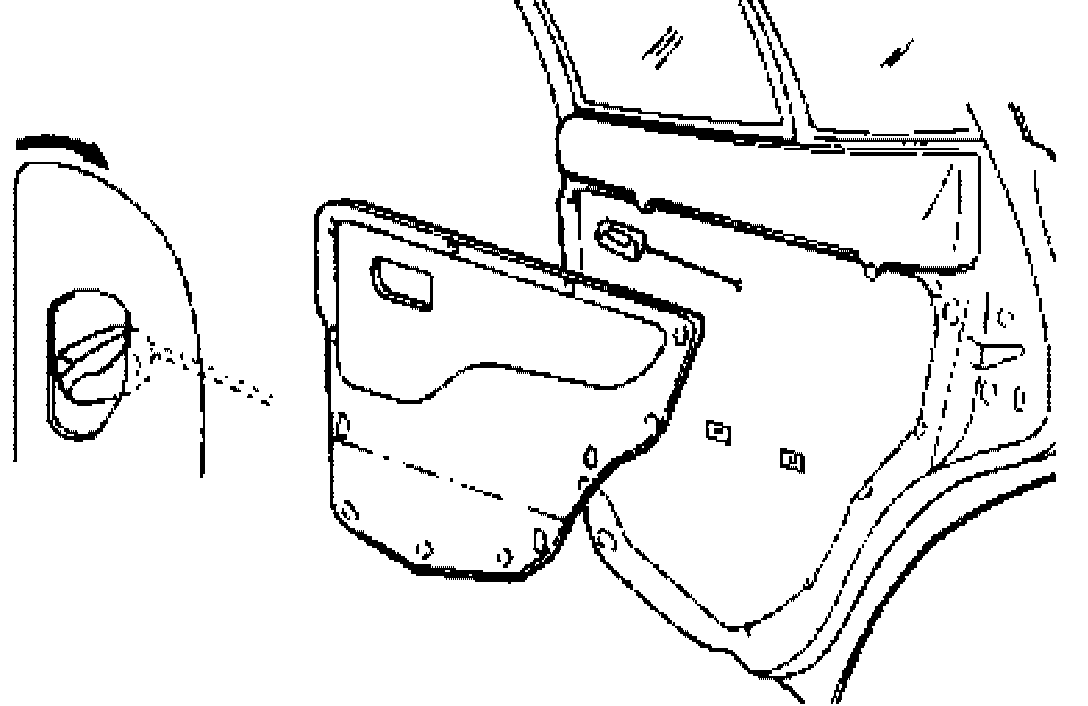

4. Insert a screwdriver between the trim fasteners and the door panel to pry it loose. Disconnect the electrical connectors.





5. Remove the door trim seal.





6. Remove the rear door outside belt weatherstrip.

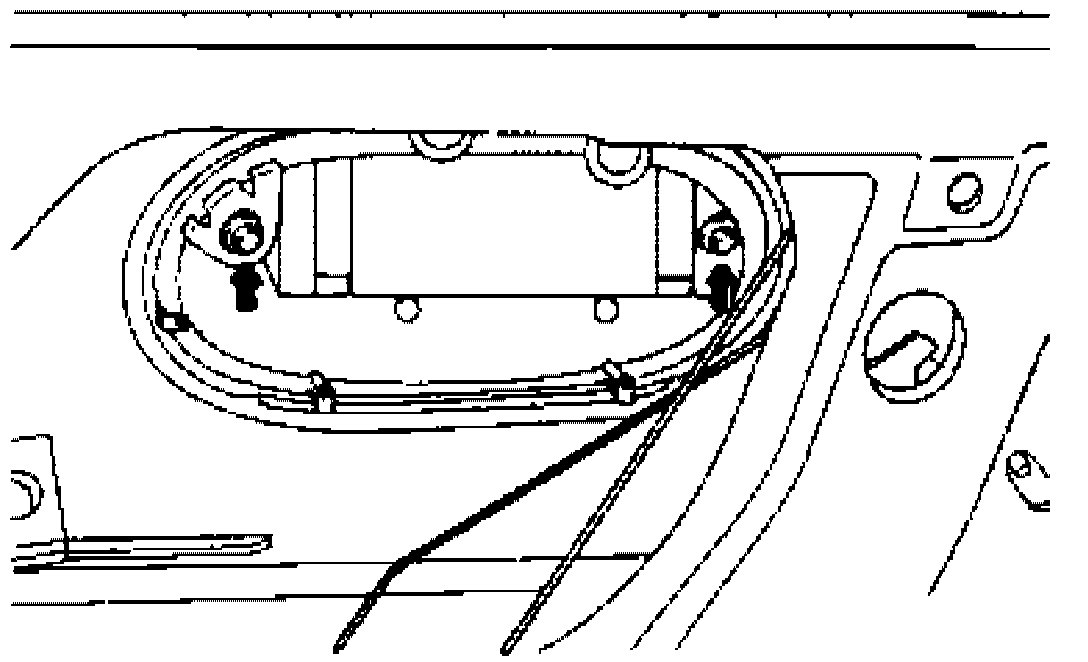

7. Remove the carrier plate bolts from the regulator channel.

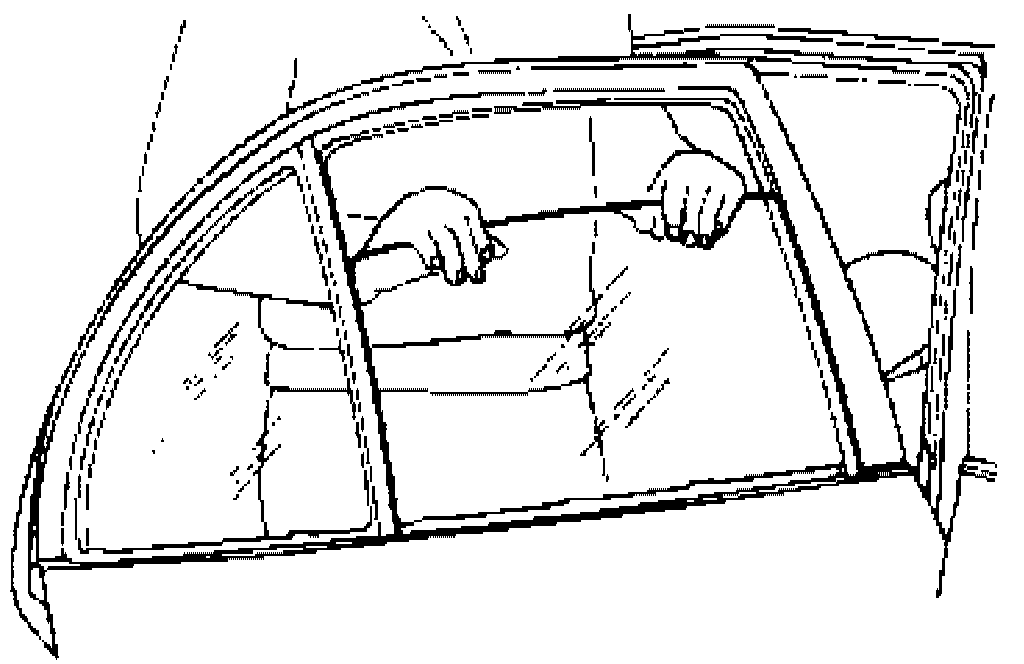

8. Remove the door glass.

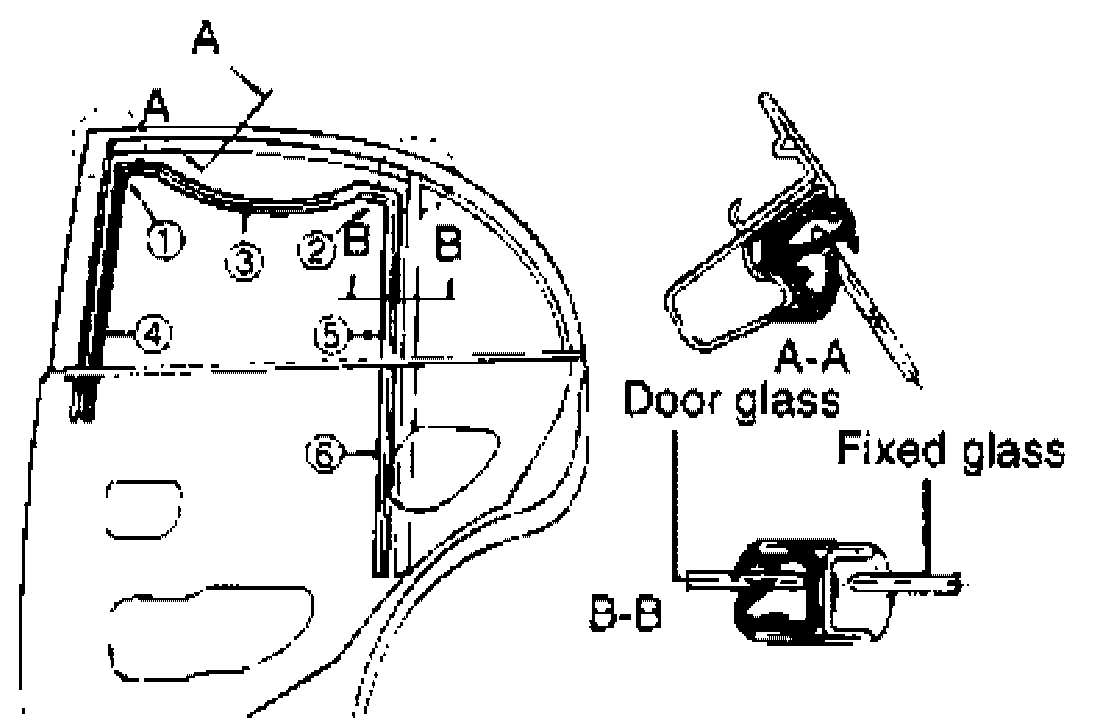

9. Remove the door glass run. (Installing procedure : 1-2-3-4-5-6).

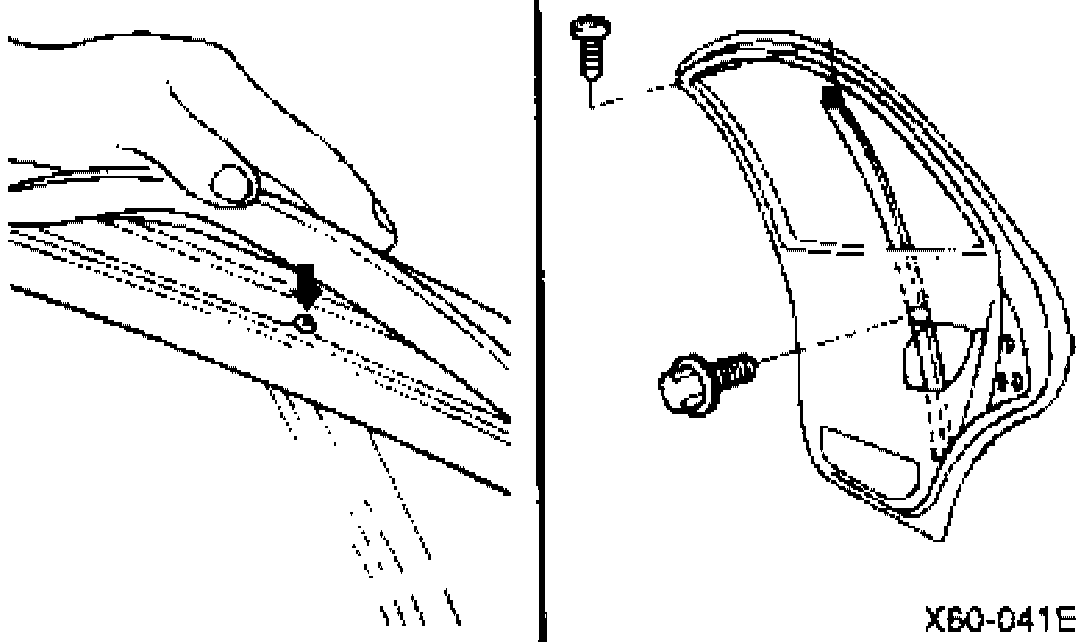

10. Remove the fixing screws and the bolts of the division channel. Remove the division channel.

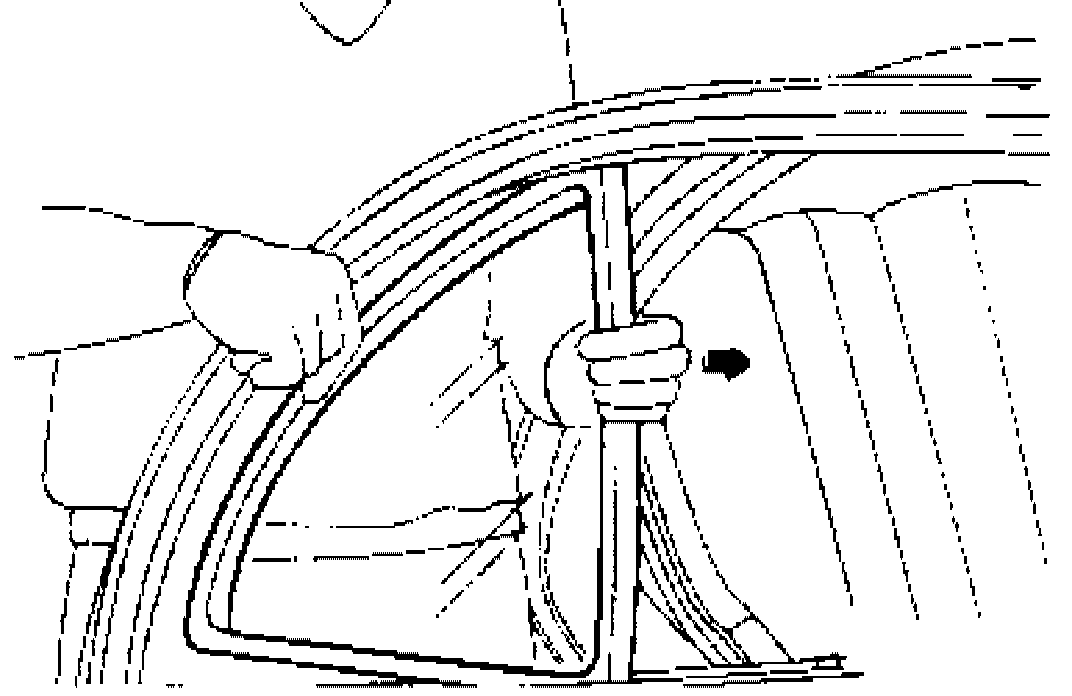

11. Remove the fixed glass.

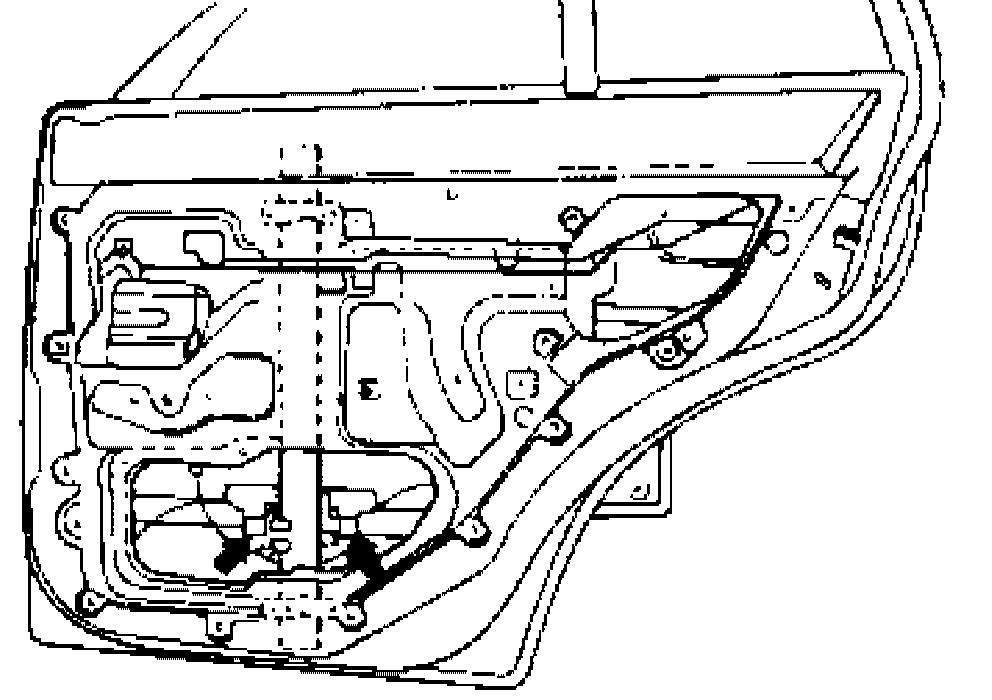

12. Remove the door regulator channel mounting nuts and then remove the door regulator assembly. Remove the inside handle from the rod.





13. Remove the safety lock rod mounting screw, and then remove the rod from the latch assembly.





14. Remove the door latch and door lock actuator.





15. Remove the outside handle mounting bolts.





INSTALLATION

1. Installation is the reverse of the removal procedure. When installing the door trim seal, butyl tape should not be placed over the door trim fastener mounting area.
