Home >> Hyundai >> 1999 >> Accent GL Sedan L4-1495cc 1.5L SOHC MFI >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Intake Manifold

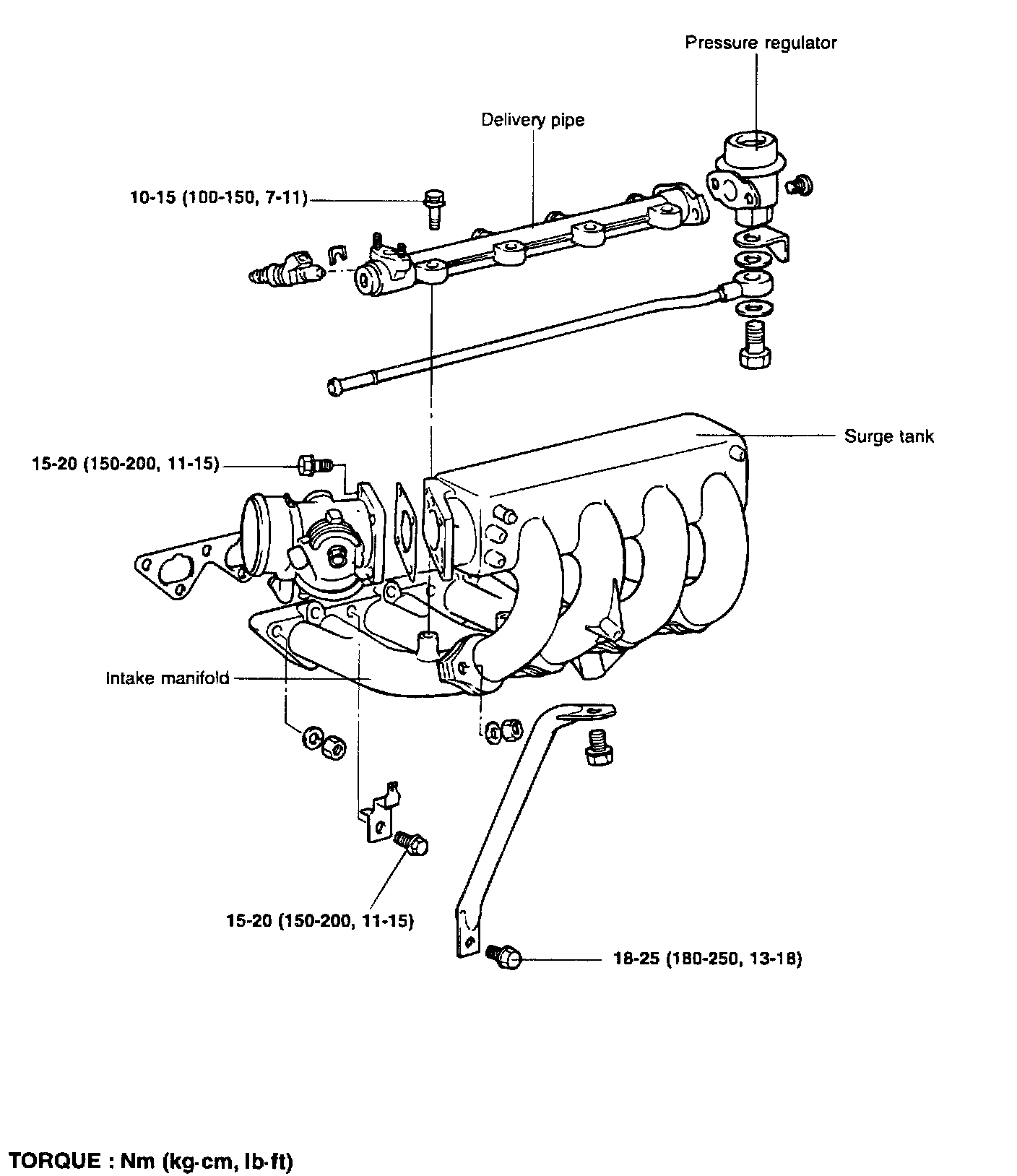

Intake Manifold





SURGE TANK OVERHAUL W/ RELATED COMPONENTS
