Shift Interlock, A/T

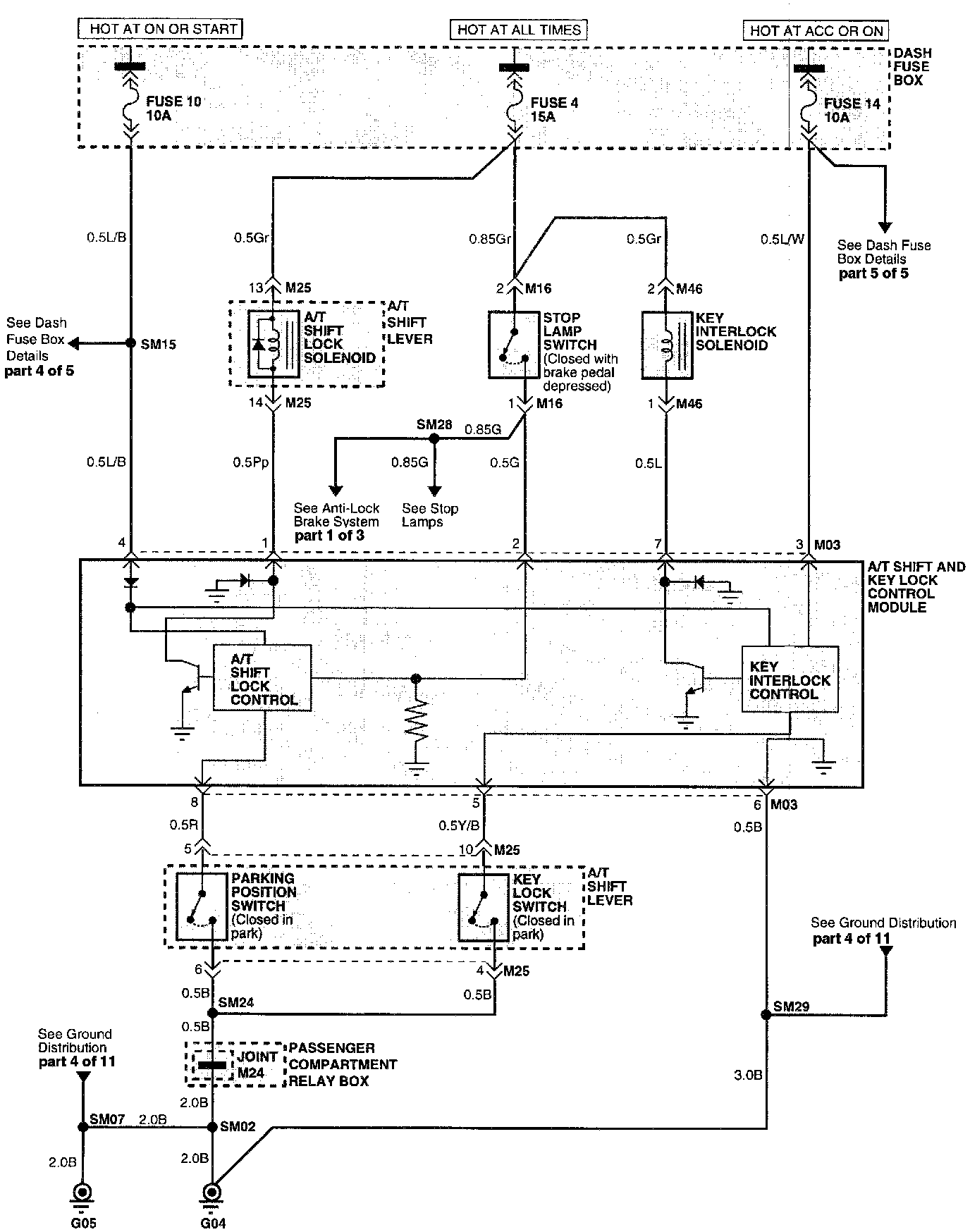

Electrical Diagram

Connector Configurations Are Found In The Diagram Section Of The Vehicle.


Connector Locations Are Found In The Locations Section Of The Shift Interlock.
Locations
