Fuse Block

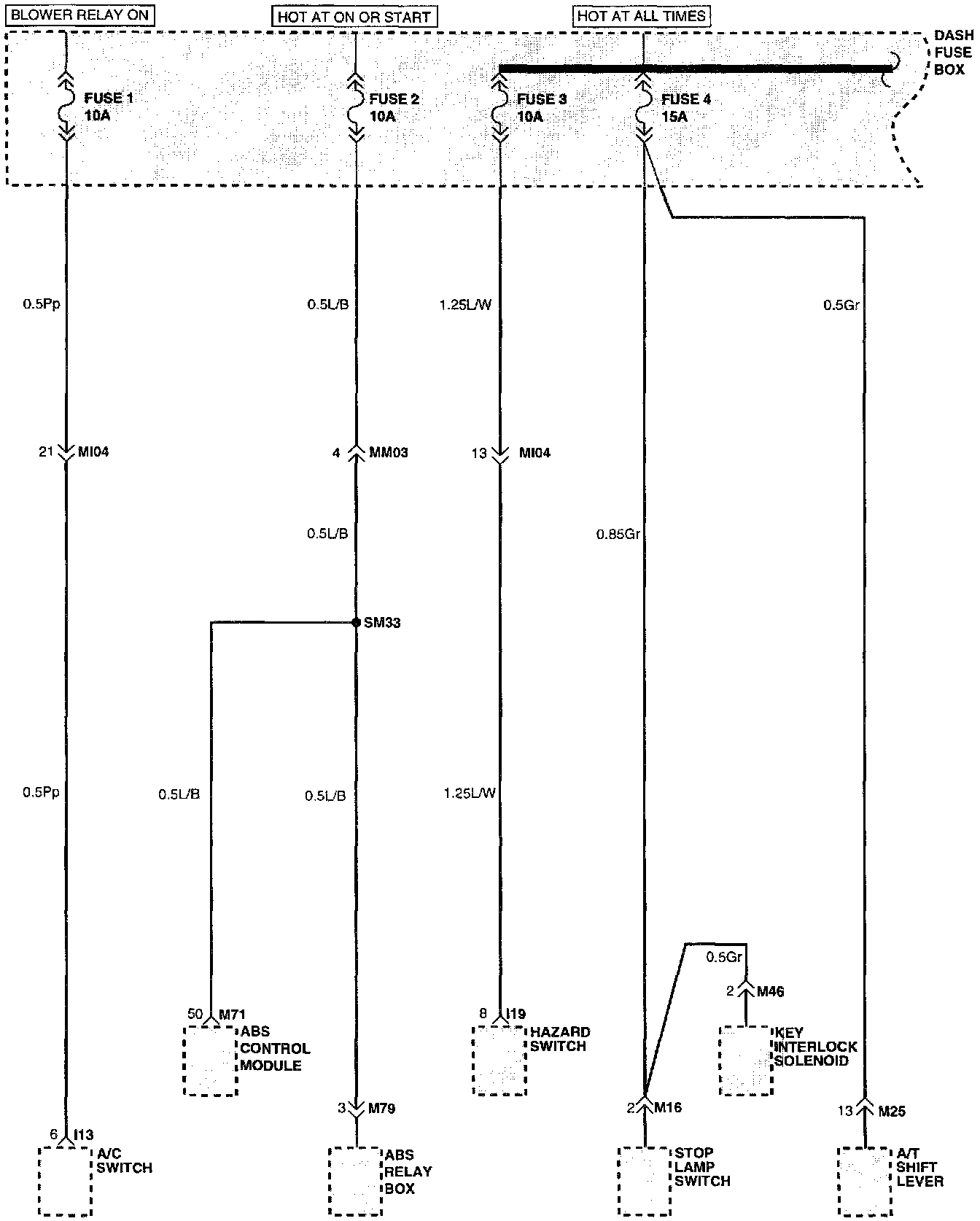

Dash Fuse Box Details (Part 1 Of 5):

(Part 1 Of 5)
A/C Switch
ABS Control Module
ABS Relay Box
A/T Shift Lever
Dash Fuse Box
Key Interlock Solenoid
Hazard Switch
Stop Lamp Switch

Dash Fuse Box Details (Part 2 Of 5):

(Part 2 Of 5)
Audio
Courtesy Lamp
Dash Fuse Box
Data Link Connector
Digital Clock
Door Warning Switch
ECM
Instrument Cluster
Rear Defogger Timer
TCM
Trunk Lamp

Dash Fuse Box Details (Part 3 Of 5):

(Part 3 Of 5)
A/T Shift Lever
Blower Relay
Dash Fuse Box
Front Washer Motor
Head Lamp Relay
Intermittent Wiper Timer
Power Window Relay
Rear Washer Motor
Rear Wiper Motor
Wiper Motor

Dash Fuse Box Details (Part 4 Of 5):

(Part 4 Of 5)
A/T And Key Lock Control Module
Back Up Lamp Switch
Dash Fuse Box
Fresh/Recirc Switch & Heater Control Panel Ill.
Hazard Switch
Instrument Cluster
Seat Belt Timer
SRS Control Module
TCM
Transaxle Range Switch

Dash Fuse Box Details (Part 5 Of 5):

(Part 5 Of 5)
Audio
A/T And Key Lock Control Module
Cigarette Lighter
Digital Clock
Dash Fuse Box
Power Door Mirror Switch

Connector Configurations Are Found In The Diagram Section Of The Vehicle.


Connector Locations Are Found In The Locations Section Of The Fuse Block.
