Vehicle Speed Sensor

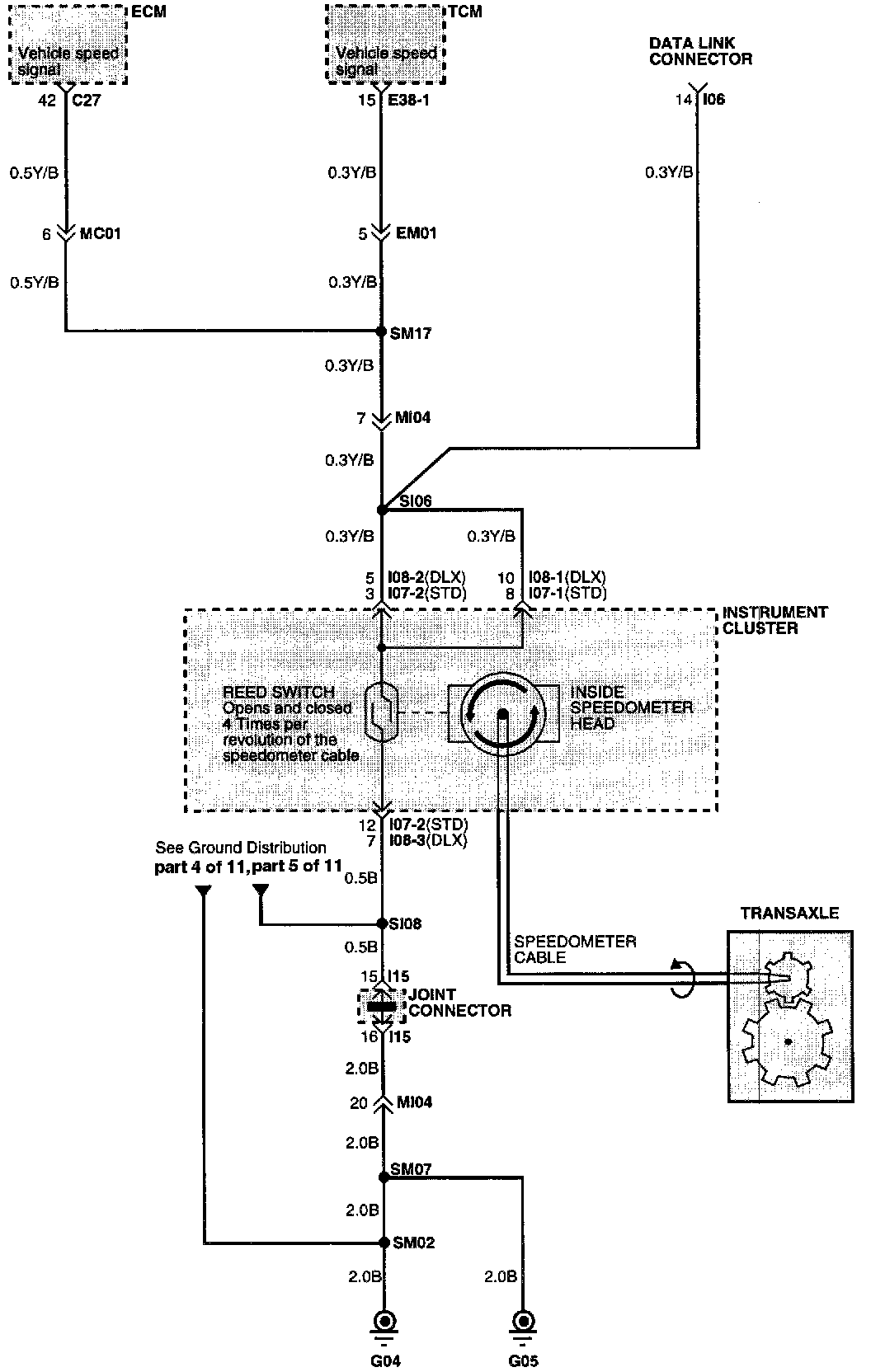

Electrical Diagram

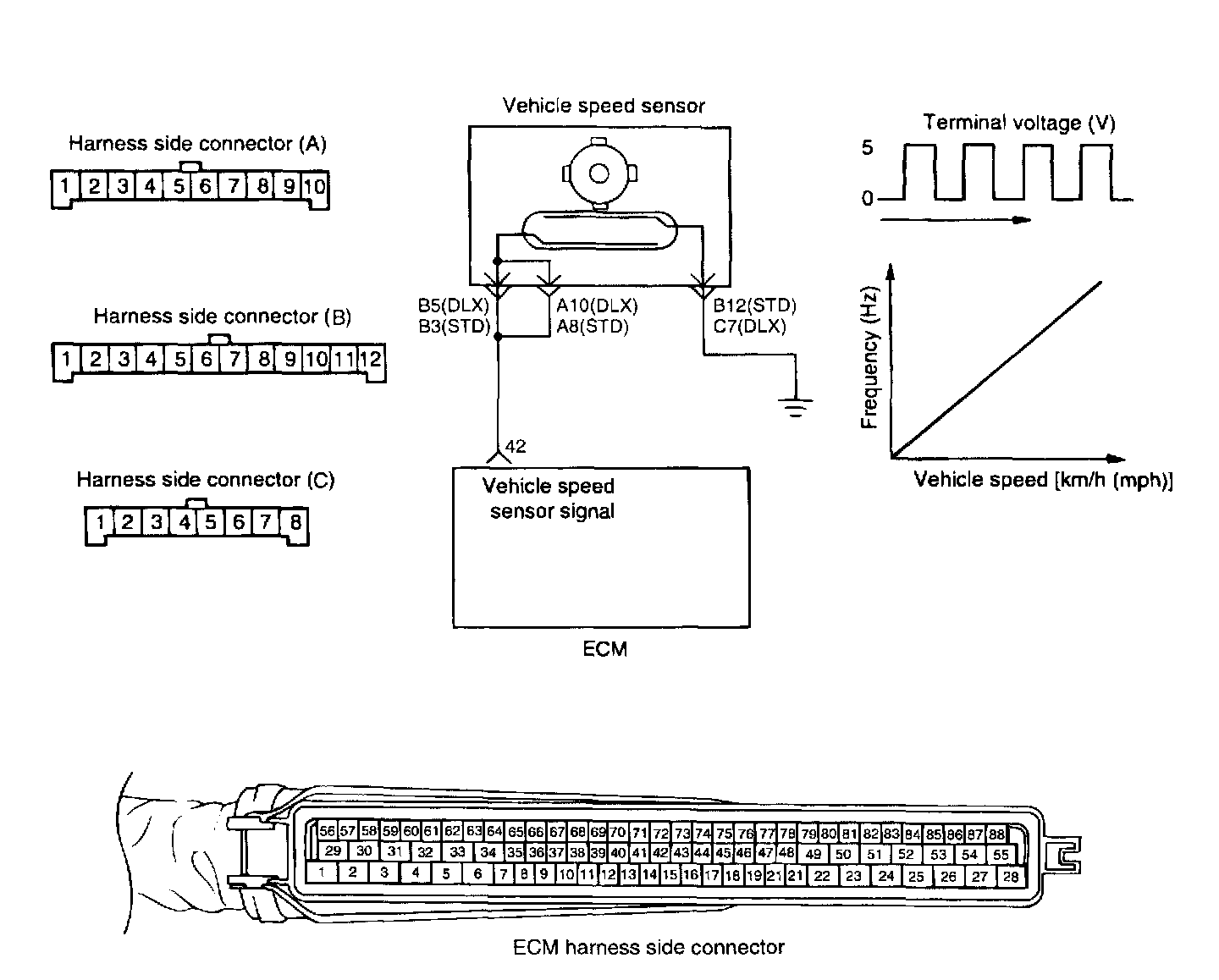

Connector Configurations Are Found In The Diagram Section Of The Vehicle.


Connector Locations Are Found In The Locations Section Of The Vehicle Speed Sensor.
Locations
