Engine Block

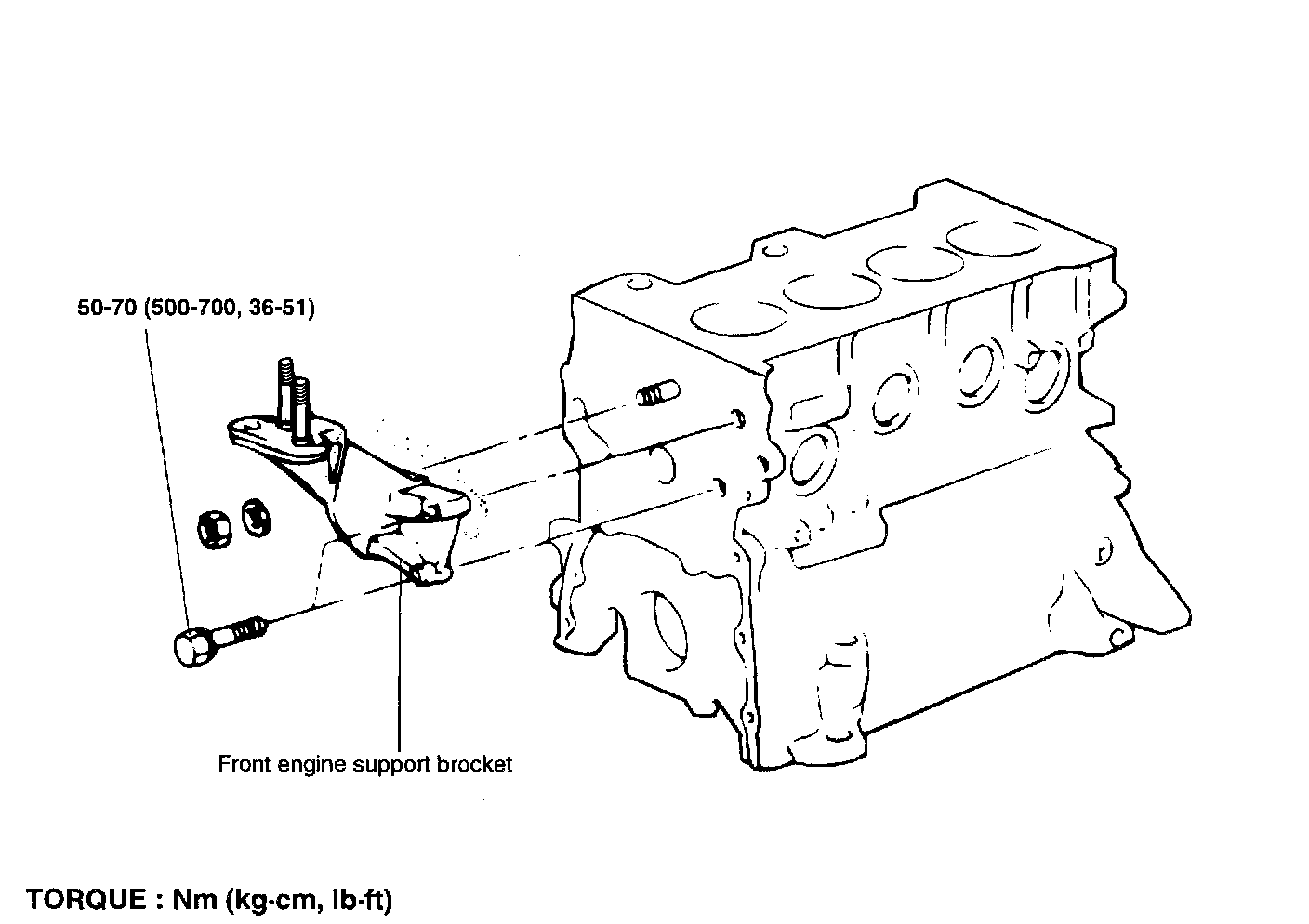

CYLINDER BLOCK OVERHAUL W/ RELATED COMPONENTS

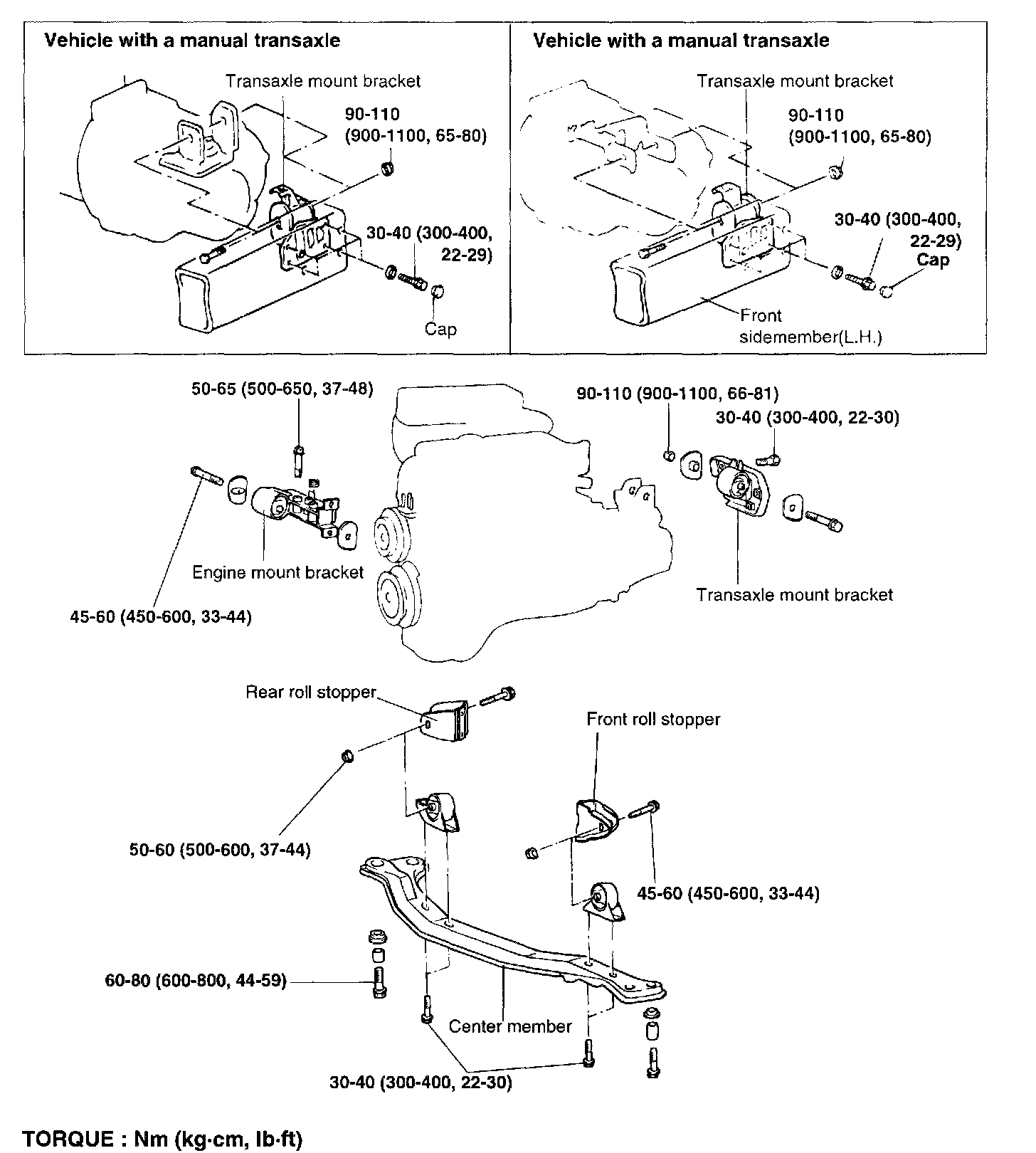

ENGINE MOUNTS OVERHAUL W/ RELATED COMPONENTS

ENGINE MOUNTS INSPECTION ITEMS

FRONT CASE, OIL PUMP OVERHAUL W/ RELATED COMPONENTS
