Main Moving System

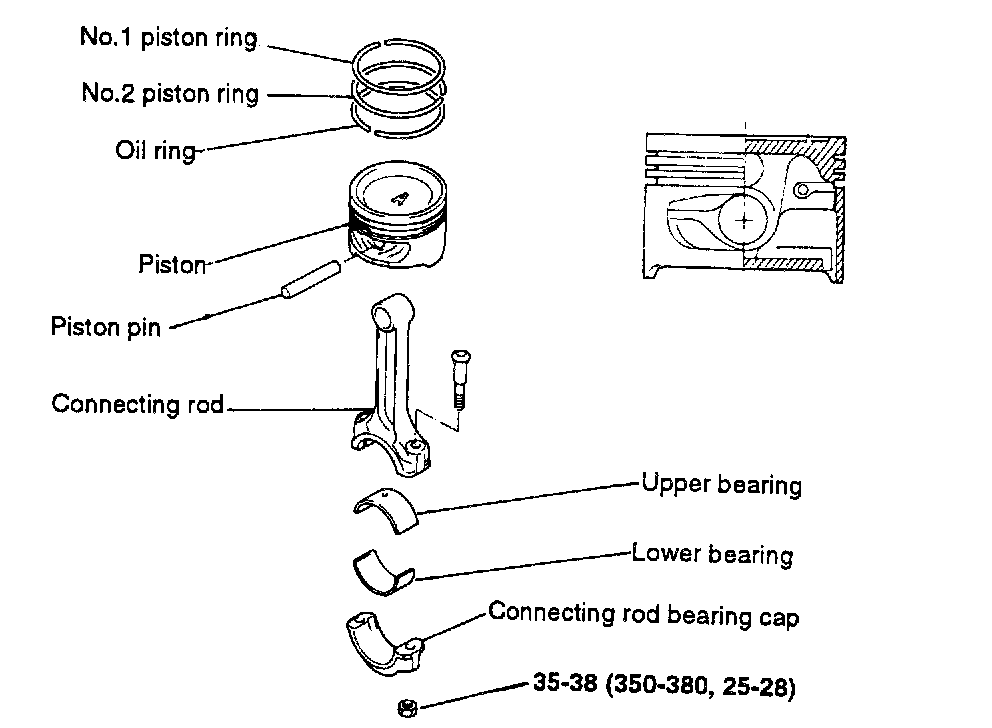

CONNECTING ROD OVERHAUL W/ RELATED COMPONENTS

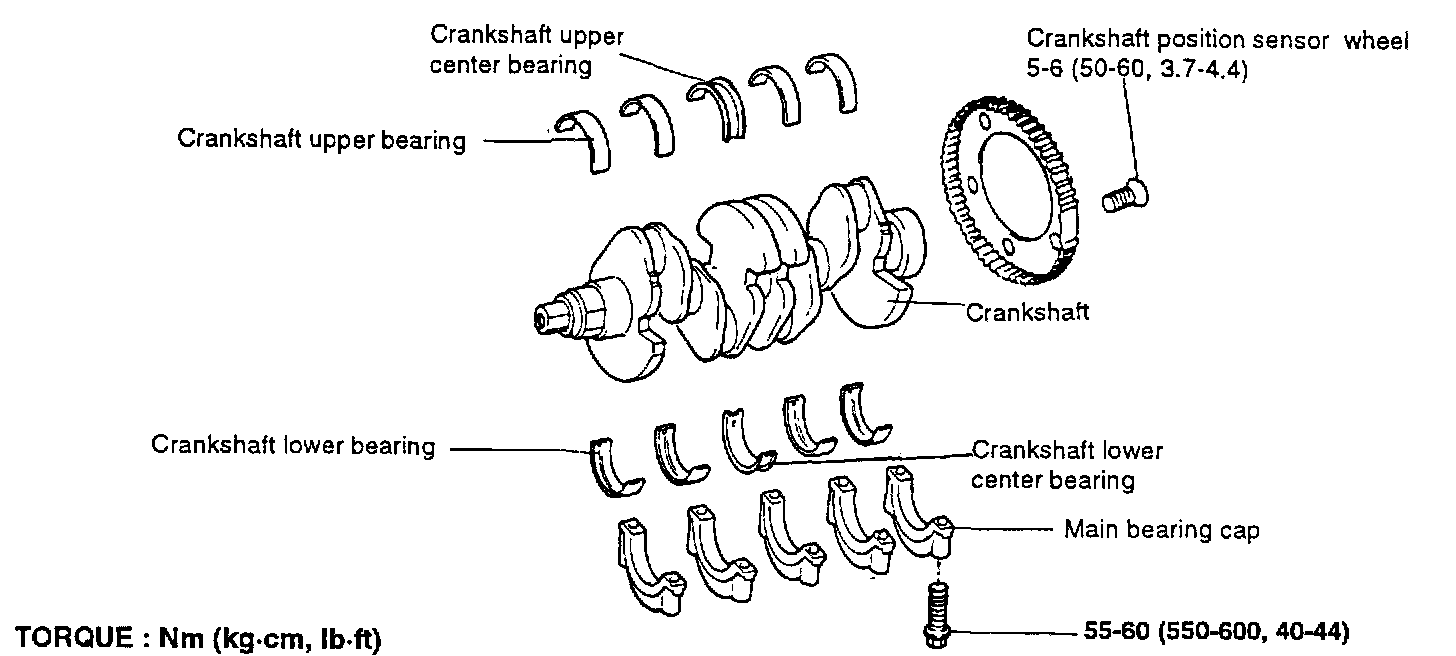

CRANKSHAFT OVERHAUL W/ RELATED COMPONENTS

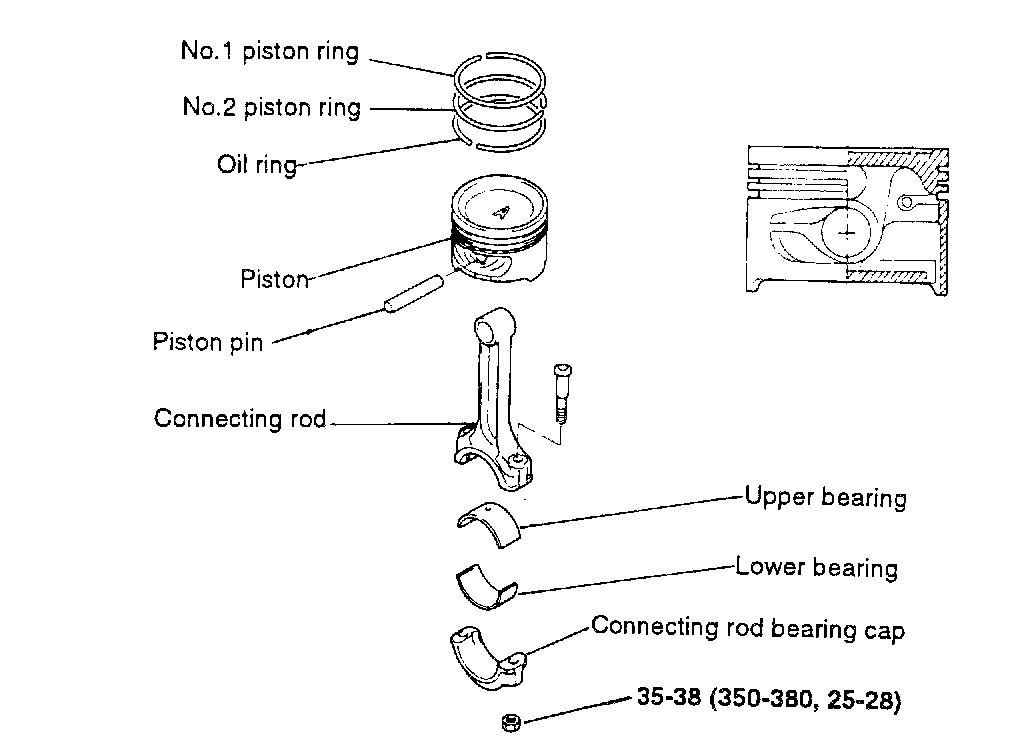

PISTON AND PISTON PIN REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
