Cylinder Head Assembly





CAMSHAFT OVERHAUL W/ RELATED COMPONENTS

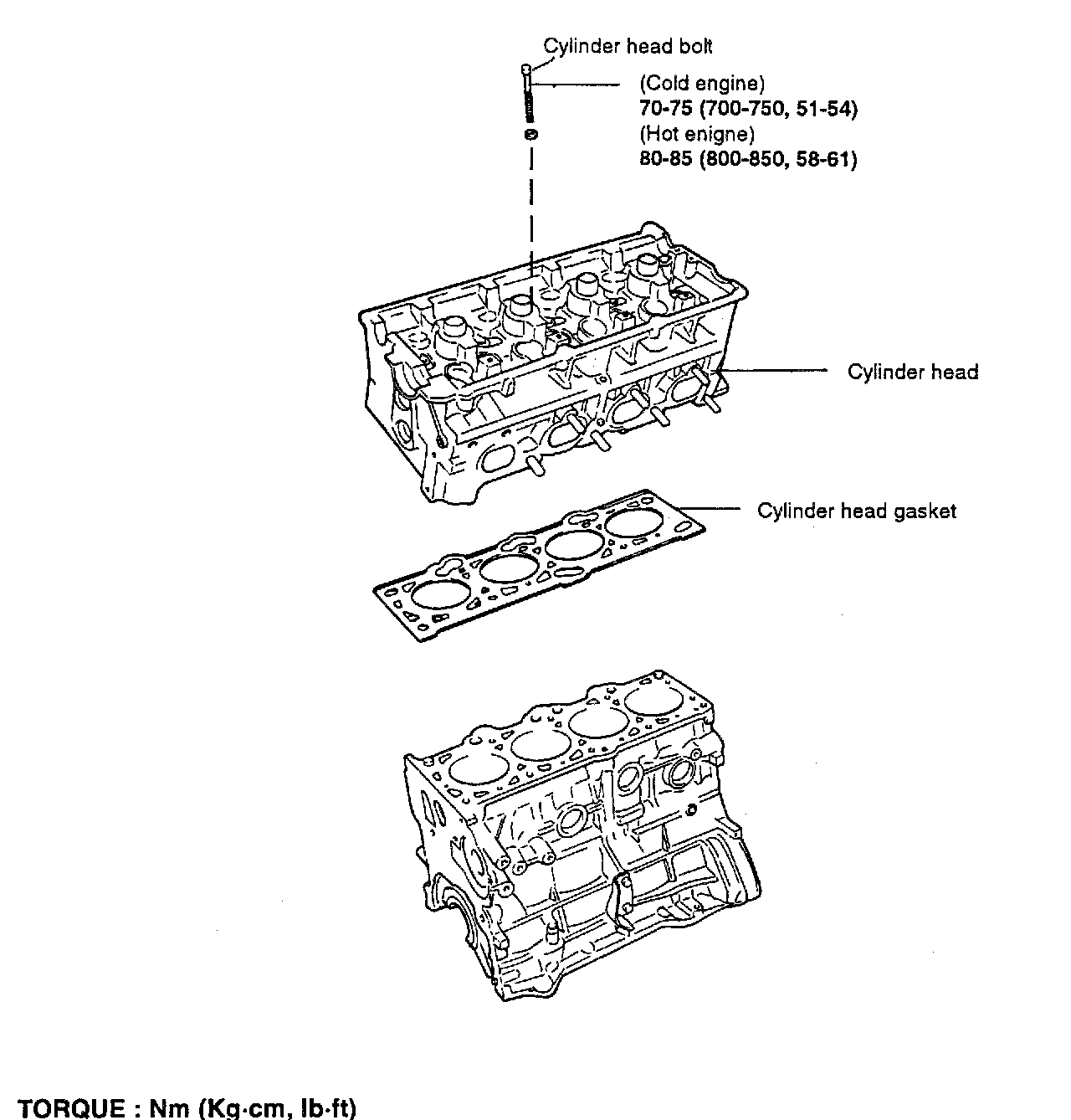

CYLINDER HEAD OVERHAUL W/ RELATED COMPONENTS





ROCKER ARM ASSEMBLY

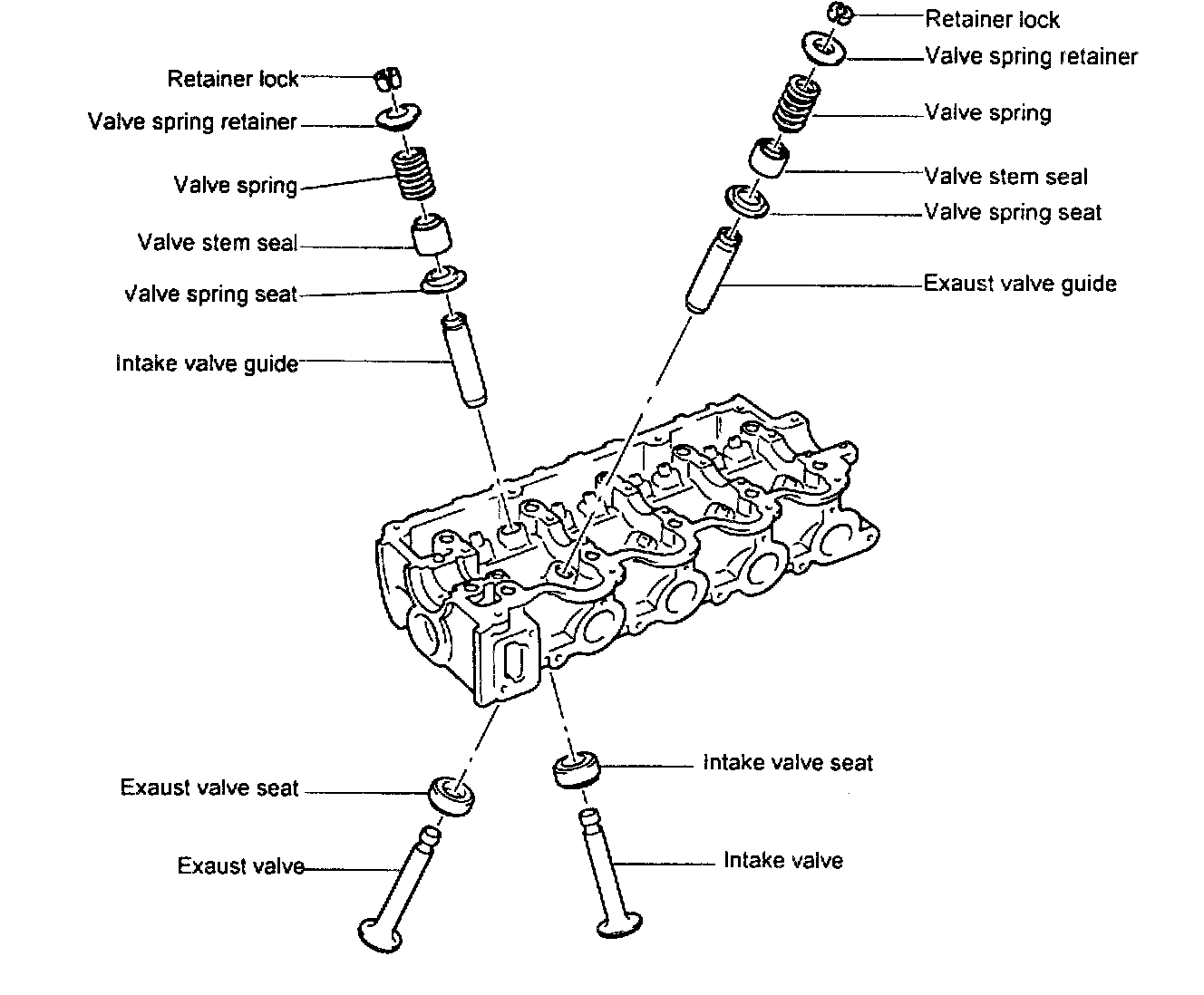

VALVES OVERHAUL W/ RELATED COMPONENTS
