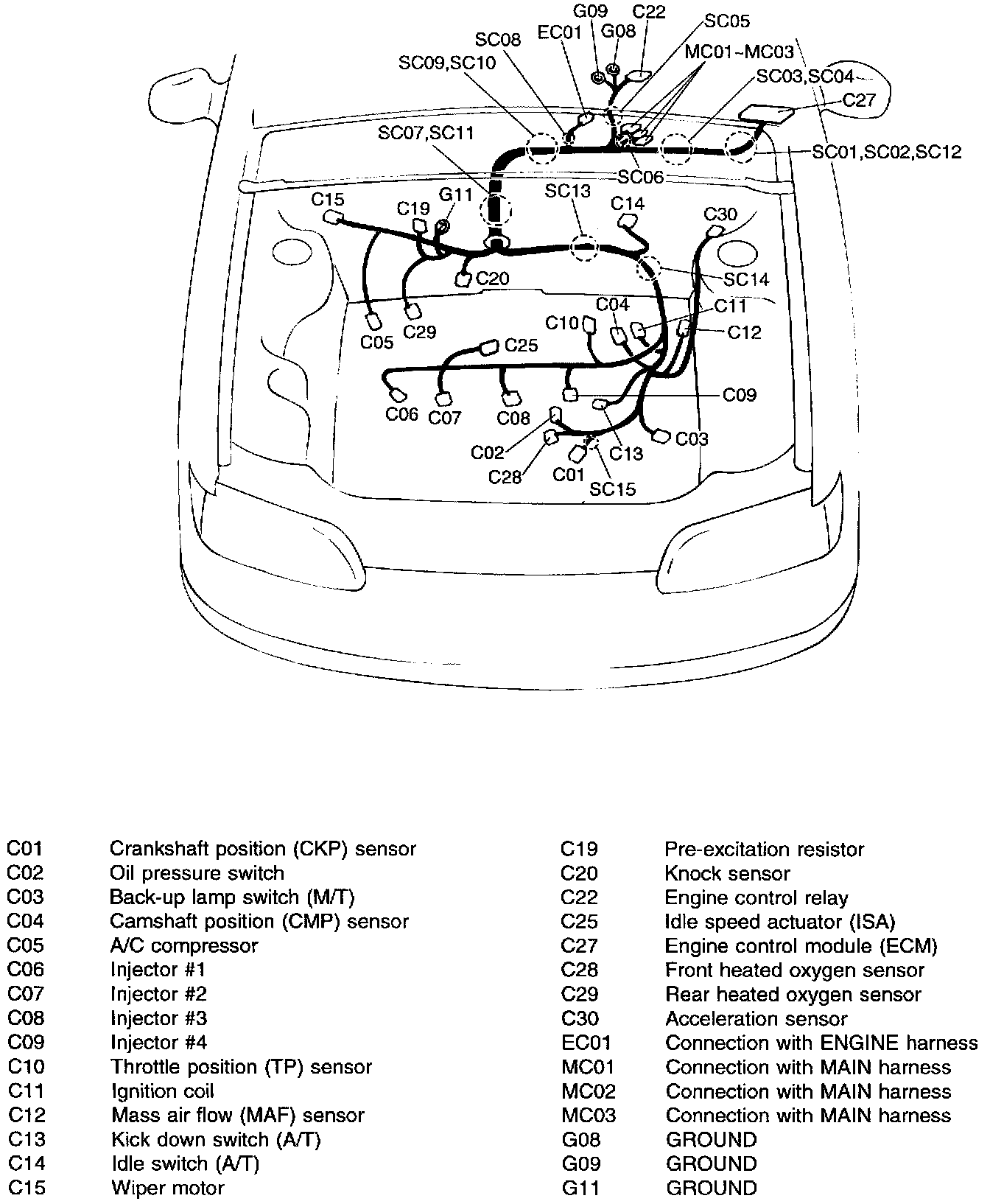

Control Harness

C01 Crankshaft position (CKP) sensor
C02 Oil pressure switch
C03 Back-up lamp switch (M/T)
C04 Camshaft position (CMP) sensor
C05 A/C compressor
C06 Injector #1
C07 Injector #2
C08 Injector #3
C09 Injector #4
C10 Throttle position (TP) sensor
C11 Ignition coil
C12 Mass air flow (MAF) sensor
C13 Kick down switch (A/T)
C14 Idle switch (A/T)
C15 Wiper motor
C19 Pre-excitation resistor
C20 Knock sensor
C22 Engine control relay
C25 Idle speed actuator (ISA)
C27 Engine control module (ECM)
C28 Front heated oxygen sensor
C29 Rear heated oxygen sensor
C30 Acceleration sensor
EC01 Connection with ENGINE harness
MC01 Connection with MAIN harness
MC02 Connection with MAIN harness
MC03 Connection with MAIN harness
G08 GROUND
G09 GROUND
G11 GROUND
