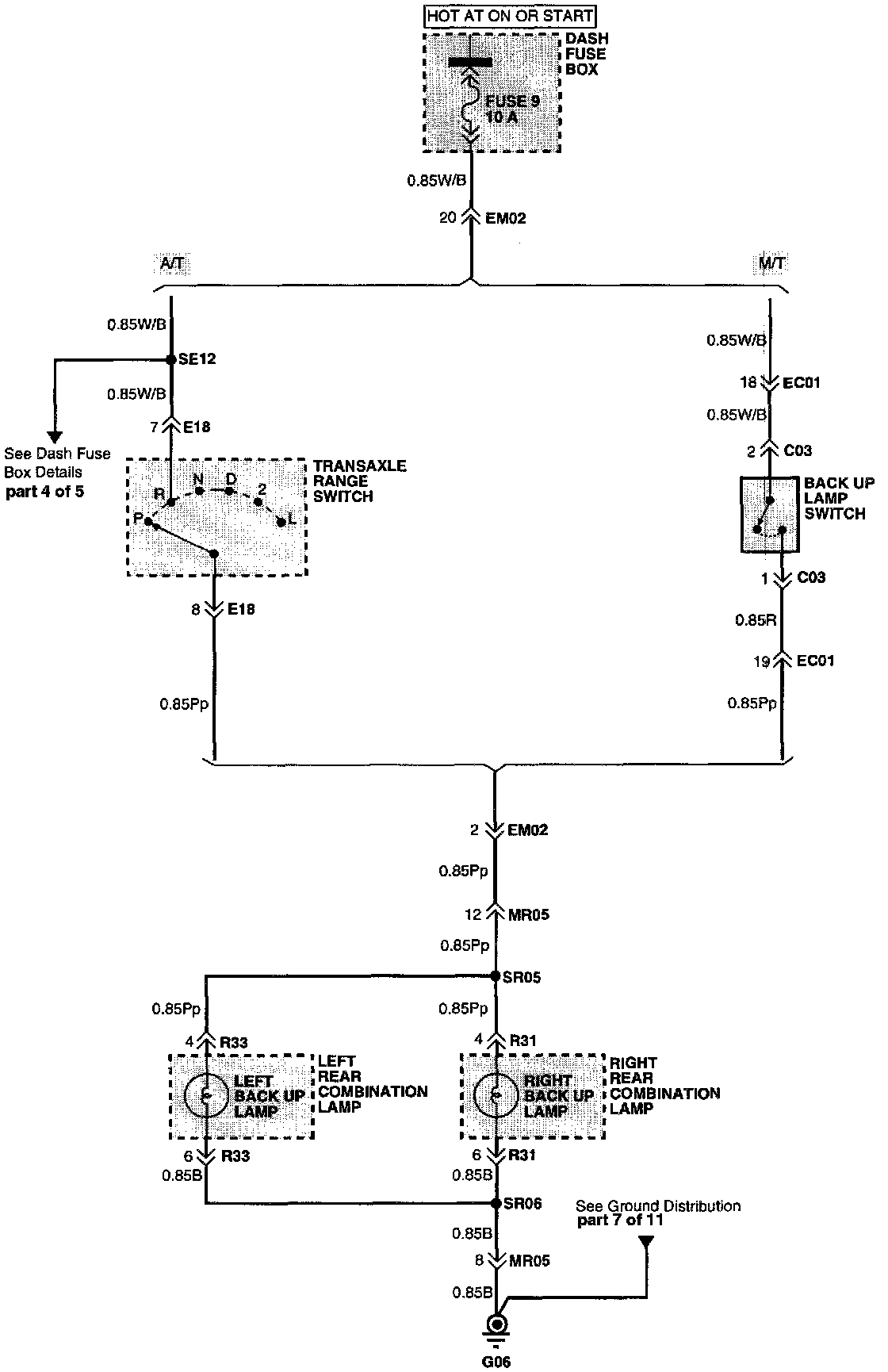

Electrical Diagrams





Connector Configurations Are Found In The Diagram Section Of The Vehicle.


Connector Locations Are Found In The Locations Section Of The Backup Lamp.
Locations
