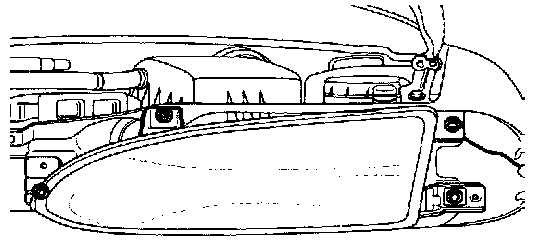

Headlamp: Service and Repair







1. Remove the front turn signal lamp.
2. Disconnect the headlamp connector.
3. Remove the head lamp.
4. Installation is the reverse order of removal procedure.
