Electrical Diagrams

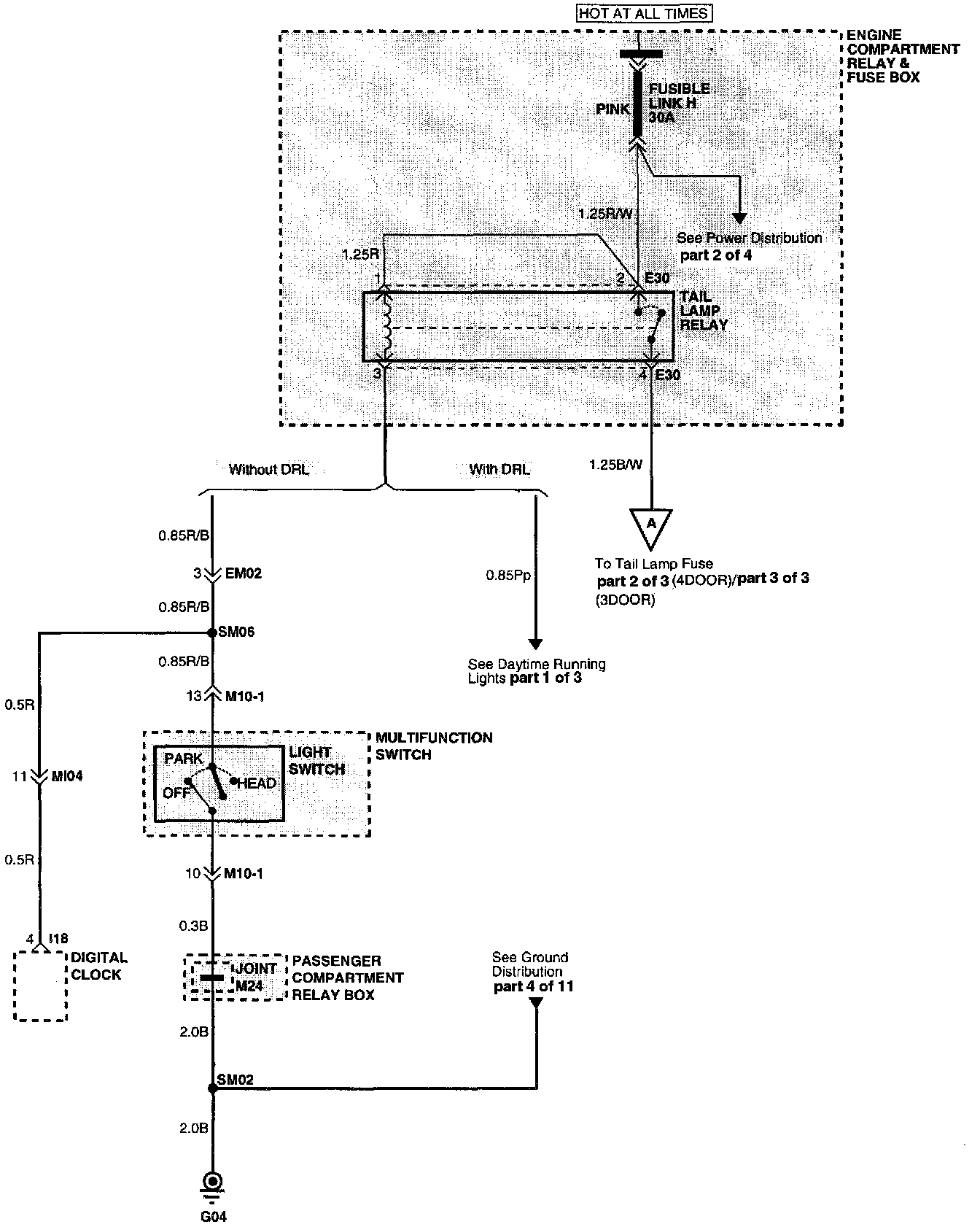

Tail, Parking And License Lamps (Part 1 Of 3):

(Part 1 Of 3)
Digital Clock
Engine Compartment Relay & Fuse Box
Multifunction Switch
Passenger Compartment Relay Box
Tail Lamp Relay

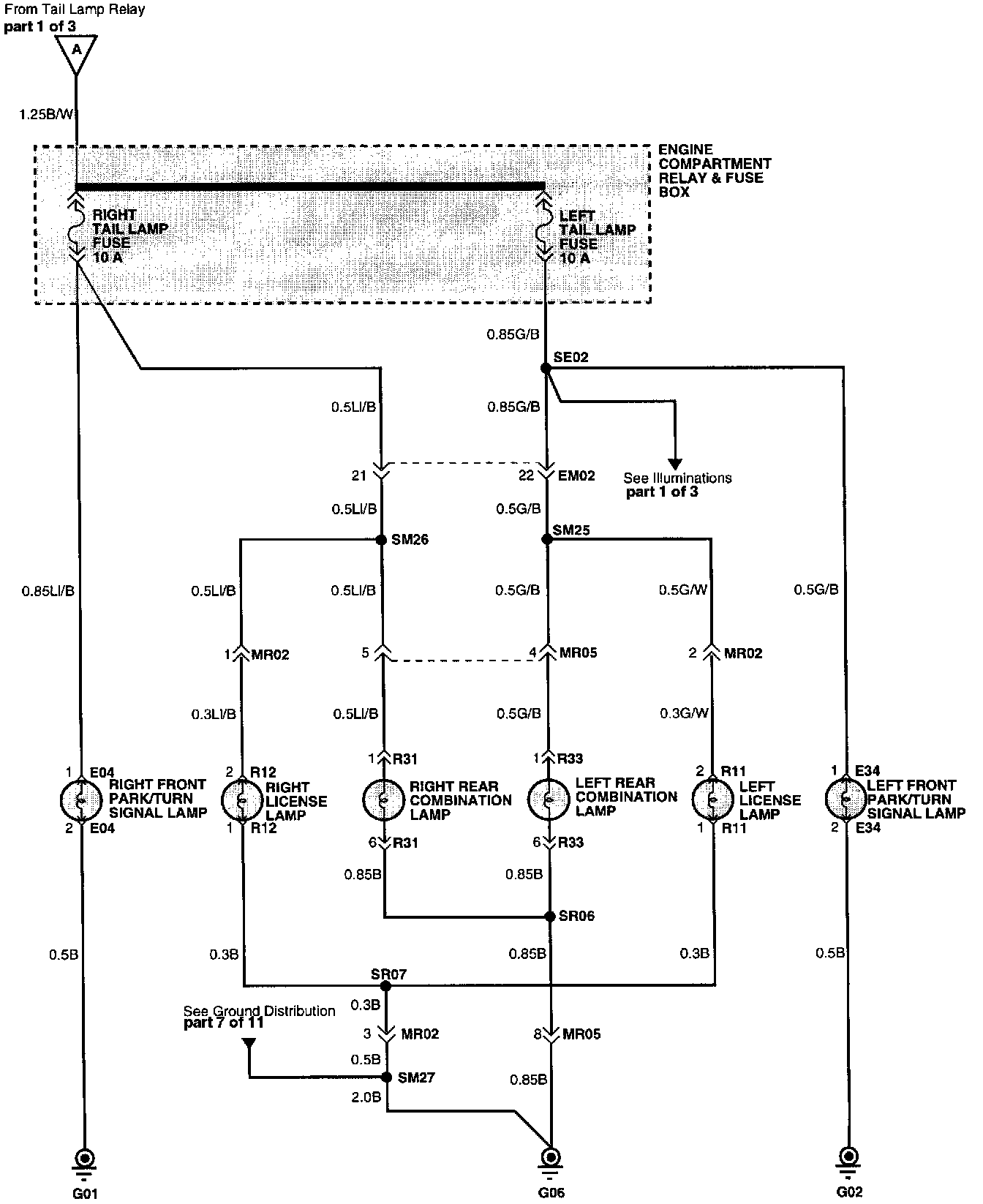

Tail, Parking And License Lamps (Part 2 Of 3):

(Part 2 Of 3) (For 4 Door)
Engine Compartment Relay & Fuse Box
Left Rear Combination Lamp
Left Licence Lamp
Left Front Park/Turn Signal Lamp
Right Rear Combination Lamp
Right Licence Lamp
Right Front Park/Turn Signal Lamp

Tail, Parking And License Lamps (Part 3 Of 3):

(Part 3 Of 3) (For 3 Door)
Engine Compartment Relay & Fuse Box
Left Rear Combination Lamp
Left Licence Lamp
Left Front Park/Turn Signal Lamp
Right Rear Combination Lamp
Right Licence Lamp
Right Front Park/Turn Signal Lamp

Connector Configurations Are Found In The Diagram Section Of The Vehicle.


Connector Locations Are Found In The Locations Section Of The Tail Lamp.
Locations
