Tail Lamp: Service and Repair
1.
Remove the trunk inner trim.
2.
Disconnect the harness connector.
3.

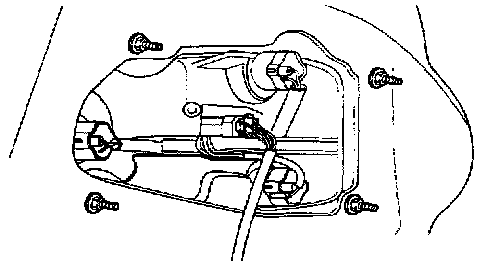

Remove the rear combination lamp by loosening the nuts.
4.
Installation is the reverse order of removal procedure.
