Power Distribution

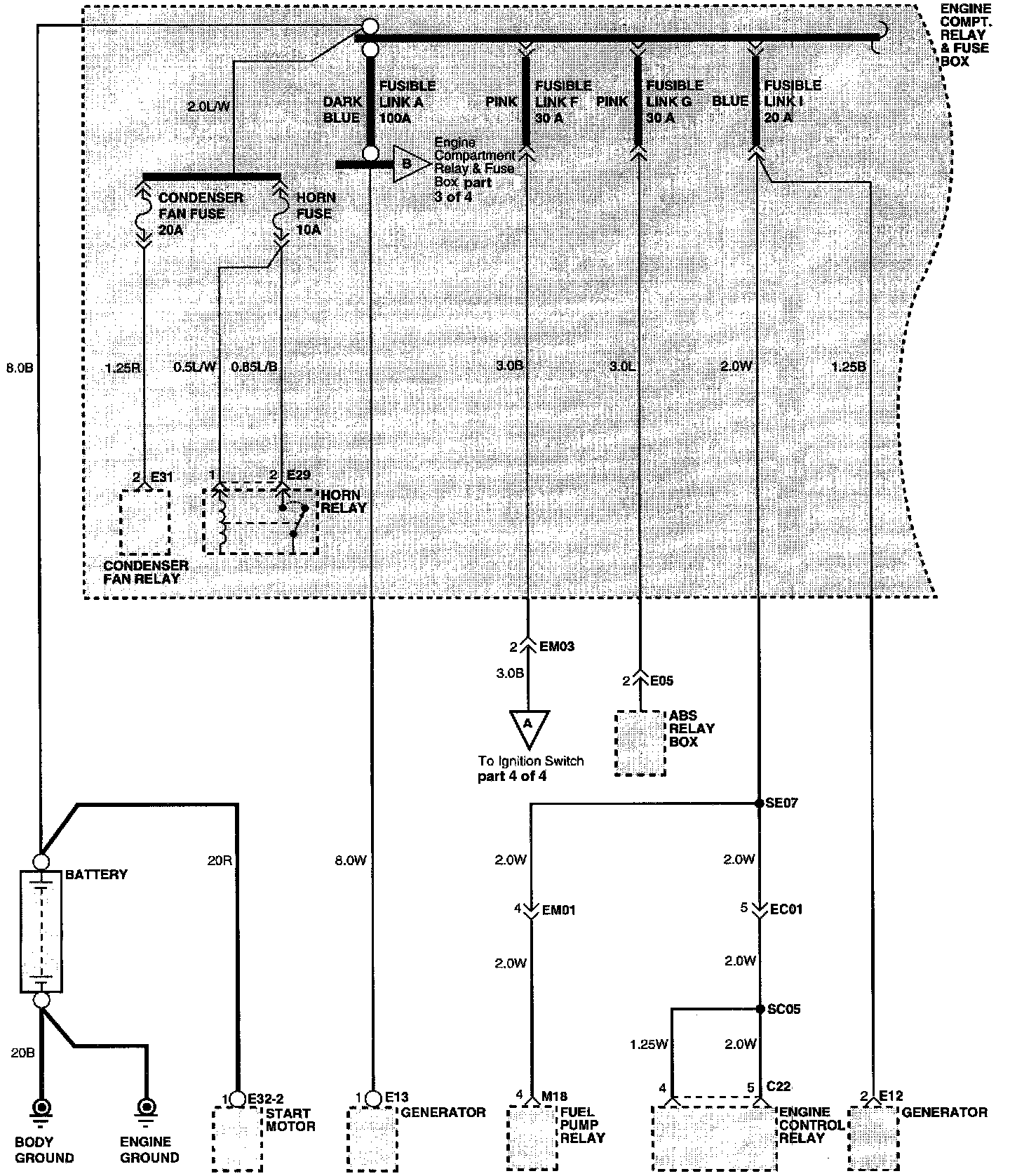

Power Distribution (Part 1 Of 4):

(Part 1 Of 4)
ABS Relay Box
Condenser Fan Motor
Engine Control Relay
Engine Compt. Relay & Fuse Box
Fuel Pump Relay
Generator
Horn relay
Start Motor

Power Distribution (Part 2 Of 4):

(Part 2 Of 4)
Engine Compartment Relay & Fuse Box
Front Fog Lamp Relay
Head Lamp Relay
Instrument Cluster
Left License Lamp
Left Front Park/turn Signal Lamp
Left Rear Combination Lamp
Right License Lamp
Right Front Park/turn Signal Lamp
Right Head Lamp
Right Rear Combination Lamp
Tail Lamp Relay

Power Distribution (Part 3 Of 4):

(Part 3 Of 4)
A/C Relay
ABS Relay Box
Blower Relay
Blower Motor
Dash Fuse Box
Engine Compartment Relay & Fuse Box
Power Window Relay
Passenger Compartment Relay Box
Radiator Fan Relay
Start Relay

Power Distribution (Part 4 Of 4):

(Part 4 Of 4)
Condenser Fan Relay
Dash Fuse Box
ECM
Ignition Switch
Ignition Coil
Pre-excitation Resistor

Connector Configurations Are Found In The Diagram Section Of The Vehicle.


Connector Locations Are Found In The Locations Section Of Power And Ground Distribution.
