Intermittent Wiper and Washer

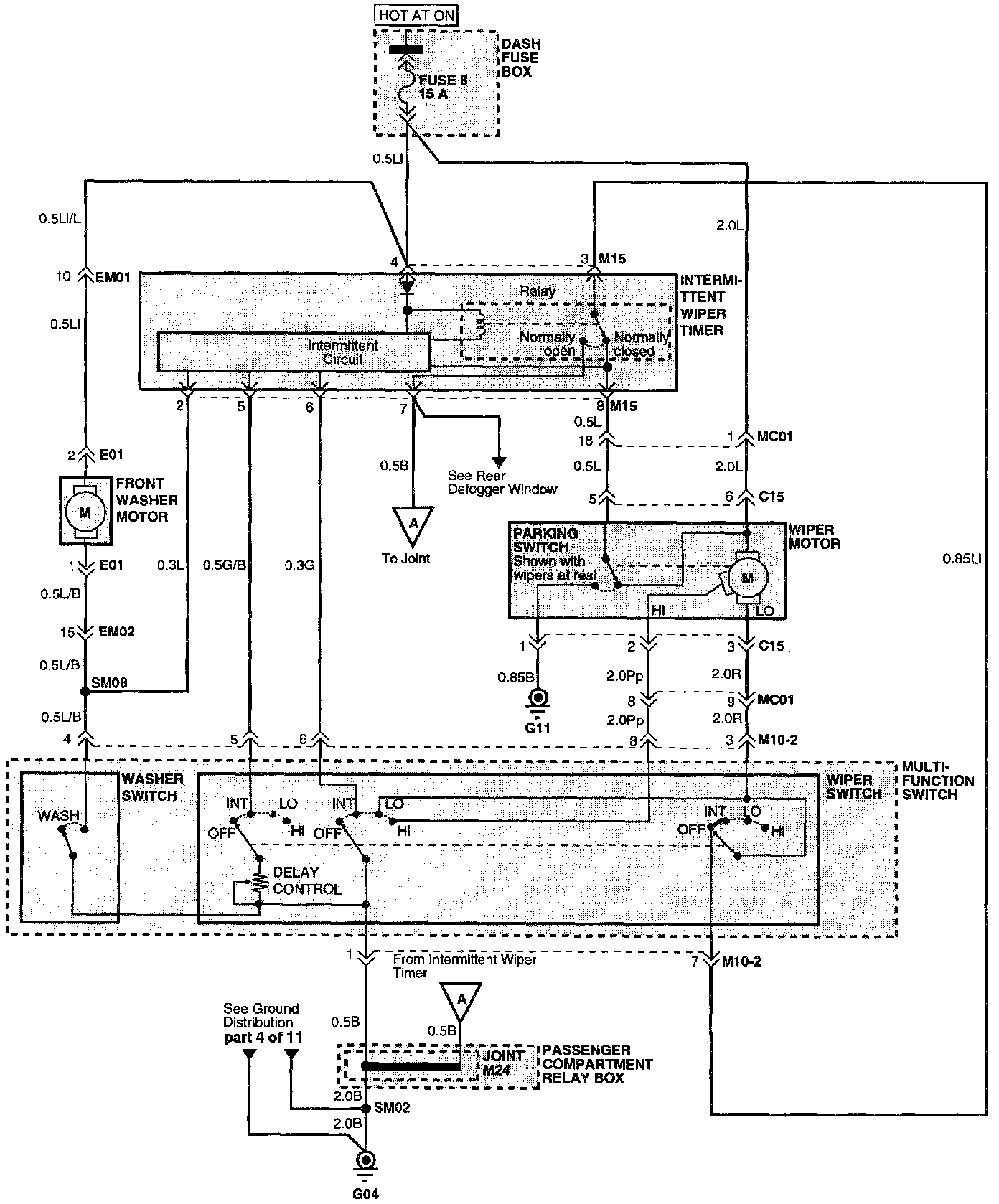

Electrical Diagram

Connector Configurations Are Found In The Diagram Section Of The Vehicle.


Connector Locations Are Found In The Locations Section Of The Wiper and Washer Systems.
Locations
