System Diagram

5�HJ:





Circuit Schematic

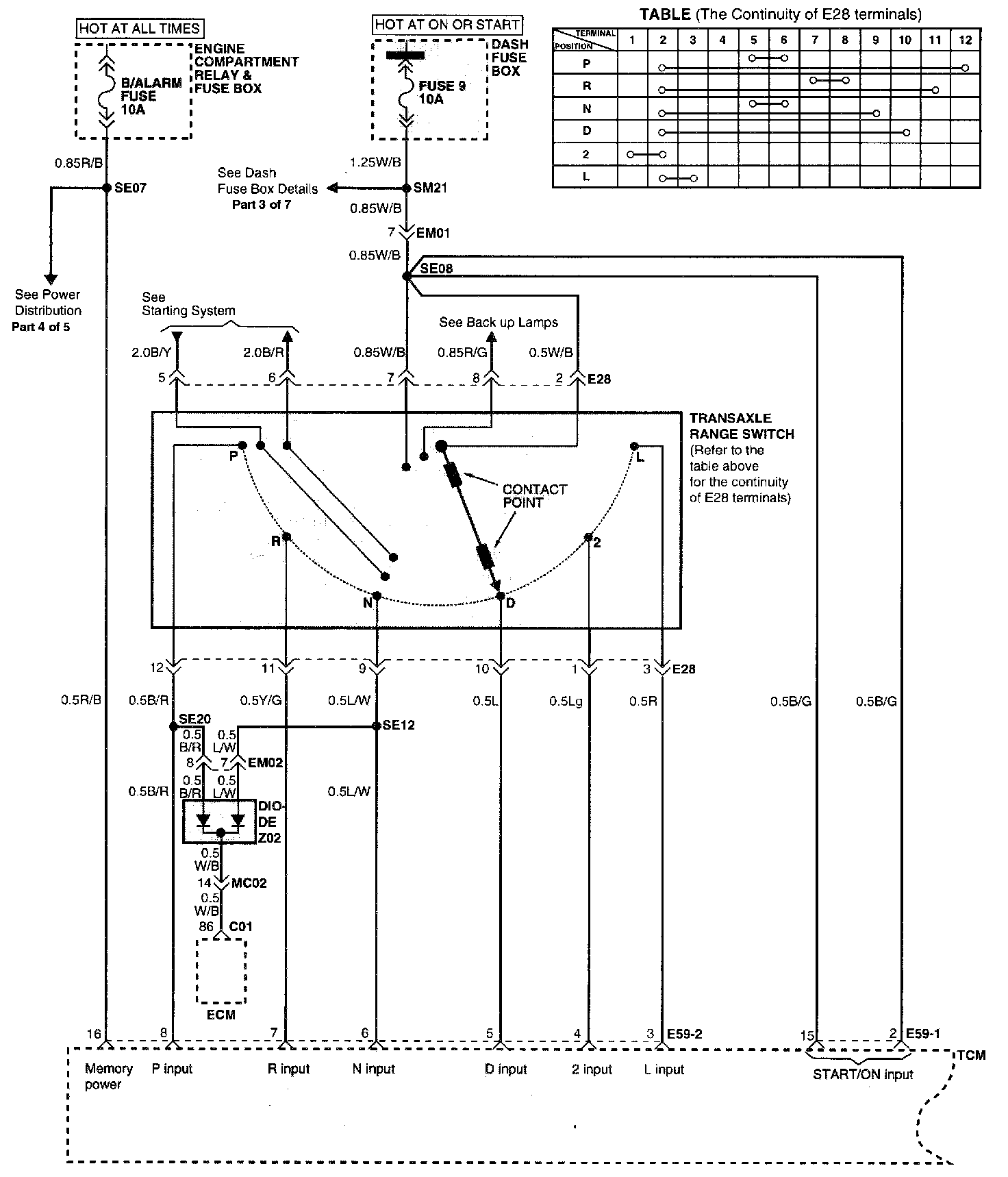

Automatic Transaxle Control System (Part 1 Of 3):





(Part 1 of 3)
Dash Fuse Box
Diode
Engine Compartment Relay & Fuse Box
TCM
Transaxle Range Switch

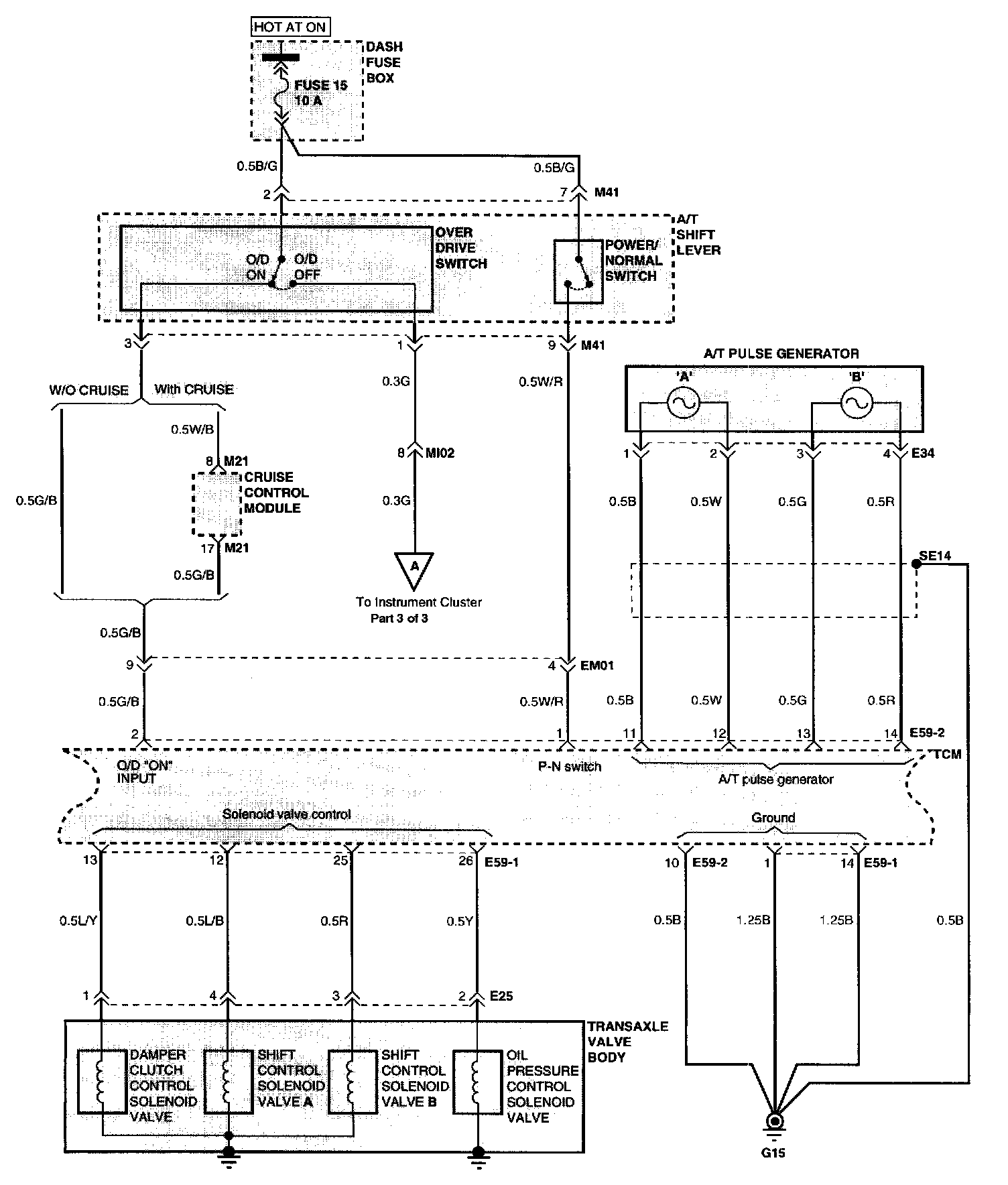

Automatic Transaxle Control System (Part 2 Of 3):





(Part 2 of 3)
A/T Pulse Generator
A/T Shift Lever
- Over Drive Switch
- Power/Normal Switch
Cruise Control Module
Dash Fuse Box
TCM
- A/T Pulse Generator
Transaxle Valve Body
- Damper Clutch Control Solenoid Valve
- Oil Pressure Control Solenoid Valve
- Shift Control Solenoid Valve A
- Shift Control Solenoid Valve B

Automatic Transaxle Control System (Part 3 Of 3):





(Part 3 of 3)
ECM
- Torque Reduction Signal
Idle Switch
Instrument Cluster
- Reed Switch
Kick Down Servo Switch
Oil Temperature Sensor
TCM
- Idle Switch
- Kick Down Switch
- Oil Temperature
- Torque Reduction Signal

Connector Configurations Are Found At Vehicle / Diagrams / Connector Views.
Connector Views

Connector And Component Locations Are Found At Transmission Control Systems / Locations.
Locations
