Rear Harness

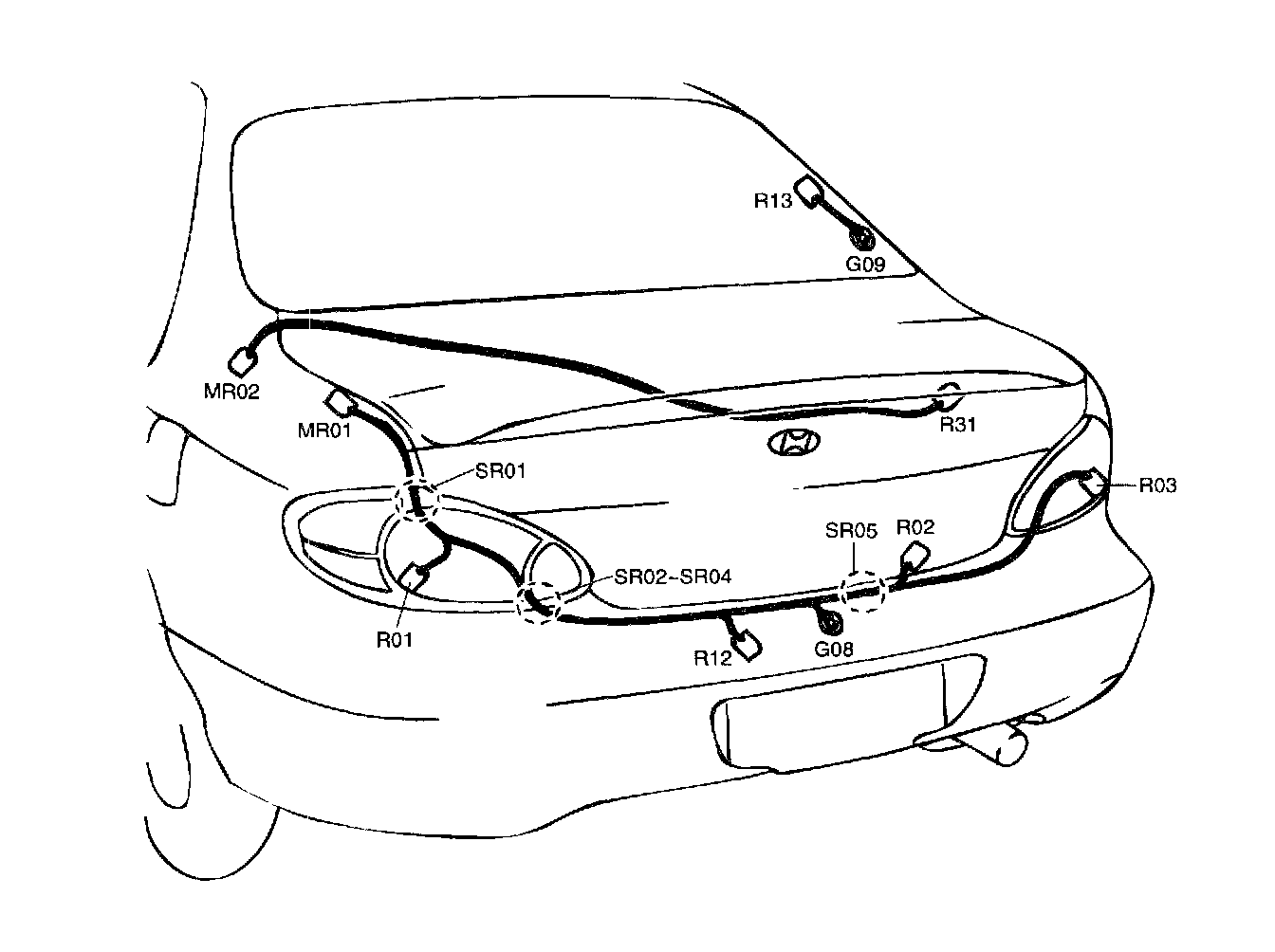

Harness Layout

R01 Left rear combination lamp
R02 Trunk lamp switch
R03 Right rear combination lamp
R12 License lamp
R13 Rear window defogger (-)
R31 High mounted stop lamp (Spoiler)
MR01 Connection with MAIN harness
MR02 Connection with MAIN harness
G08 GROUND
G09 GROUND
