Shift Interlock, A/T

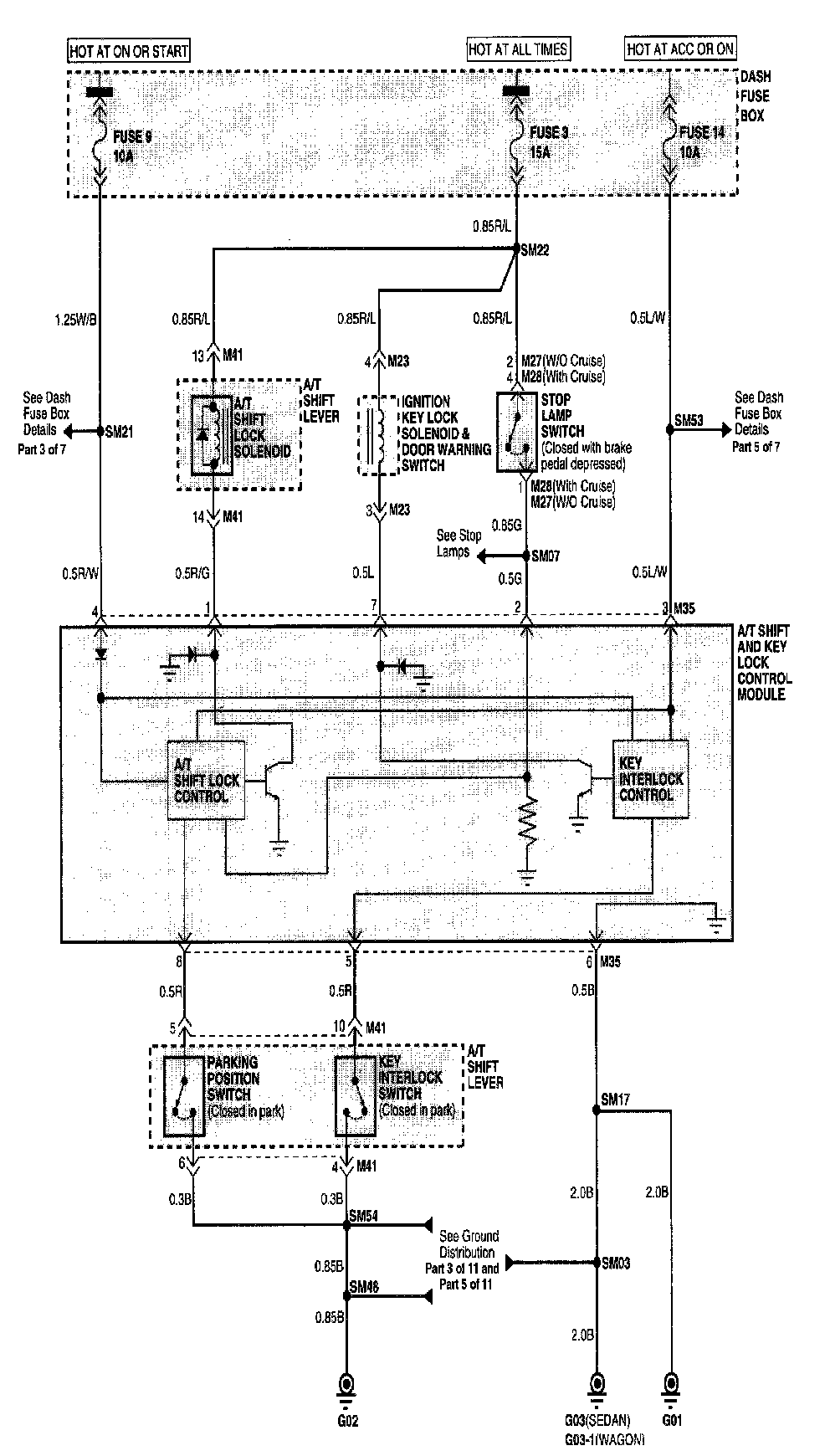

Circuit Diagram

Connector Configurations Are Found At Vehicle / Diagrams / Connector Views.
Connector Views

Connector And Component Locations Are Found At Shift Interlock / Locations.
Locations
