System Diagram

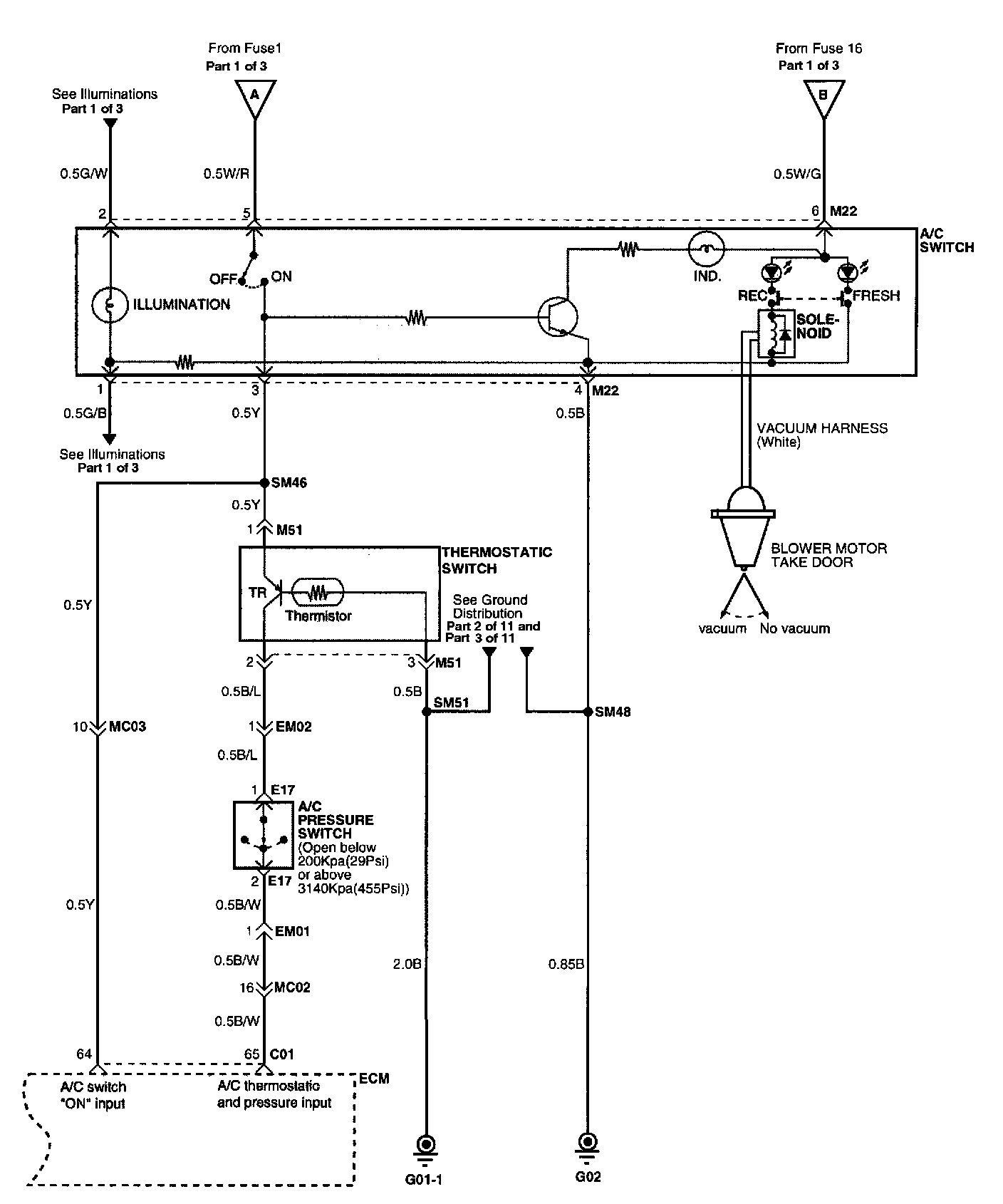

Blower & A/C Controls (Part 1 Of 3):

Blower & A/C Controls (Part 2 Of 3):

Blower & A/C Controls (Part 3 Of 3):

Part 1 Of 2:

Part 2 Of 2:
