Instrument Harness

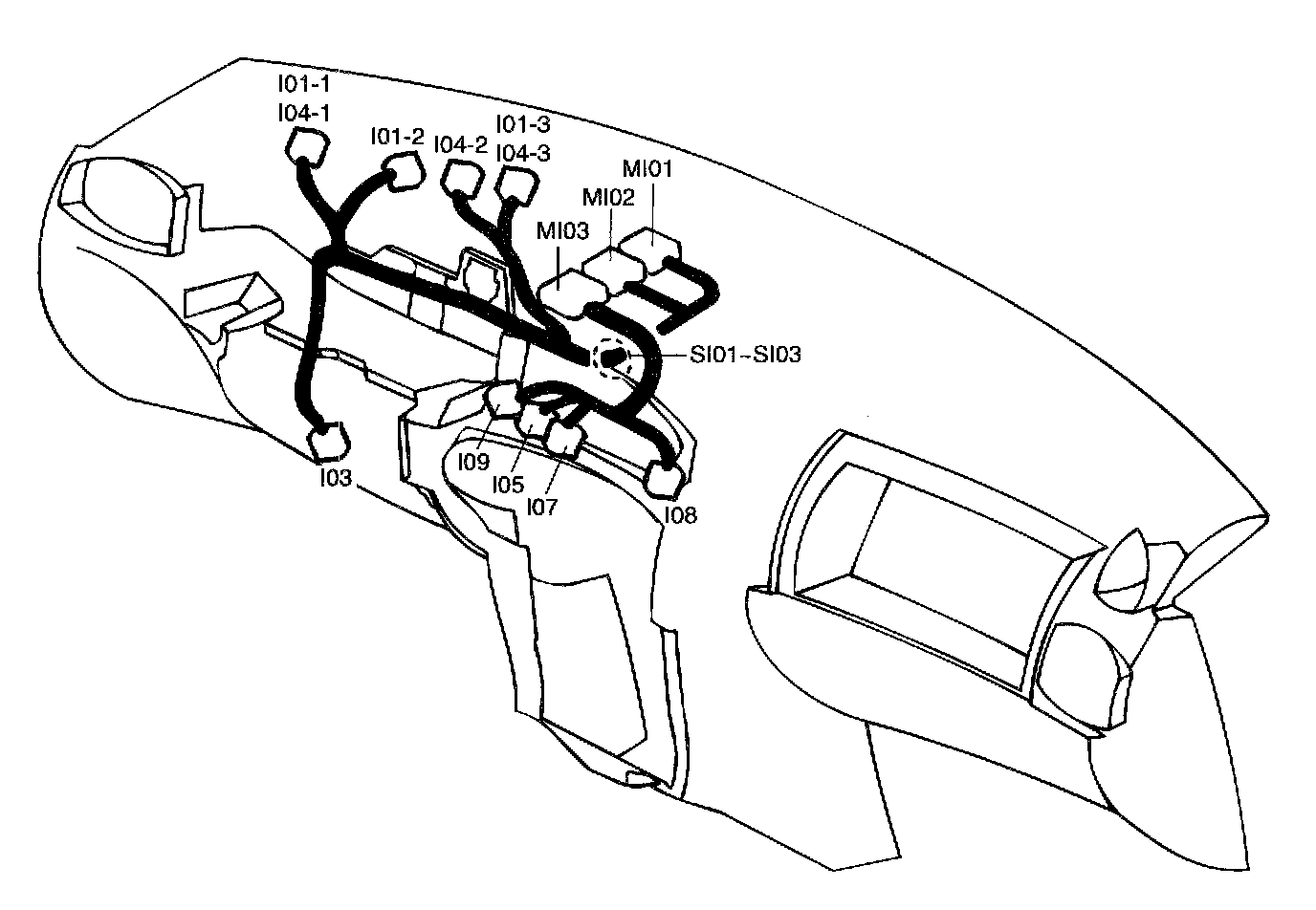

Harness Layout

I01-1 Instrument cluster (GLS)
I01-2 Instrument cluster (GLS)
I01-3 Instrument cluster (GLS)
I03 Data link connector
I04-1 Instrument cluster (GL)
I04-2 Instrument cluster (GL)
I04-3 Instrument cluster (GL)
I05 Front fog lamp switch
I07 Cruise switch
I08 Rear defogger switch
I09 Hazard switch
MI01 Connection with MAIN harness
MI02 Connection with MAIN harness
MI03 Connection with MAIN harness
