Rear Harness (Rear & Tail Gate Harness)

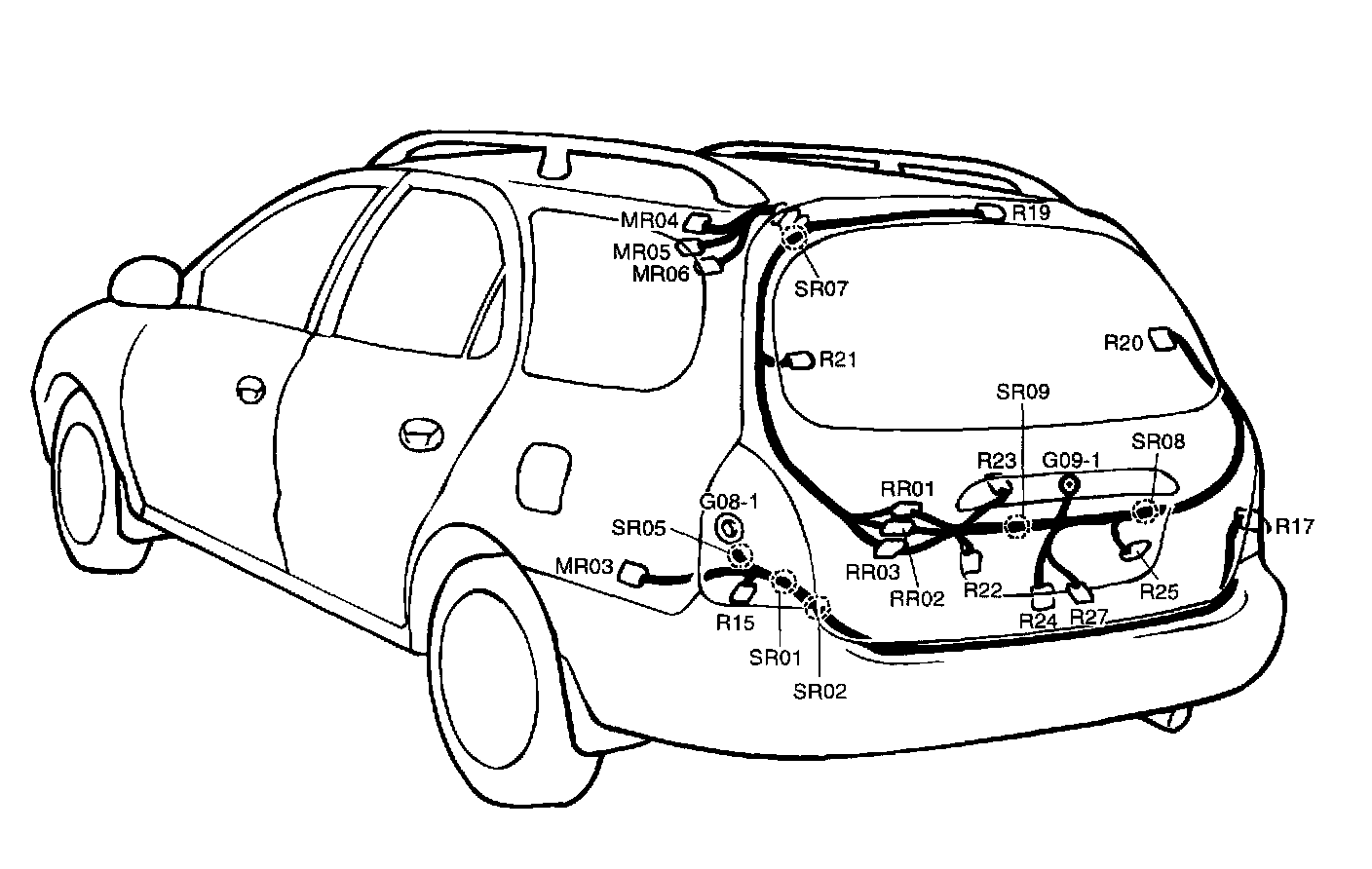

Harness Layout

R15 Left rear combination lamp
R17 Right rear combination lamp
R19 High mounted stop lamp
R20 Rear window defogger (-)
R21 Rear window defogger (+)
R22 Left license lamp
R23 Rear wiper motor
R24 Tail gate switch
R25 Right license lamp
R27 Tail gate actuator
MR03 Connection with MAIN harness
MR04 Connection with MAIN harness
MR05 Connection with MAIN harness
MR06 Connection with MAIN harness
RR01 Connection with TAIL GATE EXT. harness
RR02 Connection with TAIL GATE EXT. harness
RR02 Connection with TAIL GATE EXT. harness
G08-1 GROUND
G09-1 GROUND
