Evaporator Core: Service and Repair

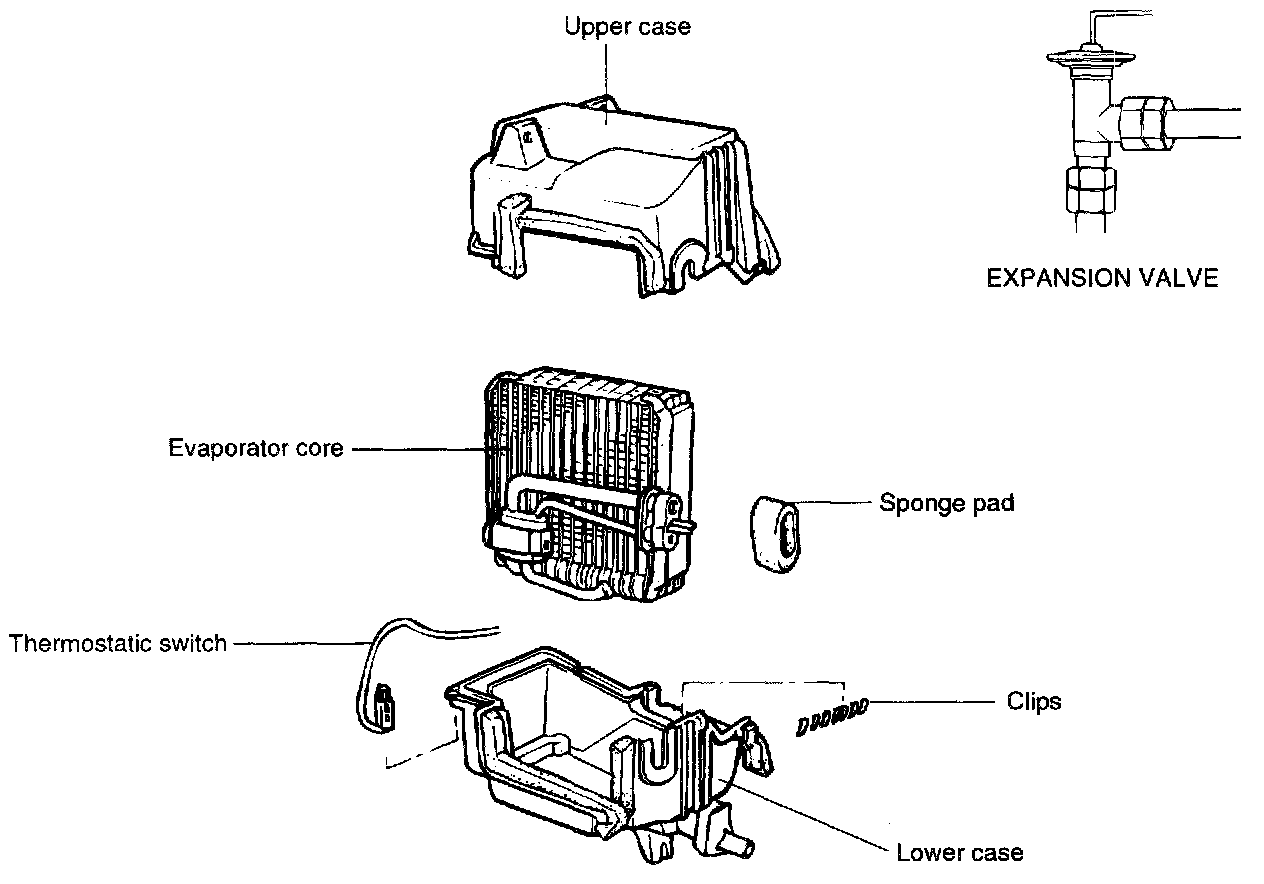

COMPONENTS

DISASSEMBLY




1. Remove 7 clips which is holding the upper case to the lower case.




2. Remove the sponge pad which is wrapping around the evaporator inlet and the outlet fittings.

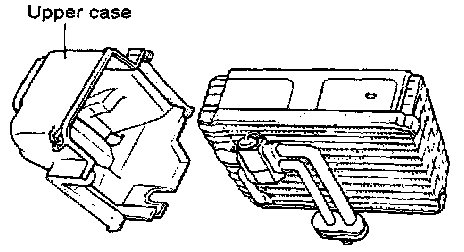

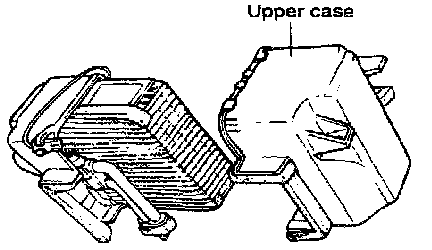

3. Remove the evaporator upper case from the lower case.




4. Remove the thermostatic switch (with thermistor) and thermistor mounting clip.

CAUTION: Be careful not to damage the fins of the evaporator core.




5. Remove the evaporator core from the evaporator lower case.

REASSEMBLY
1.Reassembly is the reverse order of disassembly.

CAUTION: While reassembling the evaporator unit, be careful not to damage the fins of the evaporator core and the thermostatic switch wiring.
