Illumination

Illumination (Part 1 Of 3):





(Part 1 of 3)
A/C Switch Ill.
Cruise Switch Ill.
Diode
Engine Compartment Relay & Fuse Box
- DRL Relay
- Left T/Lamp
- Tail Lamp Relay
Front Fog Lamp Switch
Hazard Switch Ill.
Multi-Function Switch
- Light Switch

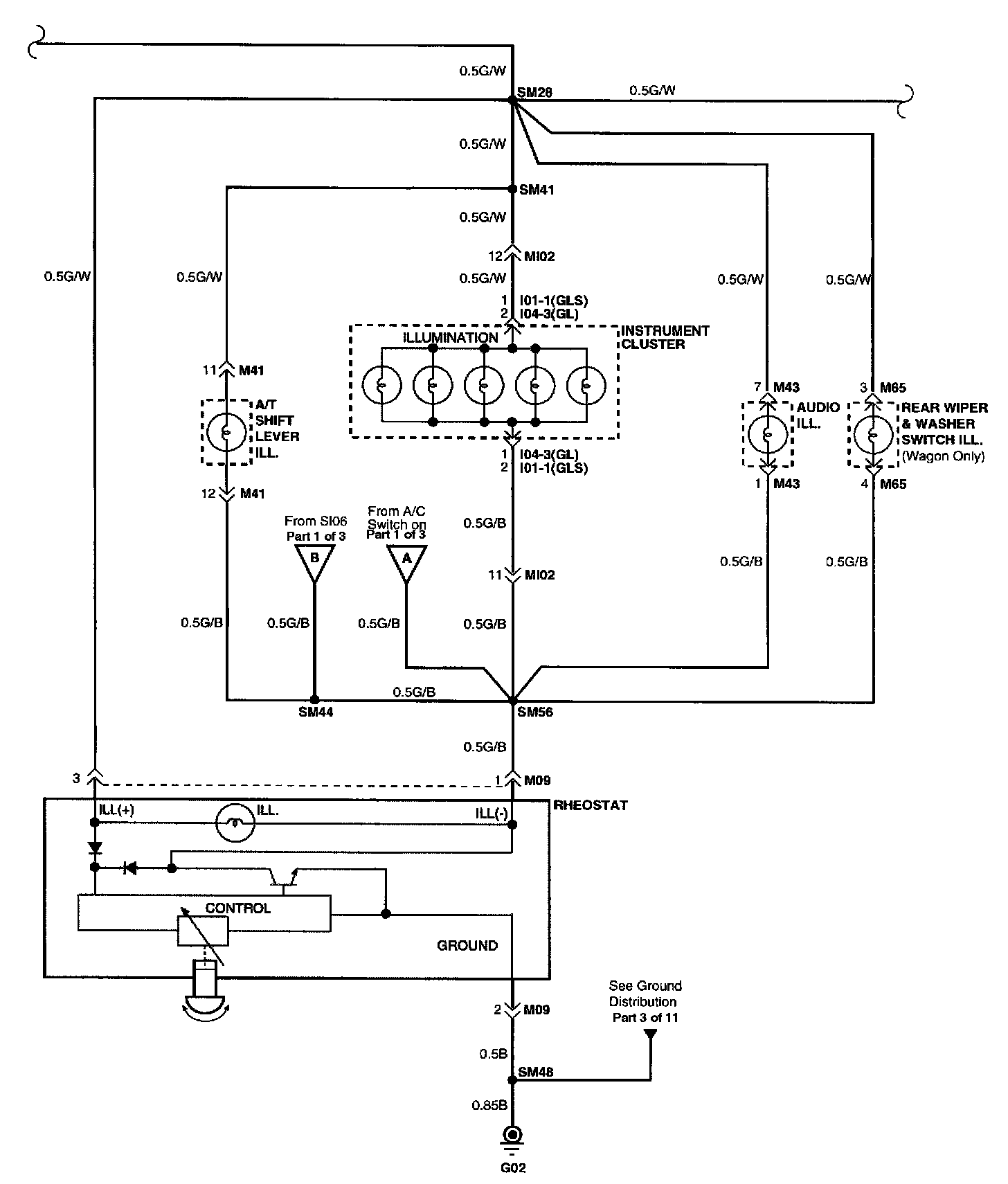

Illumination (Part 2 Of 3):





(Part 2 of 3)
A/T Shift Lever Ill.
Audio Ill.
Instrument Cluster
- Illumination
Rear Wiper & Washer Switch Ill.
Rheostat

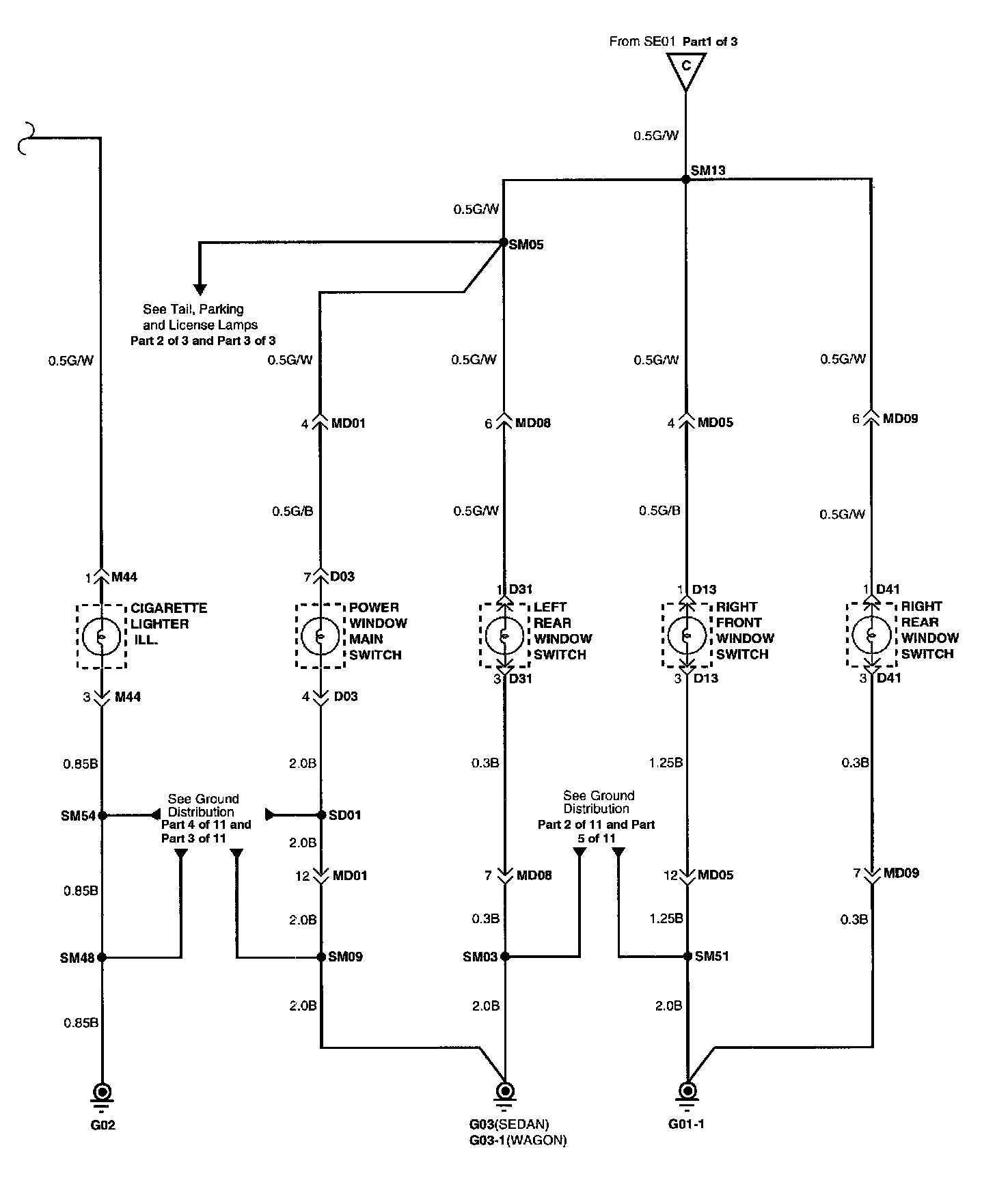

Illumination (Part 3 Of 3):





(Part 3 of 3)
Cigarette Lighter Ill.
Left Rear Window Switch
Power Window Main Switch
Right Front Window Switch
Right Rear Window Switch

Connector Configurations Are Found At Vehicle / Diagrams / Connector Views.
Connector Views

Connector And Component Locations Are Found At Instrument Panel, Gauges and Warning Indicators / Locations.
Locations
