Indicators and Gauges (Clock Contained)

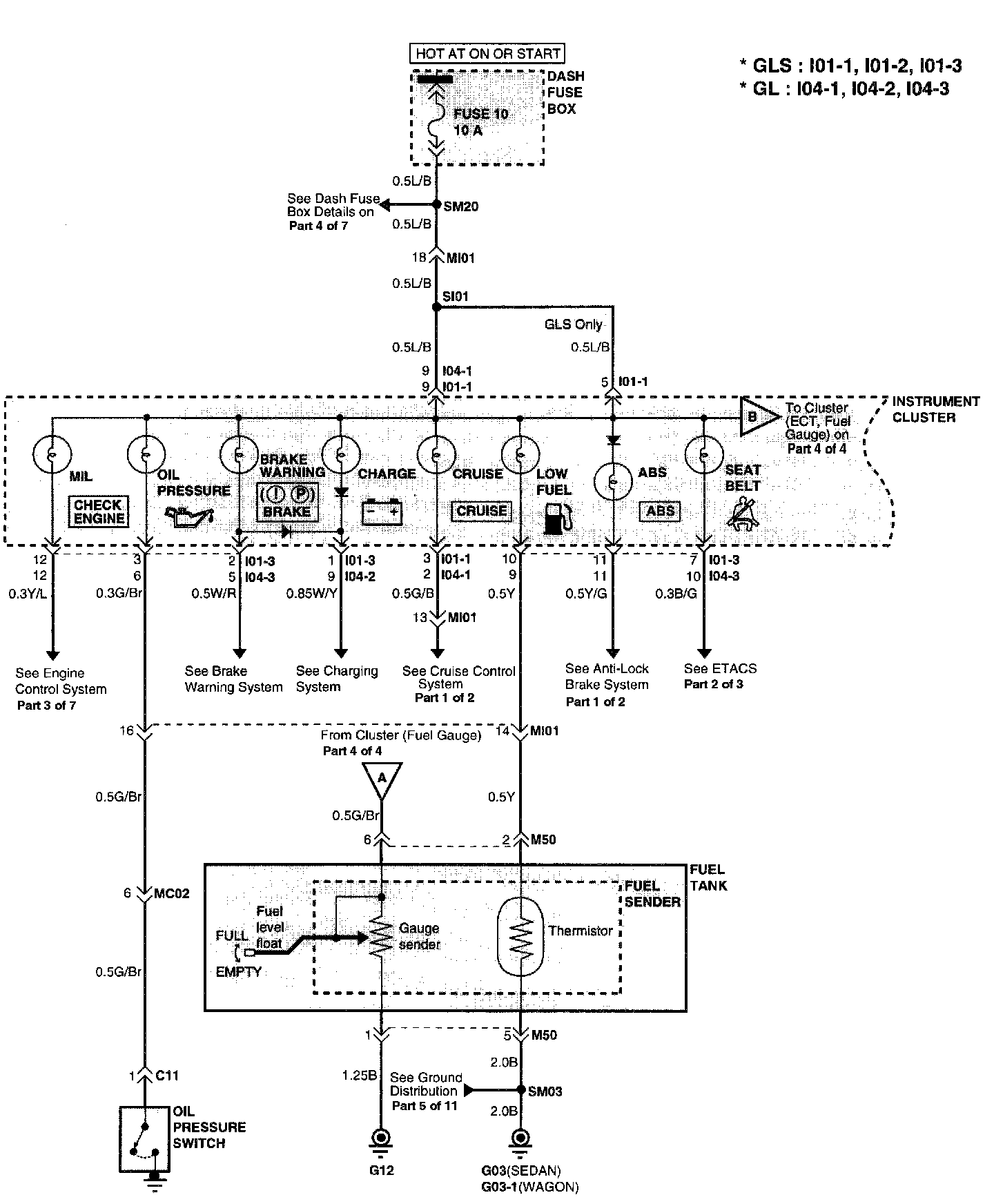

Indicators And Gauges-Clock Contained (Part 1 Of 4):

(Part 1 of 4)
Dash Fuse Box
Fuel Tank
- Fuel Sender
- Gauge Sender
- Thermistor
Instrument Cluster
- Brake Warning
- Oil Pressure
- Seat Belt
Oil Pressure Switch

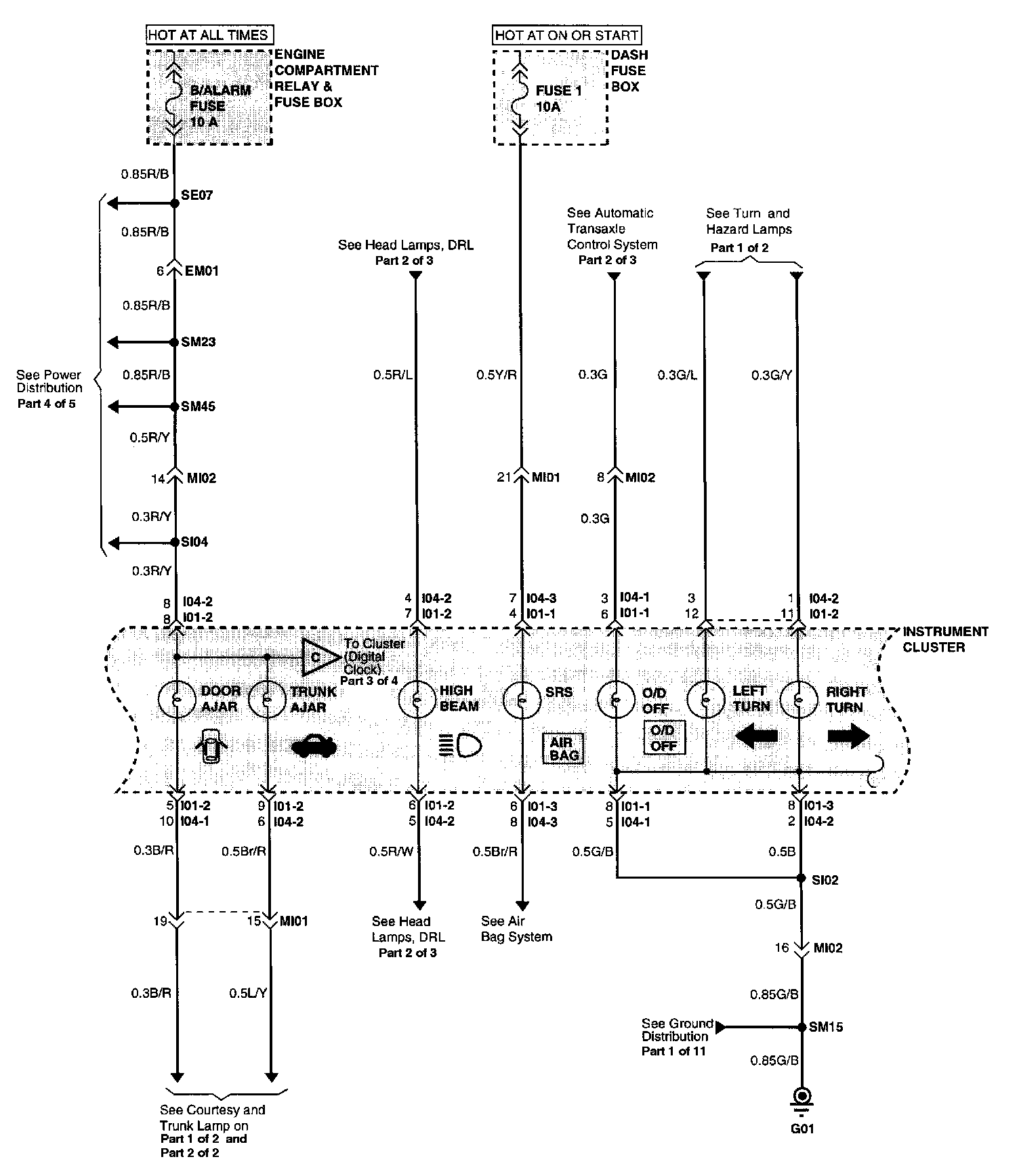

Indicators And Gauges-Clock Contained (Part 2 Of 4):

(Part 2 of 4)
Dash Fuse Box
Engine Compartment Relay & Fuse Box
Instrument Cluster

Indicators And Gauges-Clock Contained (Part 3 Of 4):

(Part 3 of 4)
Dash Fuse Box
Instrument Cluster
- Digital Clock
- Illumination
Multifunction Switch
- Light Switch

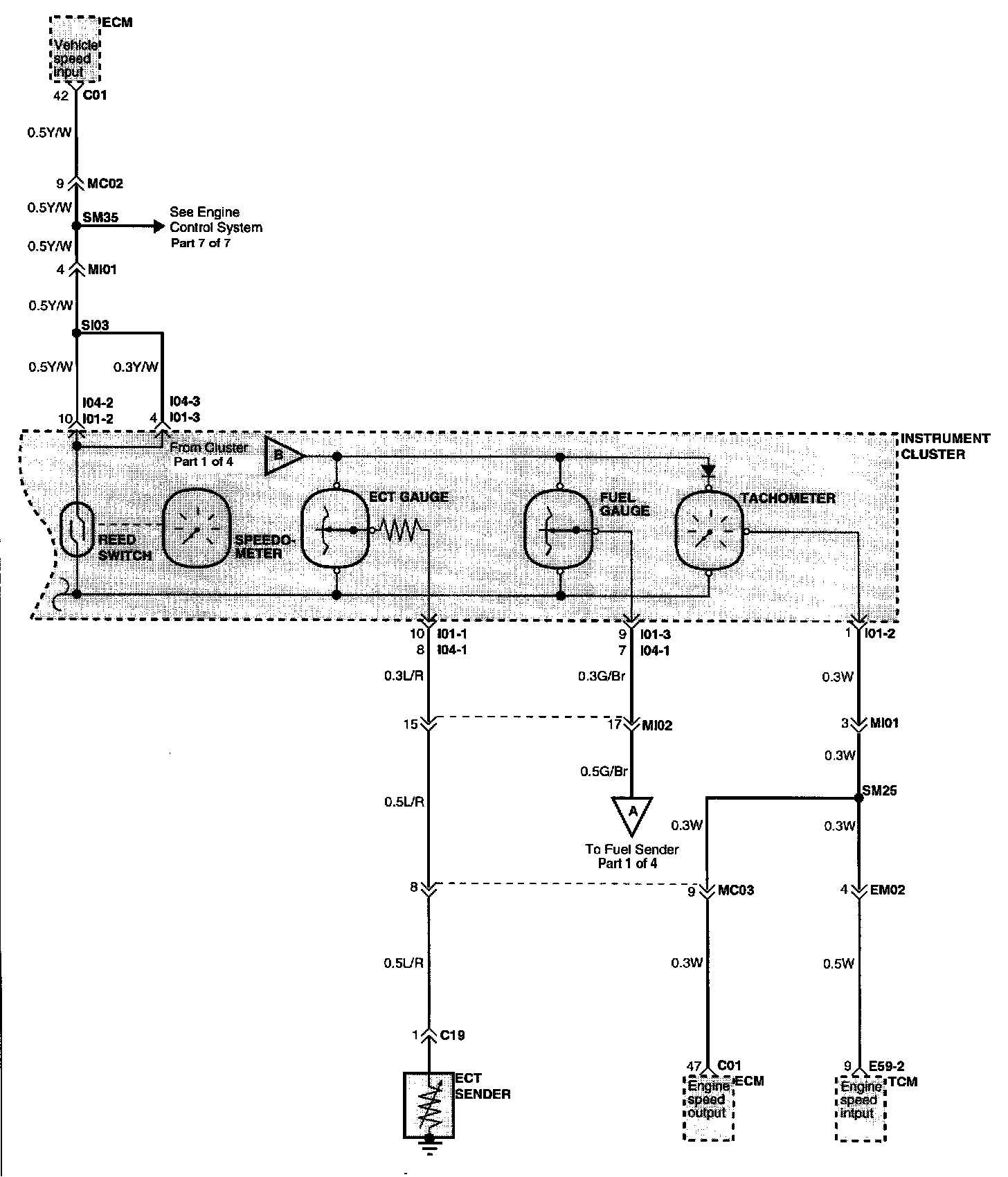

Indicators And Gauges-Clock Contained (Part 4 Of 4):

(Part 4 of 4)
ECM
ECT Sender
Instrument Cluster
- ECT Gauge
- Fuel Gauge
- Reed Switch
- Speedometer
- Tachometer

Connector Configurations Are Found At Vehicle / Diagrams / Connector Views.
Connector Views

Connector And Component Locations Are Found At Instrument Panel, Gauges and Warning Indicators / Locations.
Locations
