Fuel Gauge Sender: Testing and Inspection

FUEL SENDER

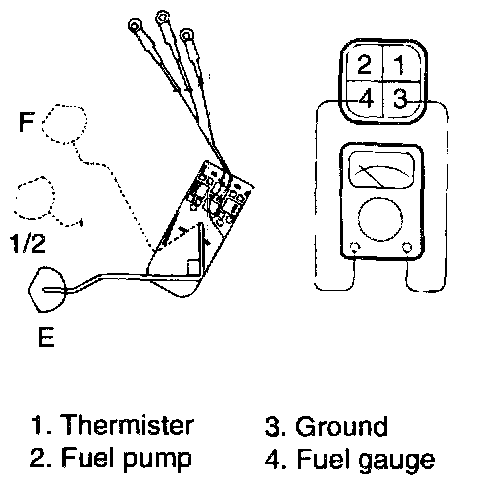

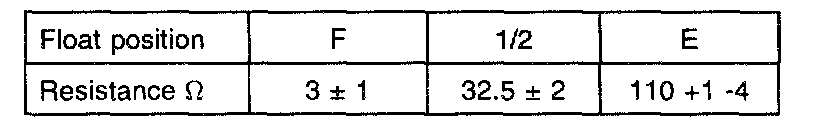

1. Using a ohmmeter, measure the resistance between terminals 3 and 4 at each float level.
2. Also check that the resistance changes smoothly when the float is moved to "E" or "F".
