Instrument Cluster / Carrier: Service and Repair

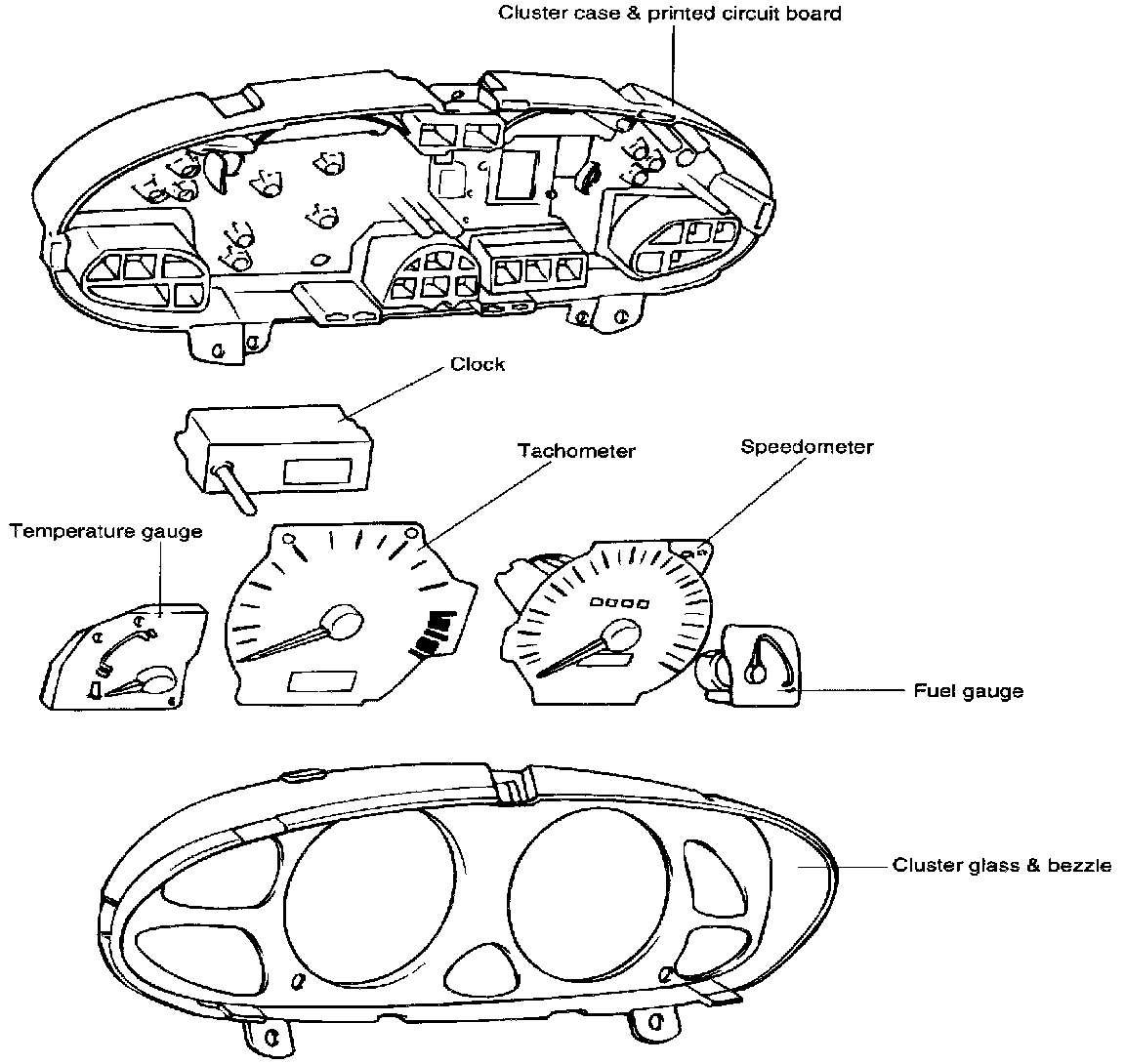

COMPONENTS

REMOVAL



1. Disconnect the battery negative terminal.

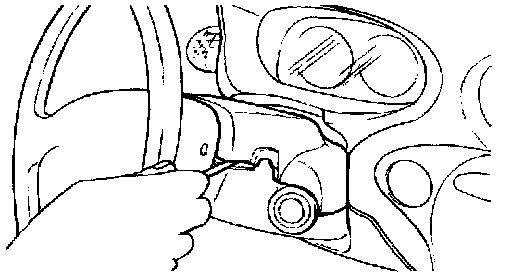

2. Remove the steering column upper shroud using a flat blade screwdriver.

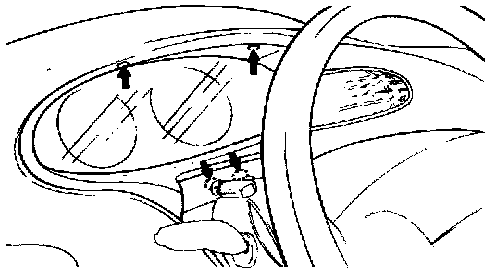

3. Remove the mounting screws (4EA) and cluster facia panel.




4. Remove the cluster mounting screws (3EA) and disconnect the connectors (3EA), and remove the instrument cluster.

INSTALLATION
1. Installation is the reverse of removal procedure.
