Electrical Diagrams

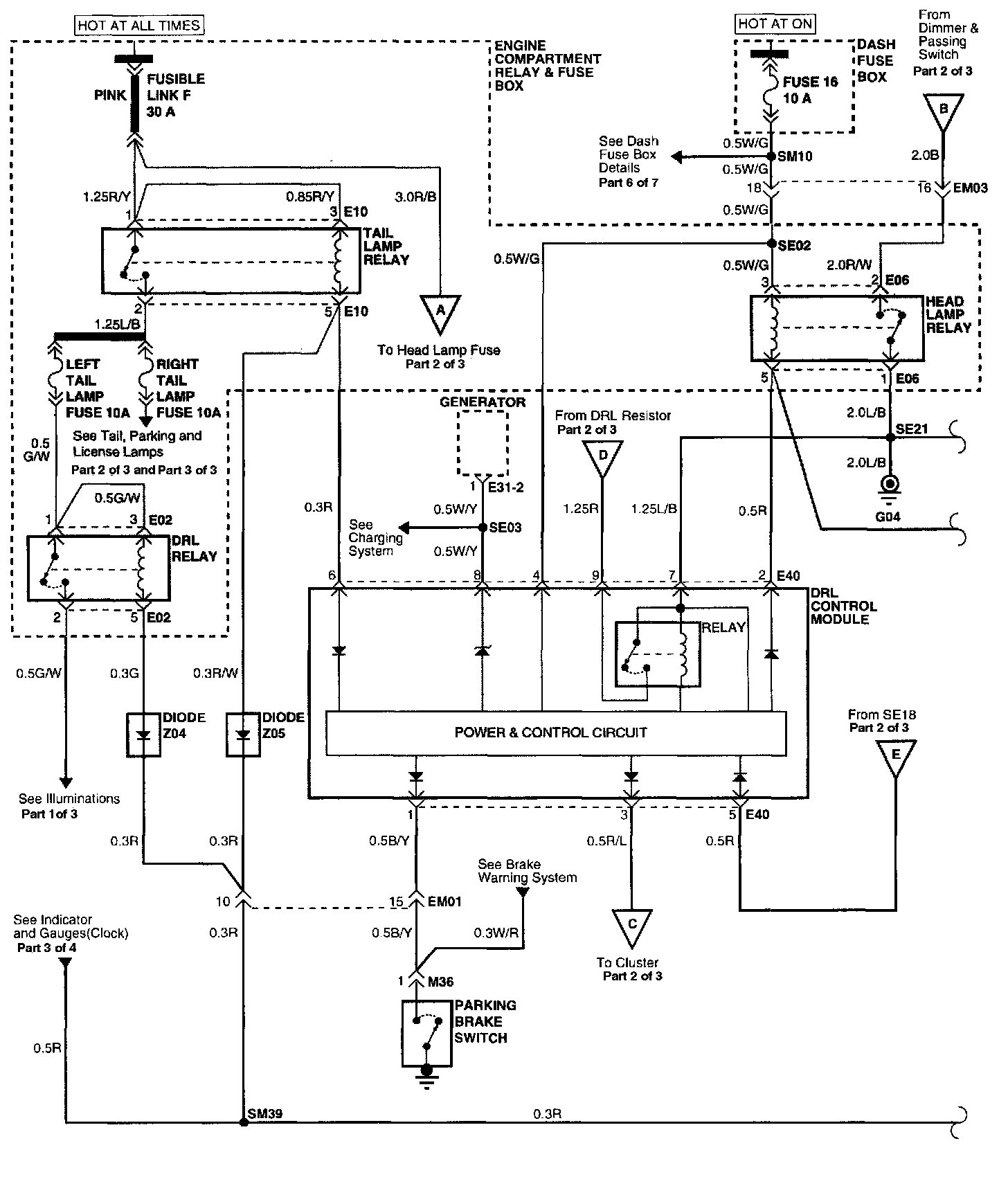

Daytime Running Lights (Part 1 Of 3):

(Part 1 of 3)
Dash Fuse Box
Diode
DRL Control Module
- Power & Control Circuit
Engine Compartment Relay & Fuse Box
- DRL Relay
- Head Lamp Relay
- Left Tail Lamp
- Right Tail Lamp
- Tail Lamp Relay
Generator
Parking Brake Switch

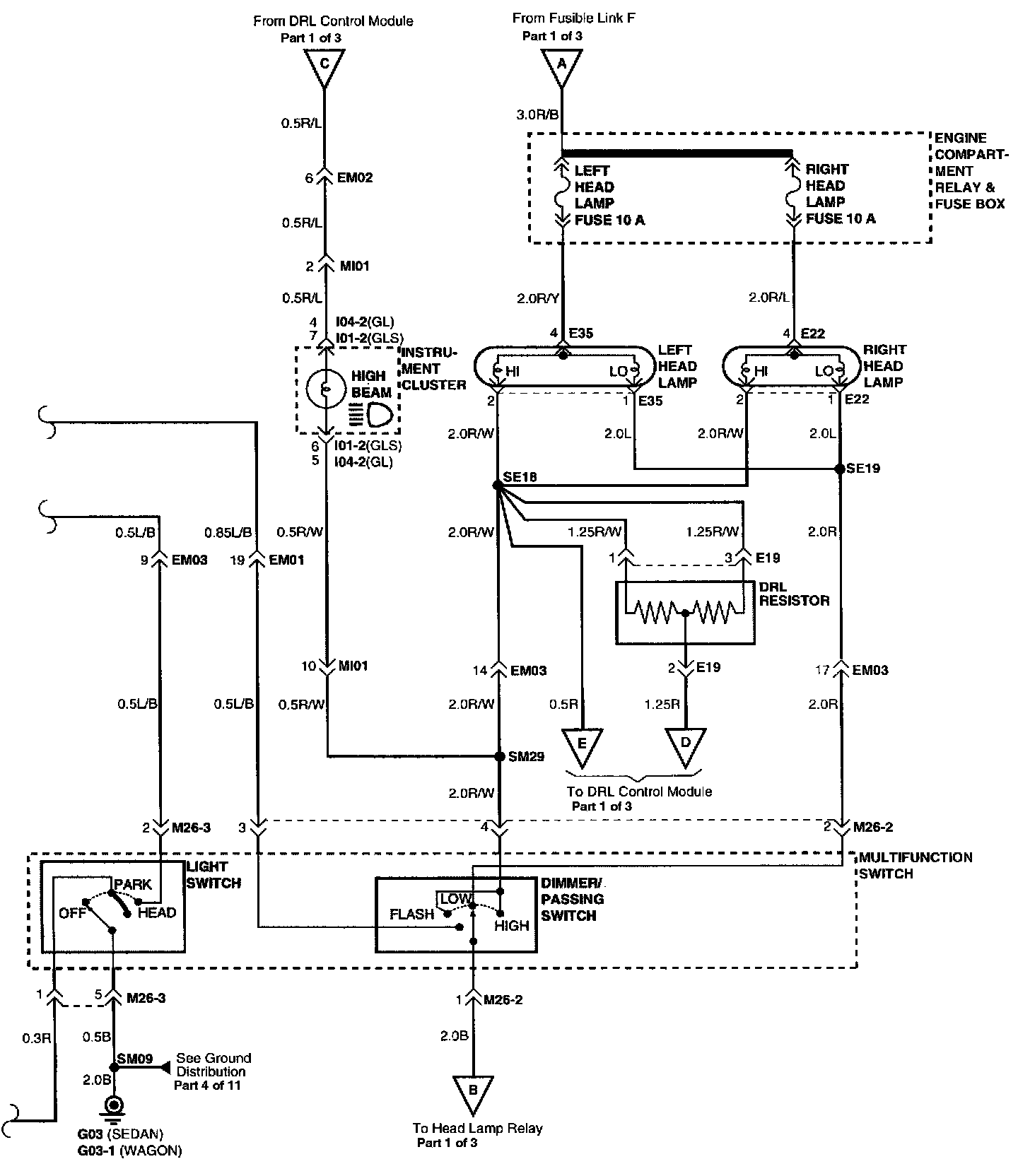

Daytime Running Lights (Part 2 Of 3):

(Part 2 of 3)
DRL Resistor
Engine Compartment Relay & Fuse Box
- Left Head Lamp
- Right Head Lamp
Instrument Cluster
- High Beam
Left Head Lamp
Multifunction Switch
- Dimmer/Passing Switch
- Light Switch
Right Head Lamp

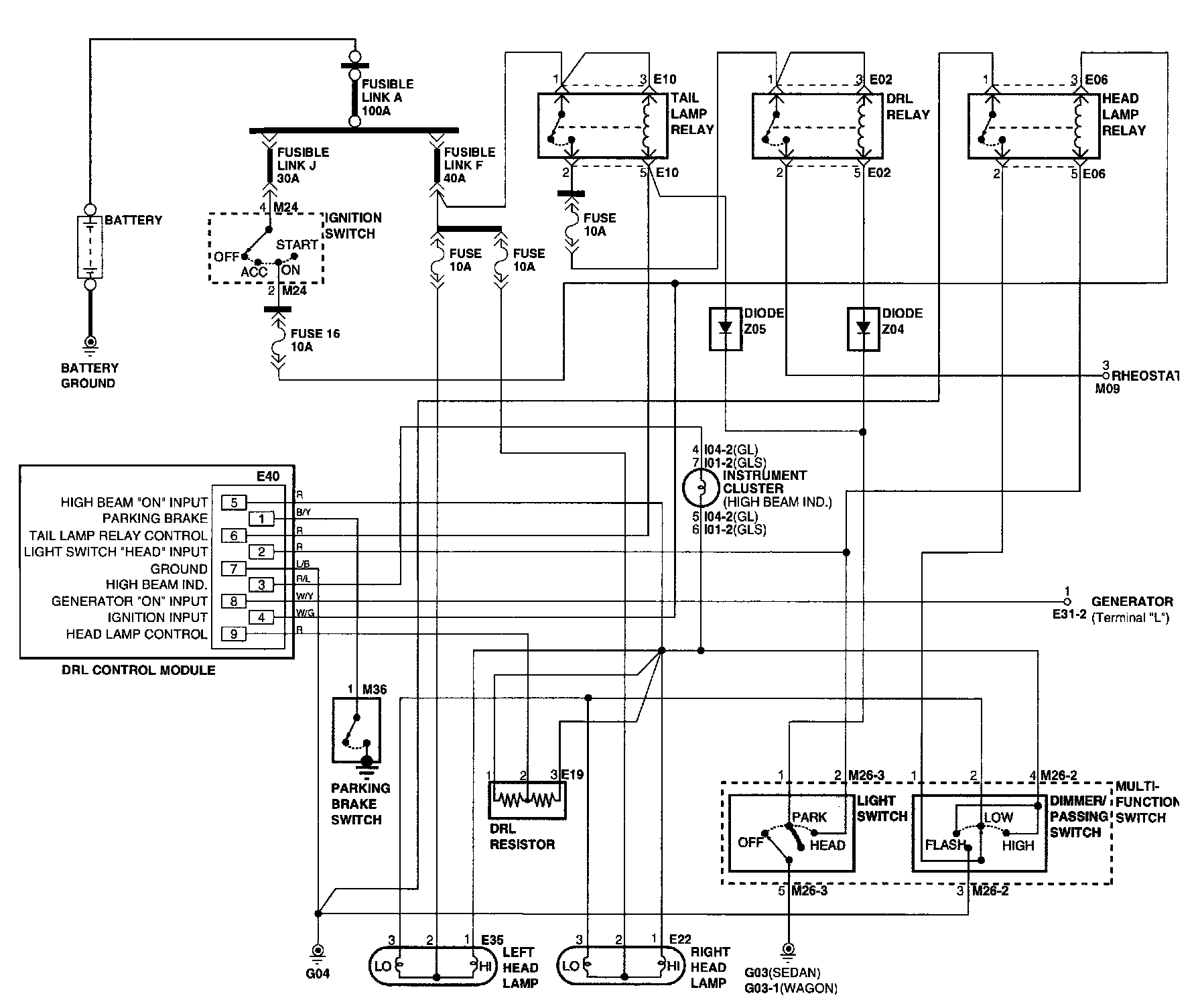

Daytime Running Lights (Part 3 Of 3):

(Part 3 of 3)
Battery
Diode
DRL Control Module
DRL Relay
DRL Resistor
Generator
Head Lamp Relay
Ignition Switch
Instrument Cluster
Left Head Lamp
Multi-Function Switch
- Dimmer/Passing Switch
- Light Switch
Parking Brake Switch
Rheostat
Right Head Lamp
Tail Lamp Relay

Connector Configurations Are Found At Vehicle / Diagrams / Connector Views.
Connector Views

Connector And Component Locations Are Found At Daytime Running Lamp / Locations.
Locations
