SRS/Seat Belt Pretensioner - Schematics/DTCs/Locations
Group: BODY ELECTRICALNumber: 99-90-005
Date: APRIL, 1999
Model: 1999 ELANTRA
Subject
1999 ELANTRA AIR BAG AND SEAT BELT PRETENSIONER SCHEMATIC AND DTC INFORMATION
DESCRIPTION:
The 1999 Elantra is equipped with an Air Bag System (SRS) and seat belt pretensioners. This TSB provides diagnostic trouble codes (DTC), a wiring schematic which includes the pretensioner circuits and a component location index.

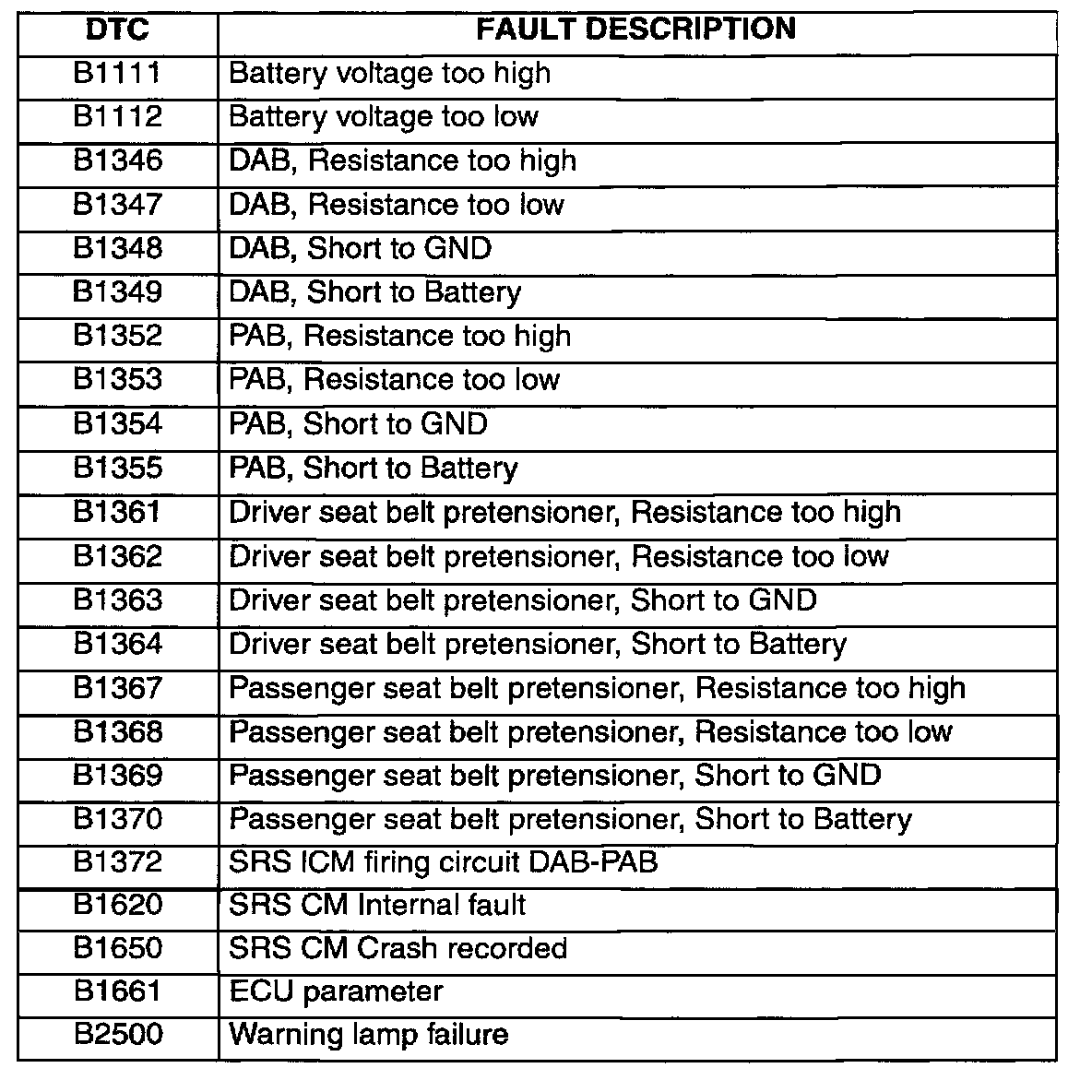

1999 ELANTRA DIAGNOSTIC TROUBLE CODES
1999 ELANTRA AIR BAG SYSTEM SCHEMATIC:
The schematic is a revised version of the one previously published in the 1999 Elantra / Tiburon Electrical Troubleshooting Manual, printed 6/30/98, publication No. PKSE 9015A. This new schematic has also been added to the revised ETM which was printed 12/30/98, publication No. PKSE 9015B.

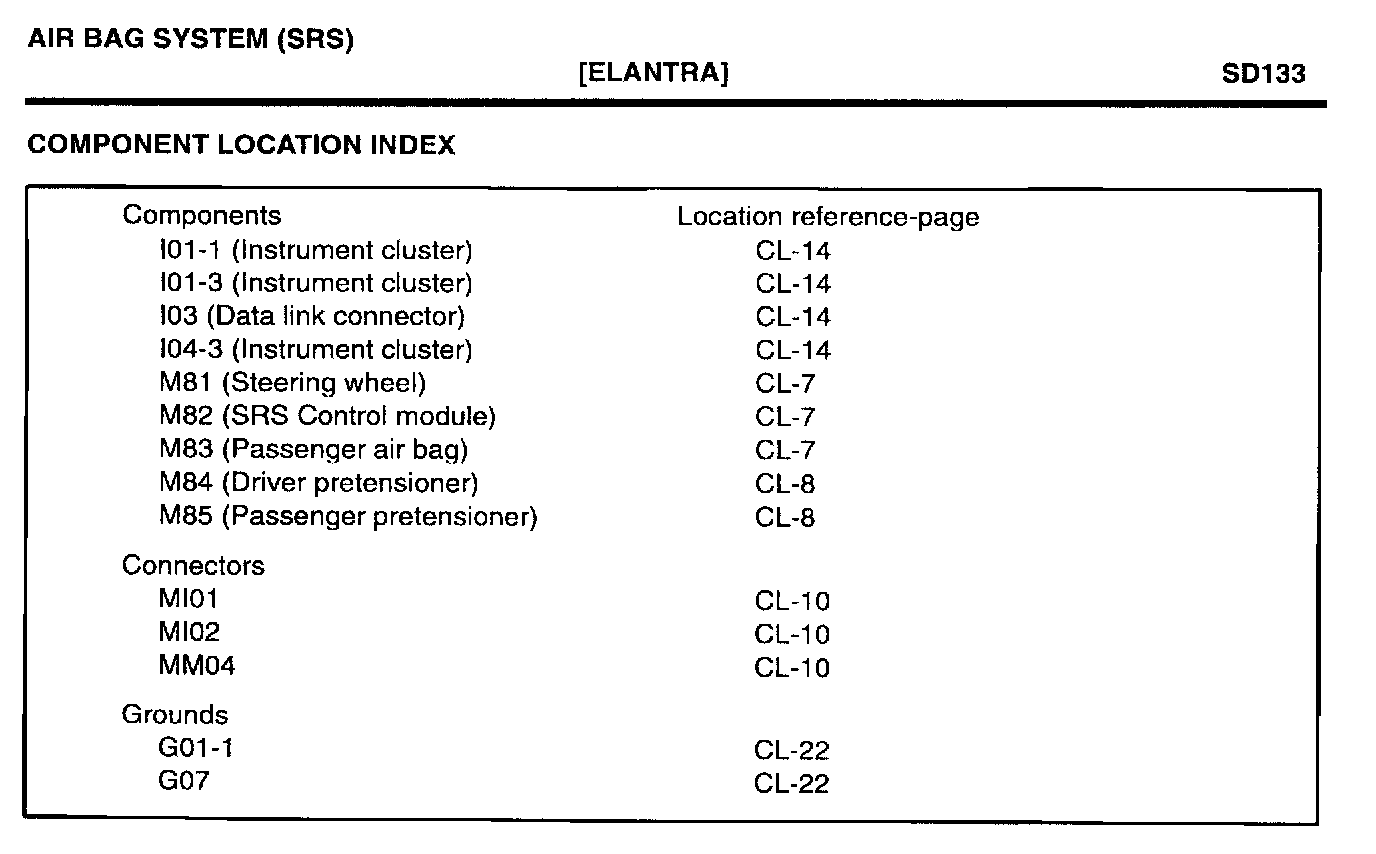

COMPONENT LOCATION INDEX
Circuit Description
Only authorized service personnel should do work on or around the supplemental restraint system (SRS) components. Service personnel should read section 56a of the service manual carefully before starting work on the supplemental restraint system (SRS).
The supplemental restraint system (SRS) is a safety device which, when used in conjunction with the seat belts, is designed to protect the driver and front seat passenger by deploying when the car is involved in certain frontal impacts.
With the ignition switch in ON or START, battery voltage is applied to the SRS control module from fuse 12 and to the SRS indicator in the instrument cluster from fuse 1. When the ignition switch is turned to the ON position, the SRS indicator is the instrument cluster will flash six times. If the SRS indicator does not flash six times, or stays ON, or comes on while driving, the SRS is not working properly.
WARRANTY INFORMATION:
Normal warranty operation codes and times apply. Please refer to the Labor Time Standard (LTS) for specific information.
