M/T - Clutch Squeak/Squawk Upon Application/Release

Group: TRANSAXLE

Number: 02-40-024

Date: OCTOBER, 2002

Model: 1999-2002 SONATA, ELANTRA & TIBURON (ALL)

Subject
IMPROVED CLUTCH RELEASE SHAFT UPPER AND LOWER BUSHINGS

DESCRIPTION:

This bulletin provides parts information for the new clutch release shaft upper and lower bushings that are produced from a different material.

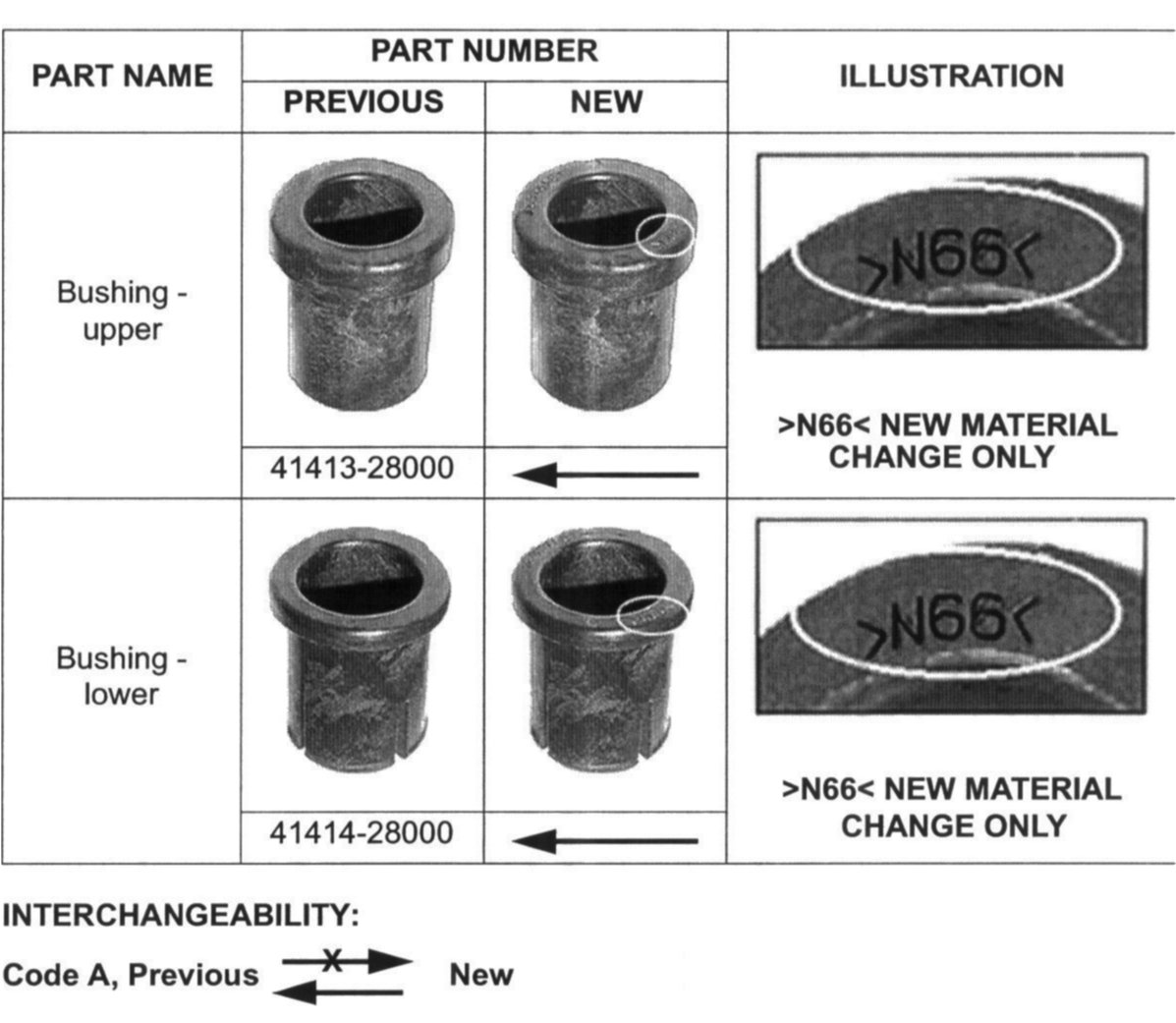

PARTS INFORMATION





NOTE:
These new bushings may be used to reduce a "squeak" or "squawk" noise in vehicles produced before 11/17/01 (Transmission # 963248) using the following procedure.

PROCEDURE:

1. Confirm that the vehicle was produced before 11/17/01.

2. Confirm the "squeak" or "squawk" noise in the vehicle as follows:

^ Open the vehicle hood with the engine off

^ Have someone operate the clutch pedal

^ Listen for the noise in the top bushing area

3. Replace the upper and lower bushings with the bushings identified with the >N66< mark as shown in the "PARTS INFORMATION" in this TSB. Follow the bushing replacement procedure outlined in the appropriate shop manuals.

NOTE:
All Hyundai parts distribution centers have new bushings in stock.
