Data Link Connector
Data Link Details (Part 1 Of 2):
Data Link Details (Part 2 Of 2):

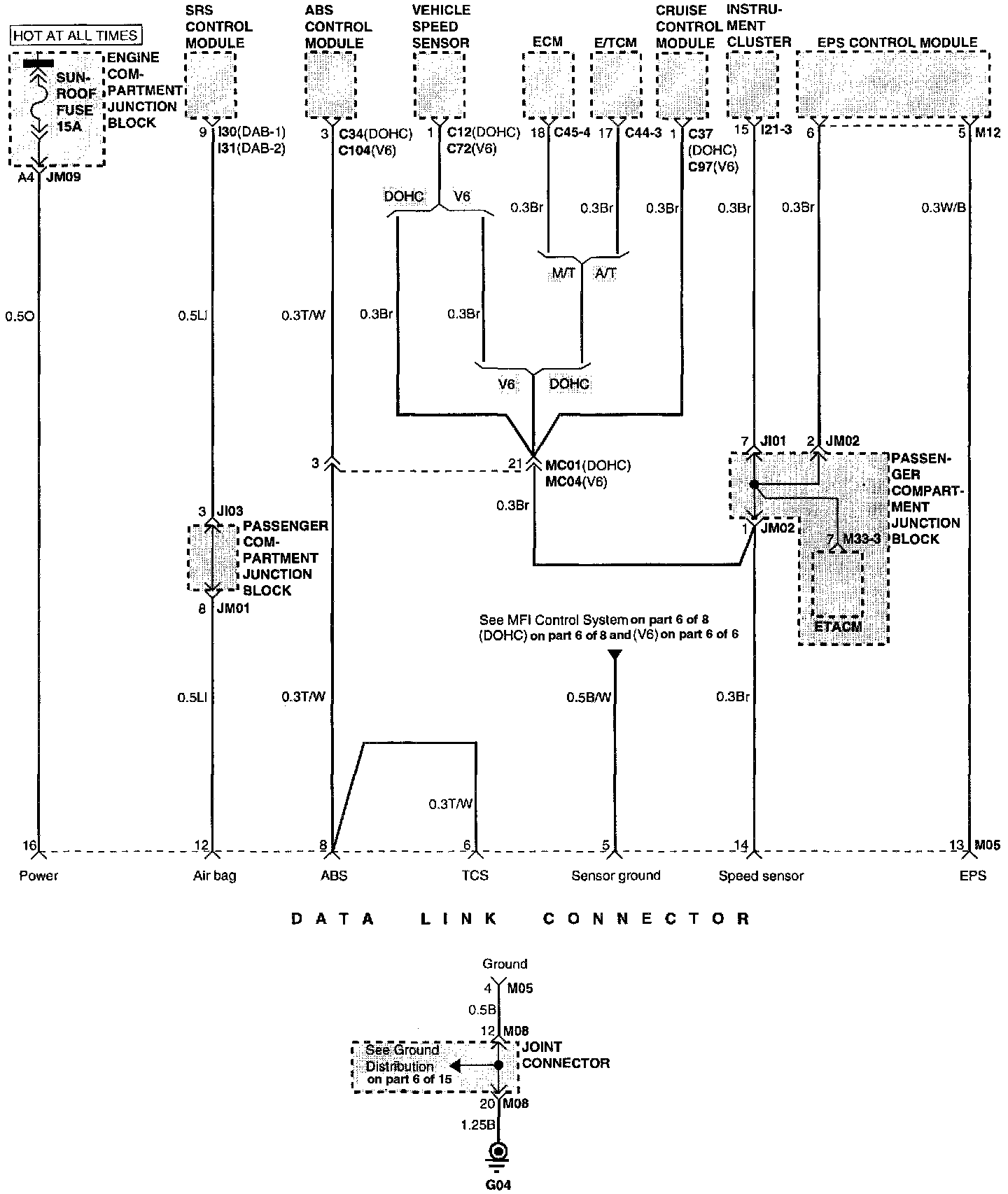

Electrical Diagrams
Connector Configurations Are Found At Vehicle / Diagrams / Connector Views.
Connector And Component Locations Are Found At Data Link Connector / Locations.
Locations
