Radio/Stereo

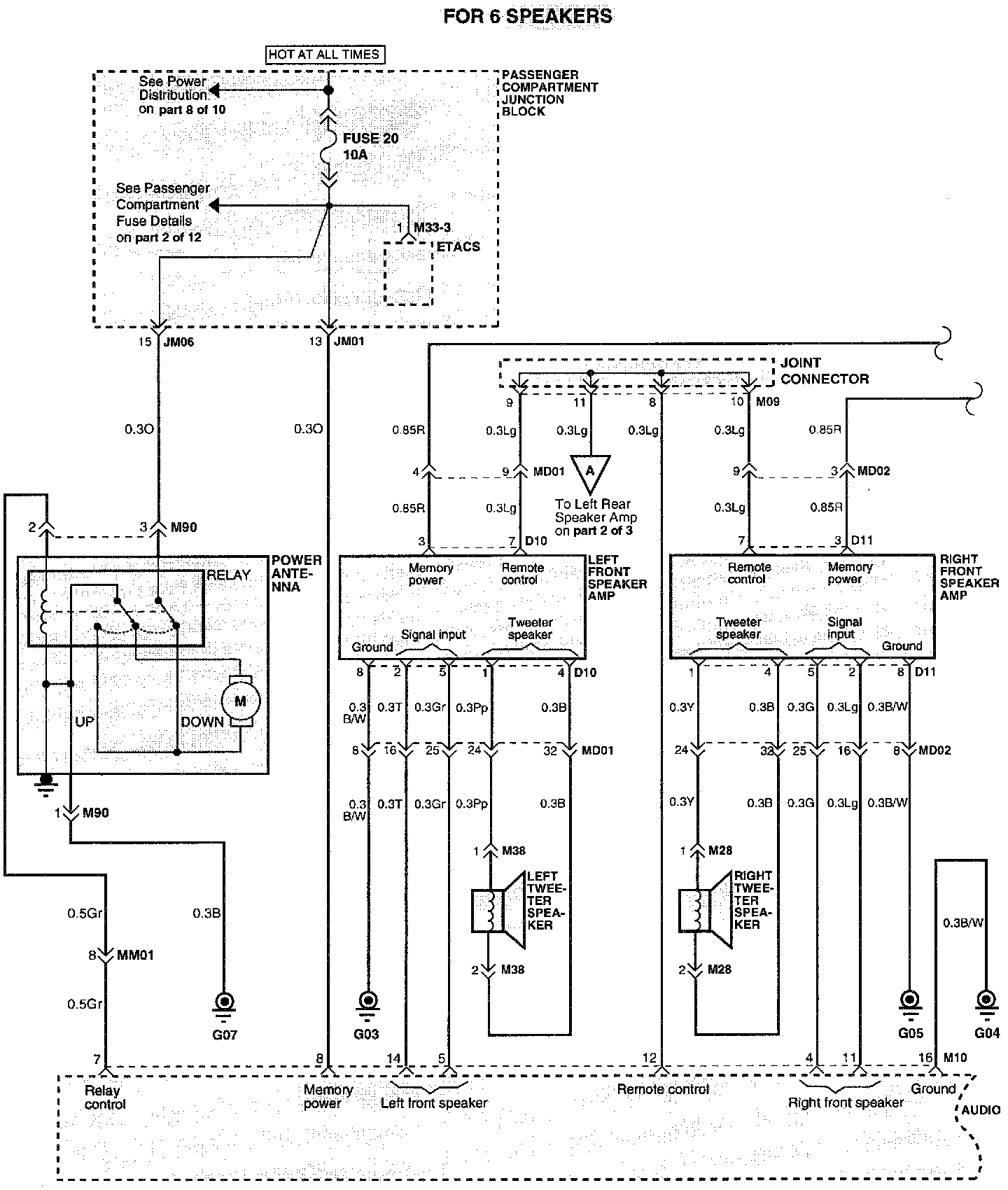

Audio System (Part 1 Of 3):

(Part 1 of 3)
Audio
Left Front Speaker AMP
Passenger Compartment Junction Block
Power Antenna
- Relay
Right Front Speaker AMP

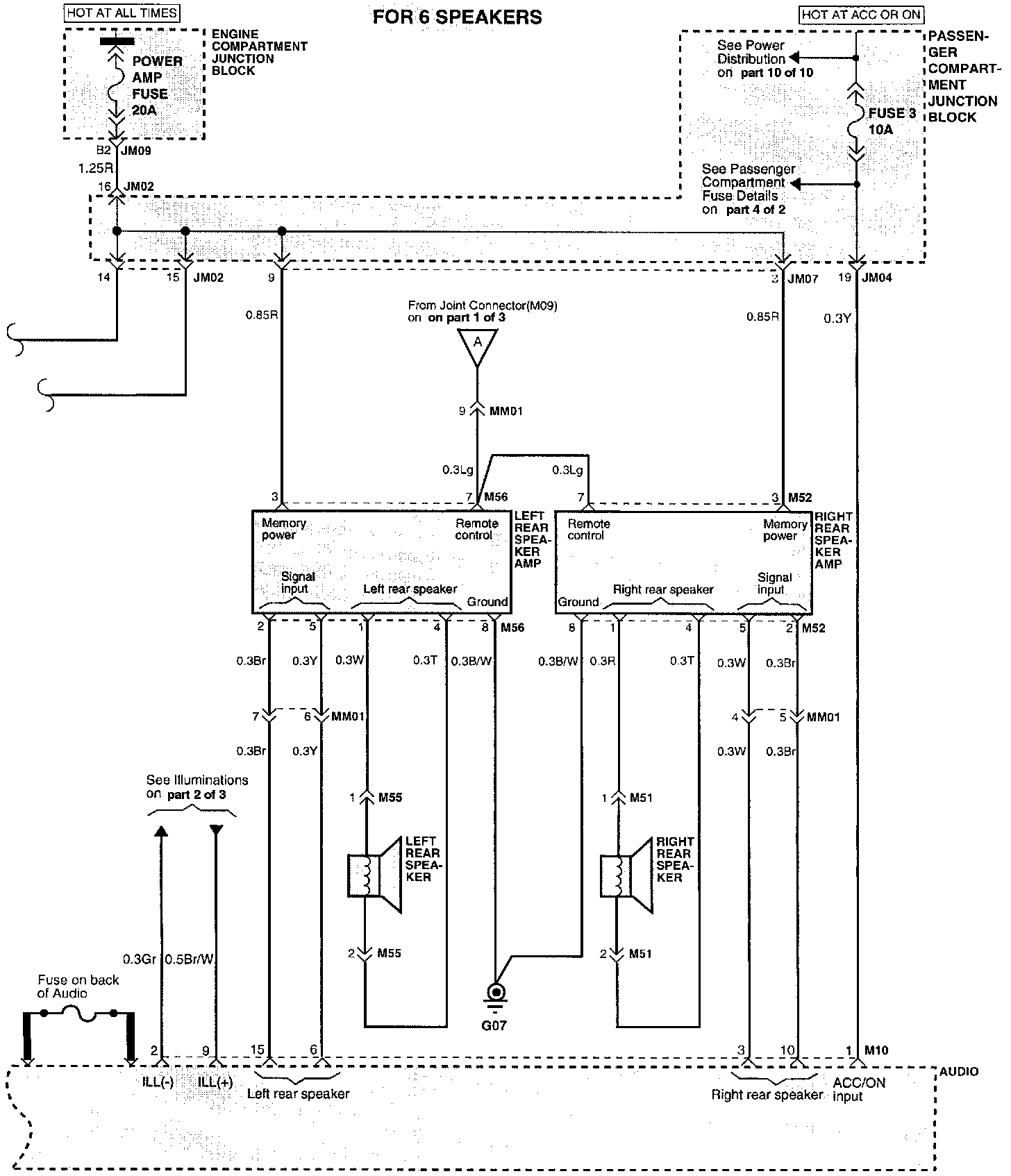

Audio System (Part 2 Of 3):

(Part 2 of 3)
Audio
Engine Compartment Junction Block
Left Rear Speaker AMP
Passenger Compartment Junction Block
Right Rear Speaker AMP

Audio System (Part 3 Of 3):

(Part 3 of 3)
Audio
Passenger Compartment Junction Block
- ETACS
Power Antenna
- Relay

Connector Configurations Are Found At Vehicle / Diagrams / Connector Views.
Connector Views

Connector And Component Locations Are Found At Radio/Stereo / Locations.
Locations
