Control Harness

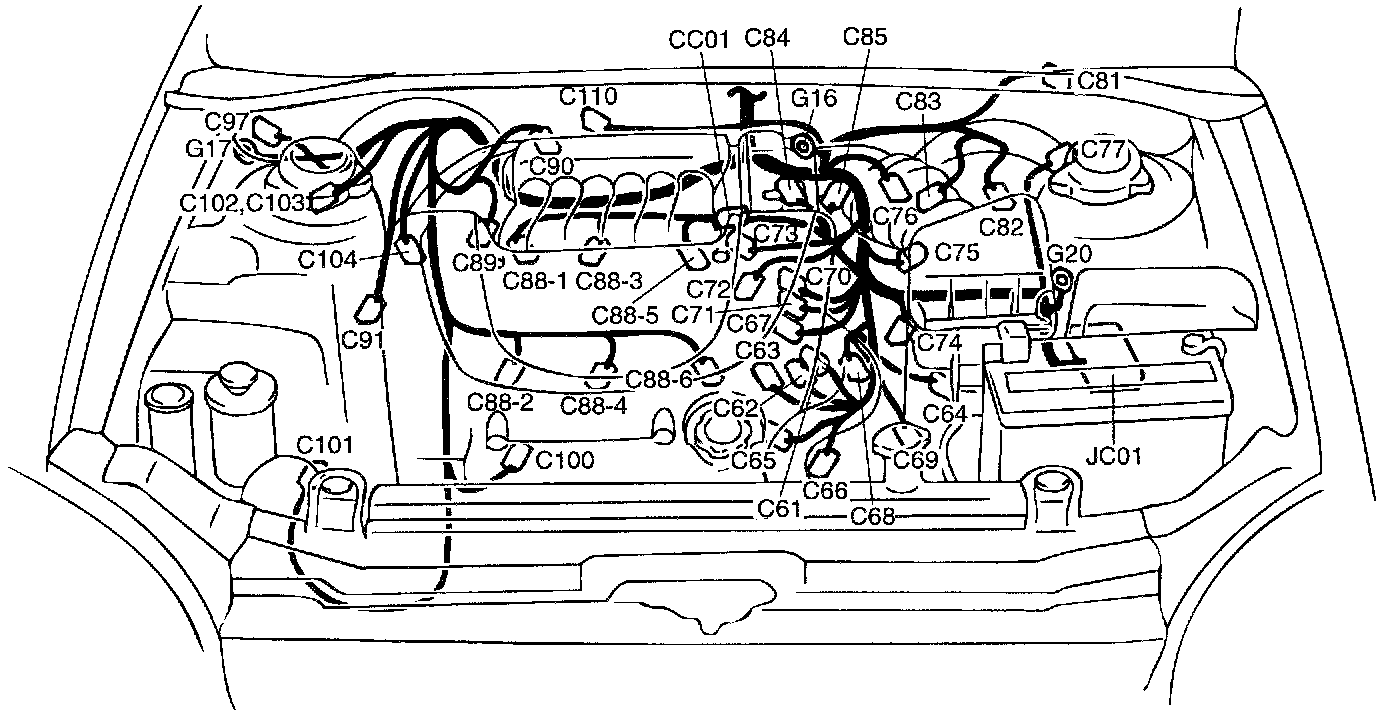

Harness Layout

C61 Engine coolant temperature sender
C62 Engine coolant temperature sensor
C63 Ignition coil
C64 A/T solenoid assembly
C65 Crankshaft position sensor
C66 Rear oxygen sensor (Bank2/Sensor2)
C67 Camshaft position sensor
C68 A/T pulse generator - A
C69 Transaxle range switch
C70 Knock sensor 1
C71 Knock sensor - 2
C72 Vehicle speed sensor
C73 Front oxygen sensor (Bank1/Sensor1)
C74 Back up lamp switch (M/T)
C75 A/T pulse generator - B
C76 Electronic power steering solenoid
C77 Left front wheel sensor
C81 Wiper motor
C82 Brake fluid level sensor
C83 Mass air flow sensor
C84 Idle speed control actuator
C85 Throttle position sensor
C88-1 Injector #1
C88-2 Injector #2
C88-3 Injector #3
C88-4 Injector #4
C88-5 Injector #5
C88-6 Injector #6
C89 Rear oxygen sensor (BankllSensor2)
C90 Intake air temperature sensor
C91 Generator
C97 Cruise control module
C100 Front oxygen sensor (Bank2/Sensor1)
C101 Oil pressure switch
C102 Right front wheel sensor (Without ABS)
C103 Right front wheel sensor
C104 ABS control module
C110 Purge control solenoid valve
CC02 Connection with INJECTOR harness
JC02 Connection with ENGINE COMPARTMENT JUNCTION BLOCK
G16 Dash ground
G17 ABS ground
G20 Engine compartment junction block ground
