Ground Distribution
Ground Distribution (Part 1 Of 15):
(Part 1 of 15)
DRL Control Module
Right Front Fog Lamp
Right Front Park/Turn Signal Lamp
Right Head Lamp
Right Horn
Ground Distribution (Part 2 Of 15):
(Part 2 of 15)
Engine Compartment Junction Block
- Radiator Fan Relay (Low)
- Wiper Relay
Hood Switch
Left Front Park/Turn Signal Lamp
Left Front Fog Lamp
Left Head Lamp
Left Horn
Ground Distribution (Part 3 Of 15):
(Part 3 of 15)
Joint Connector
Left Front Speaker AMP
Left Vanity Lamp
Map Lamp
Multifunction Switch
Overhead Console Assembly
Passenger Compartment Junction Block
- ETACM
Right Vanity Lamp
Room Lamp
Ground Distribution (Part 4 Of 15):
(Part 4 of 15)
Door Key Hole Illumination
Joint Connector
Left Door Mirror
Left Door Unlock Switch
Left Front Door Lock Actuator
Power Door Main Switch
Power Door Mirror Switch
Ground Distribution (Part 5 Of 15):
(Part 5 of 15)
Audio
Electronic Power Steering Control Module
Joint Connector
Keyless Entry Control Module
Multifunction Switch
TCS Switch
Ground Distribution (Part 6 Of 15):
(Part 6 of 15)
A/C Control Switch
Ashtray ILL.
Blower Relay
Blower Switch
Cigarette Lighter
Cruise Clutch Pedal Position Switch
Joint Connector
Left Side Marker Lamp
Multifunction Switch
Passenger Compartment Relay Box
- Flasher Unit
Steering Angle Sensor
Thermostatic Switch
Ground Distribution (Part 7 Of 15):
(Part 7 of 15)
A/C Module
Digital clock
Glove Box Lamp Switch
Instrument Cluster
Joint Connector
Rheostat
Ground Distribution (Part 8 Of 15):
(Part 8 of 15)
Blend Door Actuator
Blower Switch
Fuel Sender & Fuel Pump Motor
Instrument Cluster
High blower Relay
Joint Connector
Power Transistor
Right Door Mirror
Right Door Unlock Switch
Right Front Door Lock Actuator
Right Front Speaker AMP
Right Side Marker Lamp
Ground Distribution (Part 9 Of 15):
(Part 9 of 15)
Front Height Adjuster Power Seat Adjuster Switch
Fuel Sender & Fuel Pump Motor
Left Rear Door Switch
Left Rear Speaker AMP
Power Antenna
Rear Height Adjuster
Right Rear Speaker AMP
Seat Belt Switch
Slide Adjuster Limit Switch
Ground Distribution (Part 10 Of 15):
(Part 10 of 15)
High Mounted Stop Lamp ((Glass) & (Spoiler))
Left Rear Door Lock Actuator
Trunk Unlock Switch
Ground Distribution (Part 11 Of 15):
(Part 11 of 15)
Passenger Presence Detection Sensor
Rear Window Defogger (-)
Right Rear Door Lock Actuator
Right Rear Door Switch
SRS Control Module
Ground Distribution (Part 12 Of 15):
(Part 12 of 15)

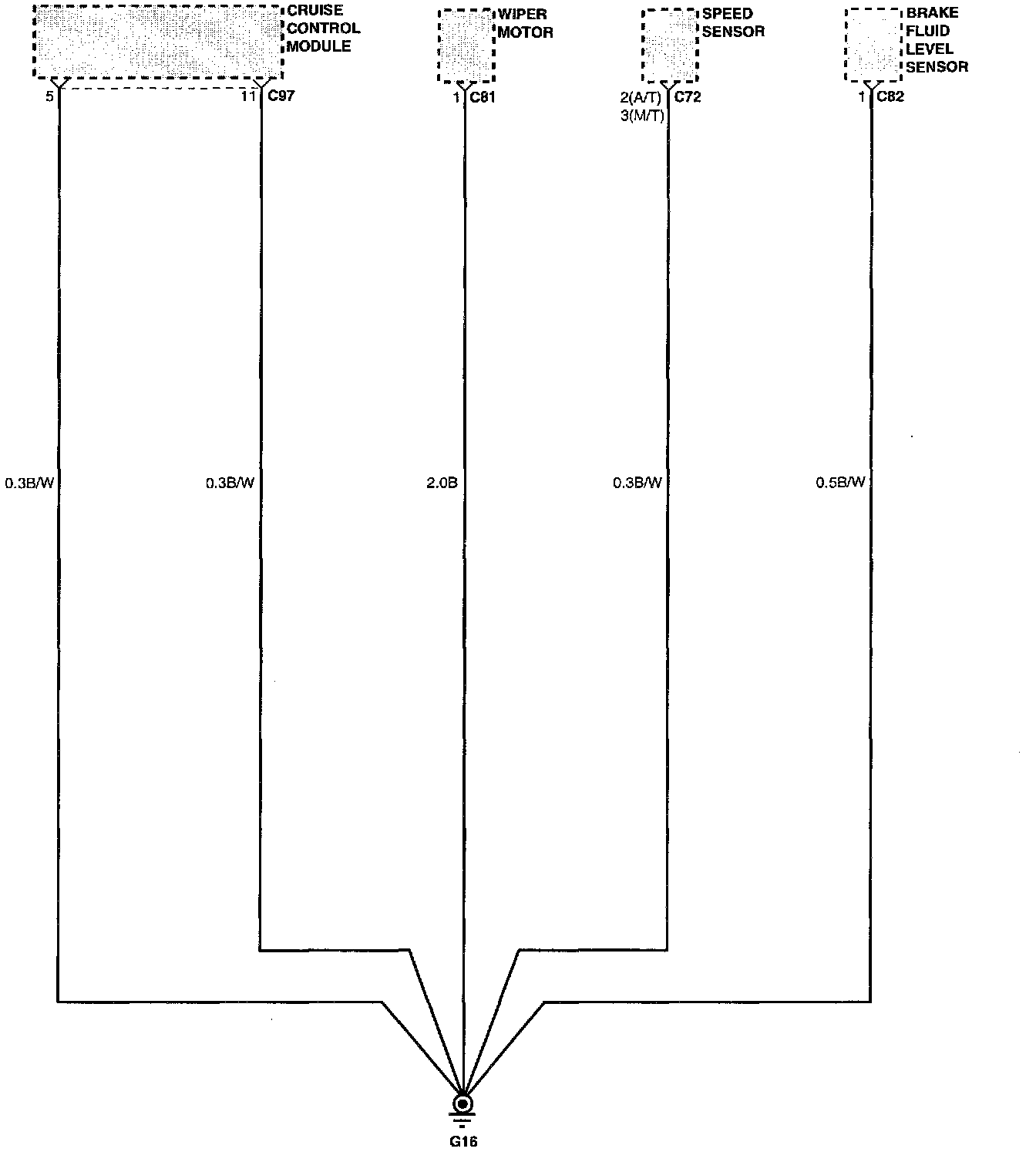

Brake Fluid Level Sensor
Cruise Control Module
Speed Sensor
Wiper Motor
Ground Distribution (Part 13 Of 15):
(Part 13 of 15)

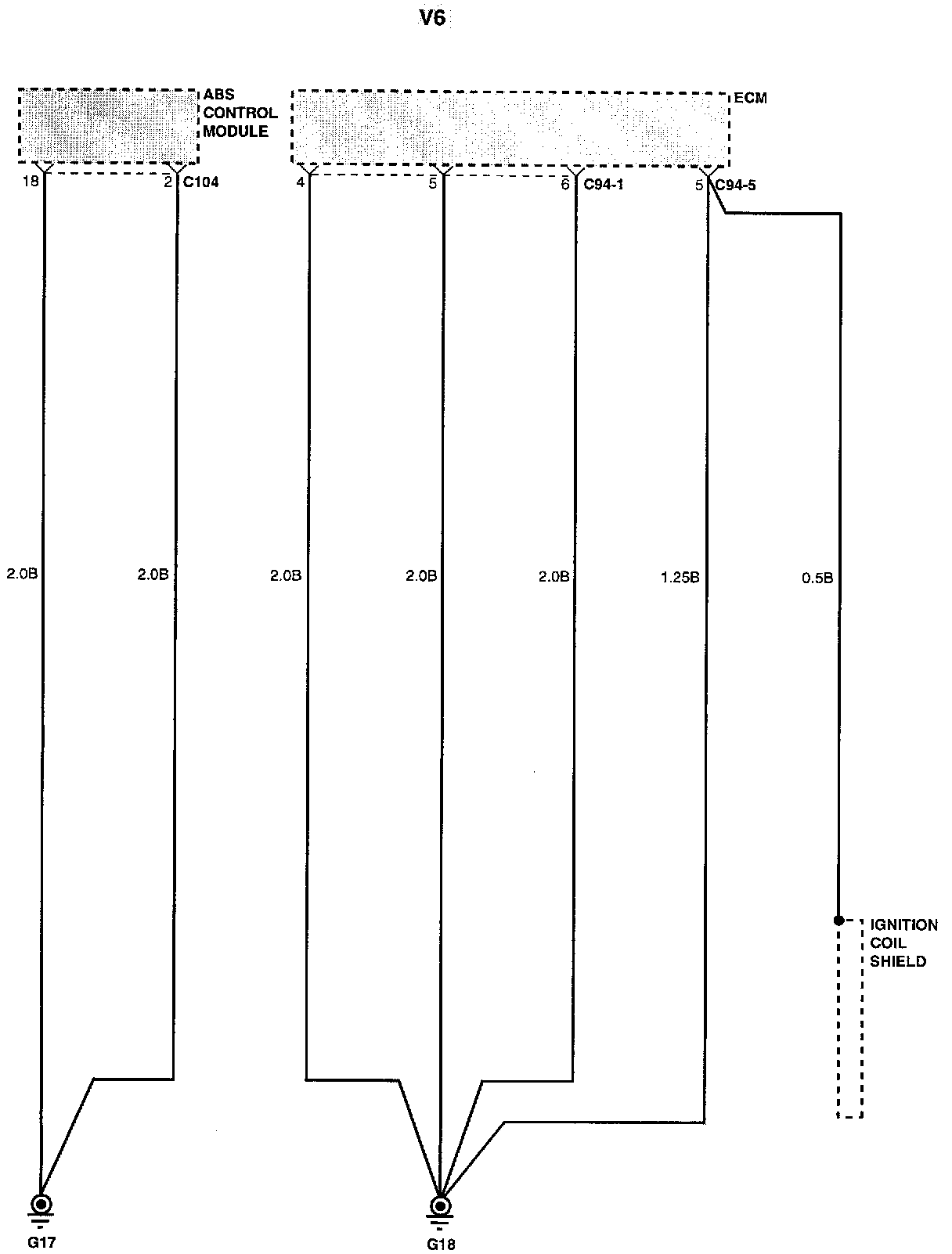

ABS Control Module
ECM
Ignition Coil Shield
Ground Distribution (Part 14 Of 15):
(Part 14 of 15)
Automatic Transaxle Control Relay
Engine Compartment Junction Block
- Condenser Fan Relay (Low & High-1)
- Radiator Fan Relay (High-1)
- Start Relay
Ground Distribution (Part 15 Of 15):
(Part 15 of 15)
Left Rear Combination Lamp
License Lamp
Right Rear Combination Lamp
Connector Configurations Are Found At Vehicle / Diagrams / Connector Views.
Connector Views
Connector And Component Locations Are Found At Power and Ground Distribution / Locations.
Locations
