Electrical Diagrams

��MJAutomatic Transaxle Control System:

Circuit Diagram

Electrical Diagrams

Automatic Transaxle Control System (Part 1 Of 3):

(Part 1 of 3)
Engine Compartment Junction Block
Passenger Compartment Junction Block
TCM
Transaxle Range Switch
Vehicle Speed Sensor

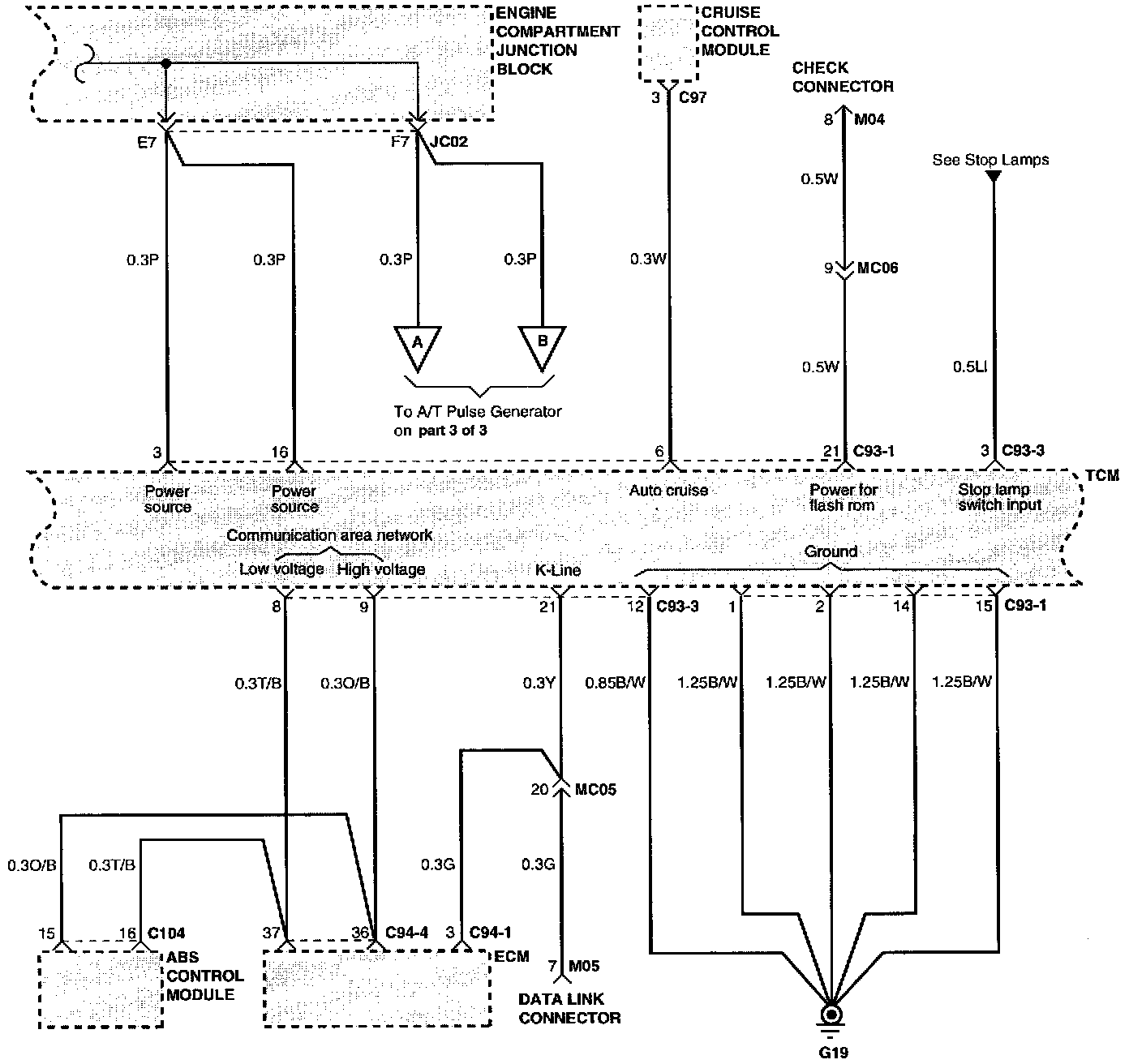

Automatic Transaxle Control System (Part 2 Of 3):

(Part 2 of 3)
ABS Control Module
Cruise Control Module
ECM
Engine Compartment Junction Block
TCM

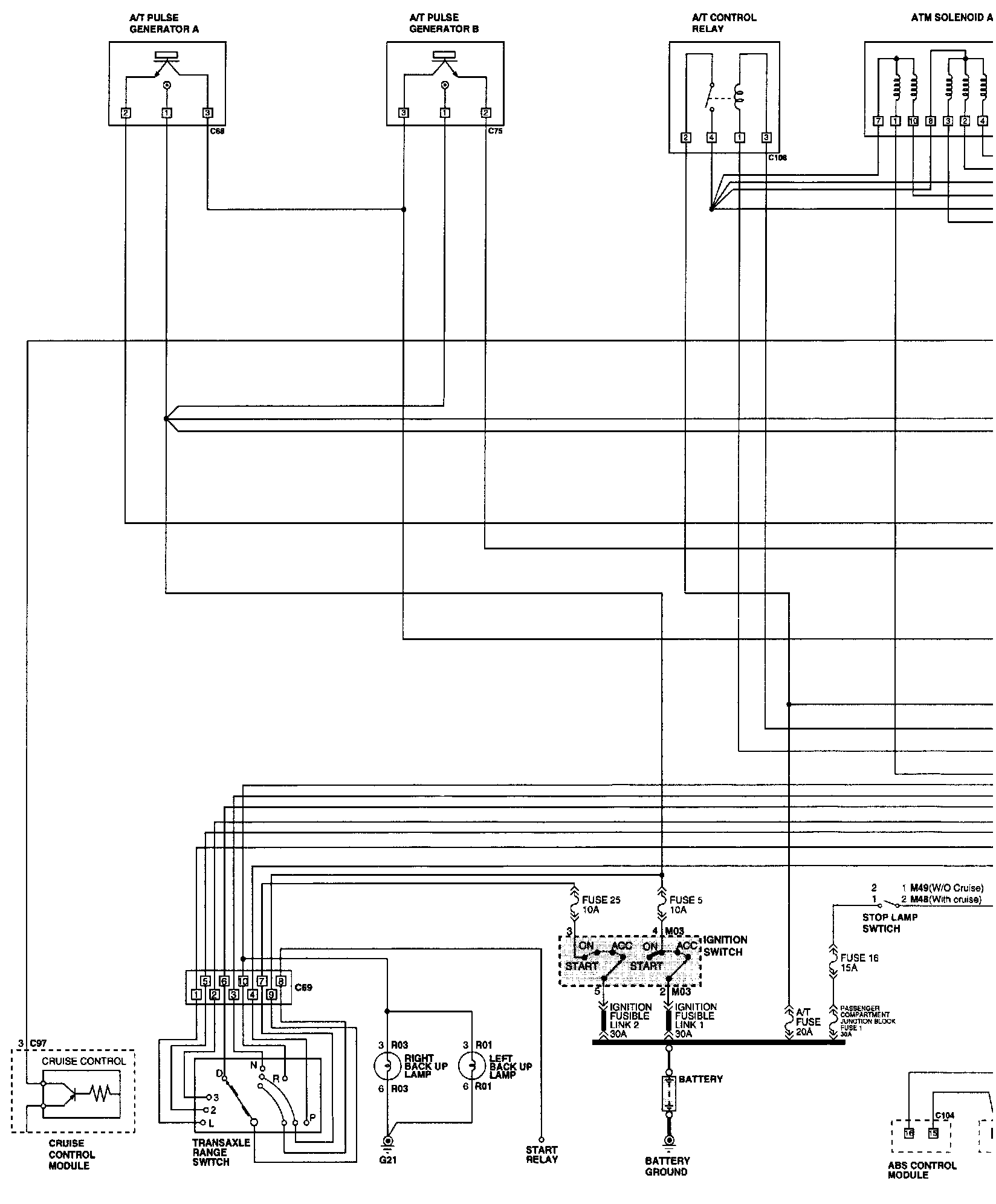

Automatic Transaxle Control System (Part 3 Of 3):

(Part 3 of 3)
A/T Control Relay
A/T Pulse Generator A & B
ATM Solenoid Assembly
Engine Compartment Junction Block
Joint Connector
TCM

Connector Configurations Are Found At Vehicle / Diagrams / Connector Views.


Connector And Component Locations Are Found At Transmission Control Systems / Locations.
