Windshield Washer Switch: Testing and Inspection

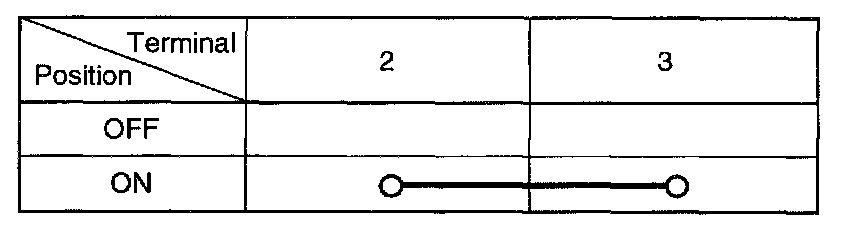

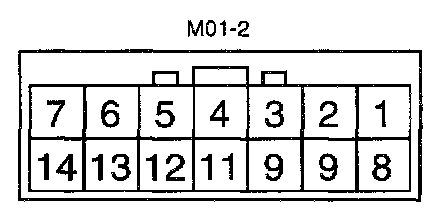

Check the Washer switch for continuity between the terminals.







If continuity is not as specified, replace the wiper and washer switch.

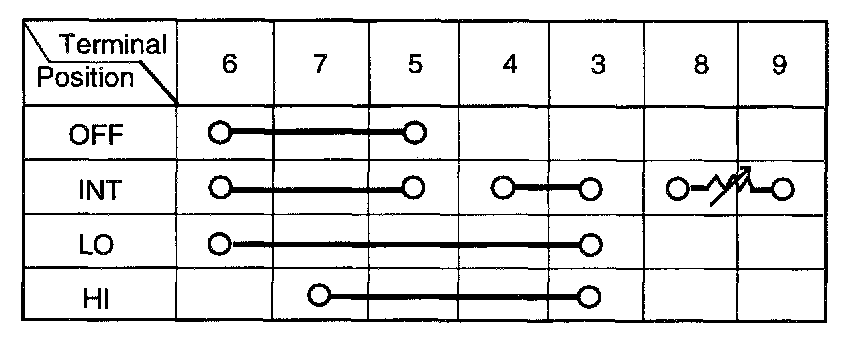

Check the Wiper and Intermittent Volume switch for continuity between the terminals.







If continuity is not as specified, replace the wiper and washer switch.
