Illumination

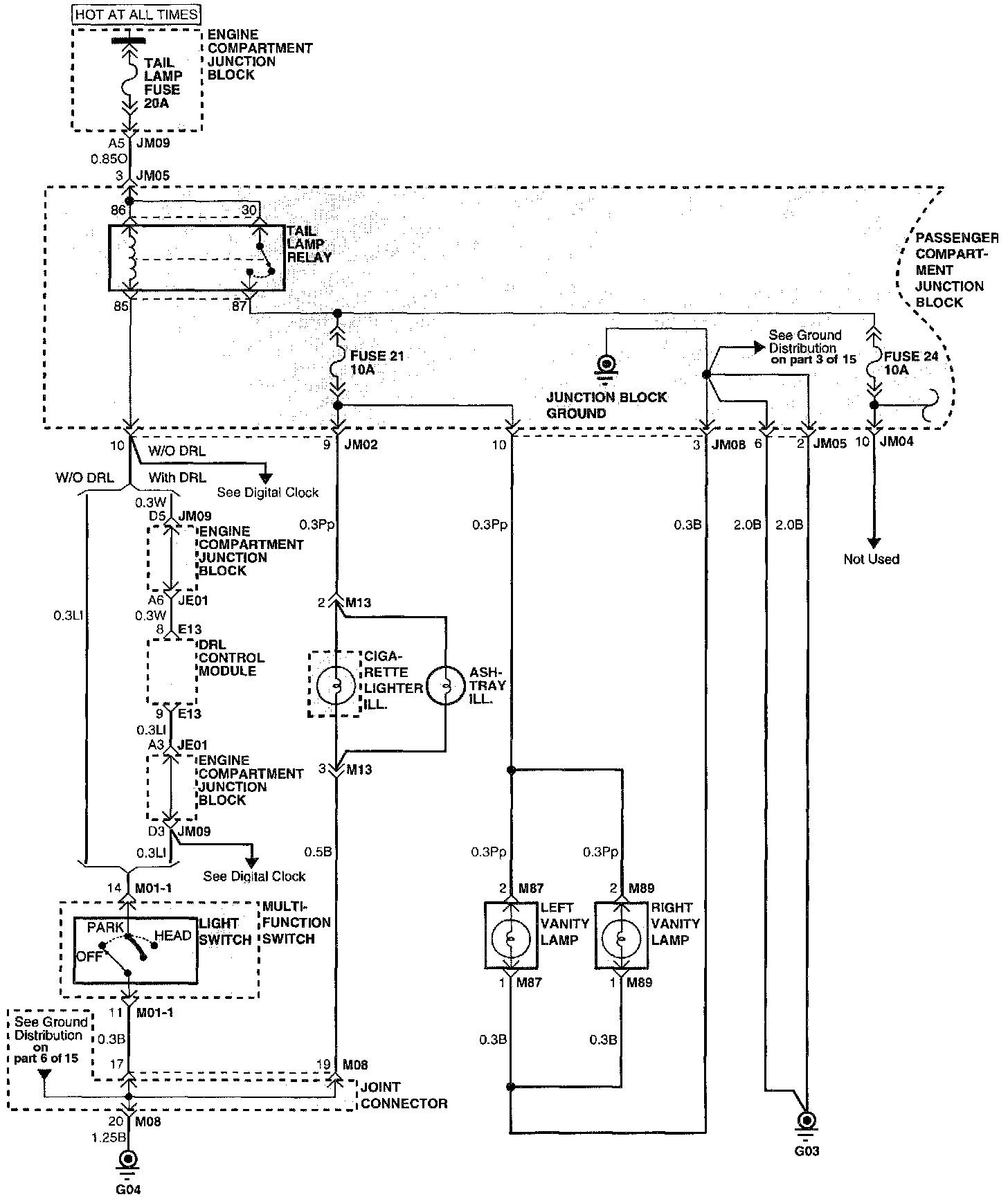

Illuminations (Part 1 Of 3):

(Part 1 of 3)
Ash Tray ILL.
Cigarette Lighter ILL.
DRL Control Module
Engine Compartment Junction Block
Joint Connector
Left Vanity Lamp
Multi Function Switch
- Light Switch
Passenger Compartment Junction Block
- Tail Lamp Relay
Right Vanity Lamp

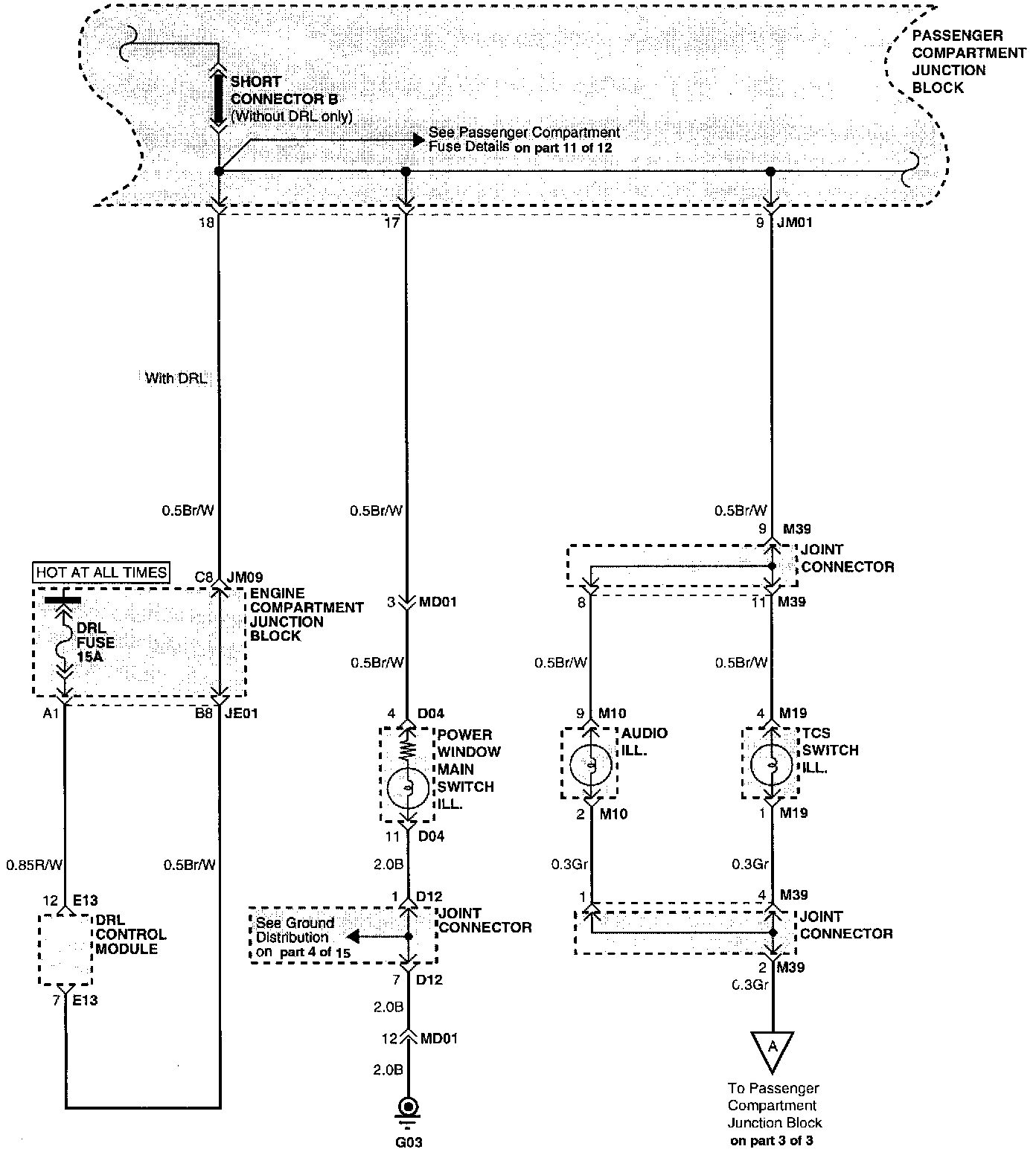

Illuminations (Part 2 Of 3):

(Part 2 of 3)
Audio ILL.
DRL Control Module
Engine Compartment Junction Block
Joint connector
Power Window Main Switch ILL.
TCS Switch ILL.

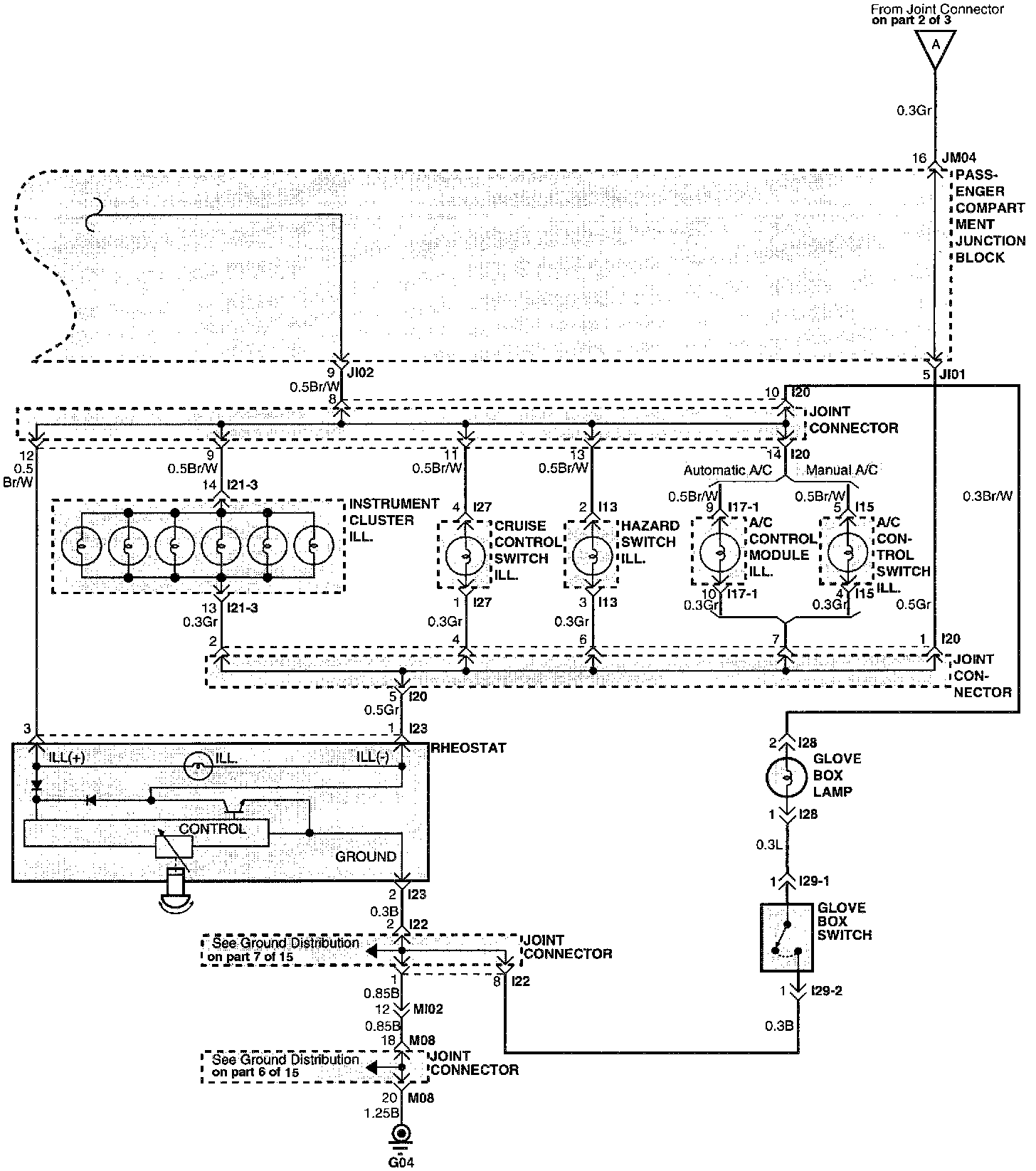

Illuminations (Part 3 Of 3):

(Part 3 of 3)
A/C Control Module ILL.
A/C Control Switch ILL.
Cruise Control Switch ILL.
Glove Box Switch
Hazard Switch ILL.
Instrument Cluster ILL.
Joint Connector
Passenger Compartment Junction Block
Rheostat

Connector Configurations Are Found At Vehicle / Diagrams / Connector Views.
Connector Views

Connector And Component Locations Are Found At Instrument Panel, Gauges and Warning Indicators / Locations.
Locations
