Steering Wheel Remote Control Inspection

Steering wheel remocon switch inspection

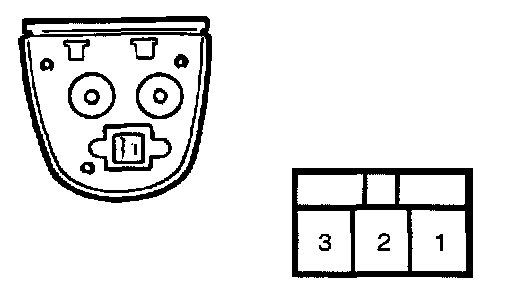

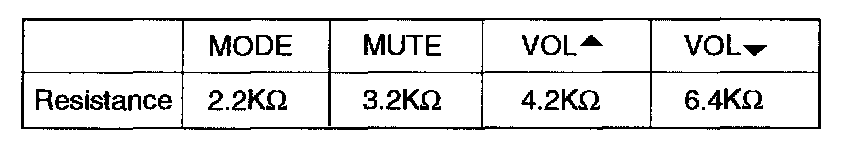

1. Check if the resistance is measured between terminal 1 and 3.
2. If the resistance between terminal 1 and 3 as not specified, replace the steering wheel remocon switch.
