Rear Door: Service and Repair

Rear Door:

COMPONENTS

REMOVAL AND INSTALLATION




1. Remove clip using a piece of cloth (Manual type only).Then the door window regulator handle.




2. Remove the rear door inside handle housing.

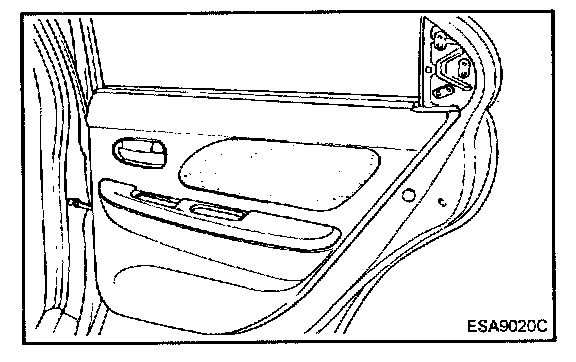

3. Remove the mounting screws (3EA) from the rear door trim panel.




4. Insert a trim panel remover between the trim fasteners and the door trim panel to pry off. Disconnect the connector.




5. Remove the door pull handle mounting bracket and door inside handle.




6. Remove the door trim seal.




7. Down the door glass and remove the door glass run and delta lower channel.

Tightening torque
Rear door glass mounting bolts: 0.8 - 1.2 kg.m (5.8 - 8.7 lb.ft)

Delta lower channel mounting bolts: 0.8 - 1.2 kg.m (5.8 - 8.7 lb.ft)




8. Remove the carrier plate mounting bolts from the door regulator channel and remove the door glass.




9. Remove the door regulator channel mounting bolts and then remove the door regulator assembly.

Tightening torque
Door regulator channel mounting bolts: 0.4 - 0.6 kg.m (2.9 - 4.4 lb.ft)




10. Loosen the door lock actuator mounting bolts and remove the latch assembly.




11. Remove the door outside handle mounting bolts.




12. Remove the waistline molding.

13. Installation is the reverse of removal.
When installing the door trim seal, butyl tape should not be placed over door trim fastener mounting area.
