Seats: Service and Repair

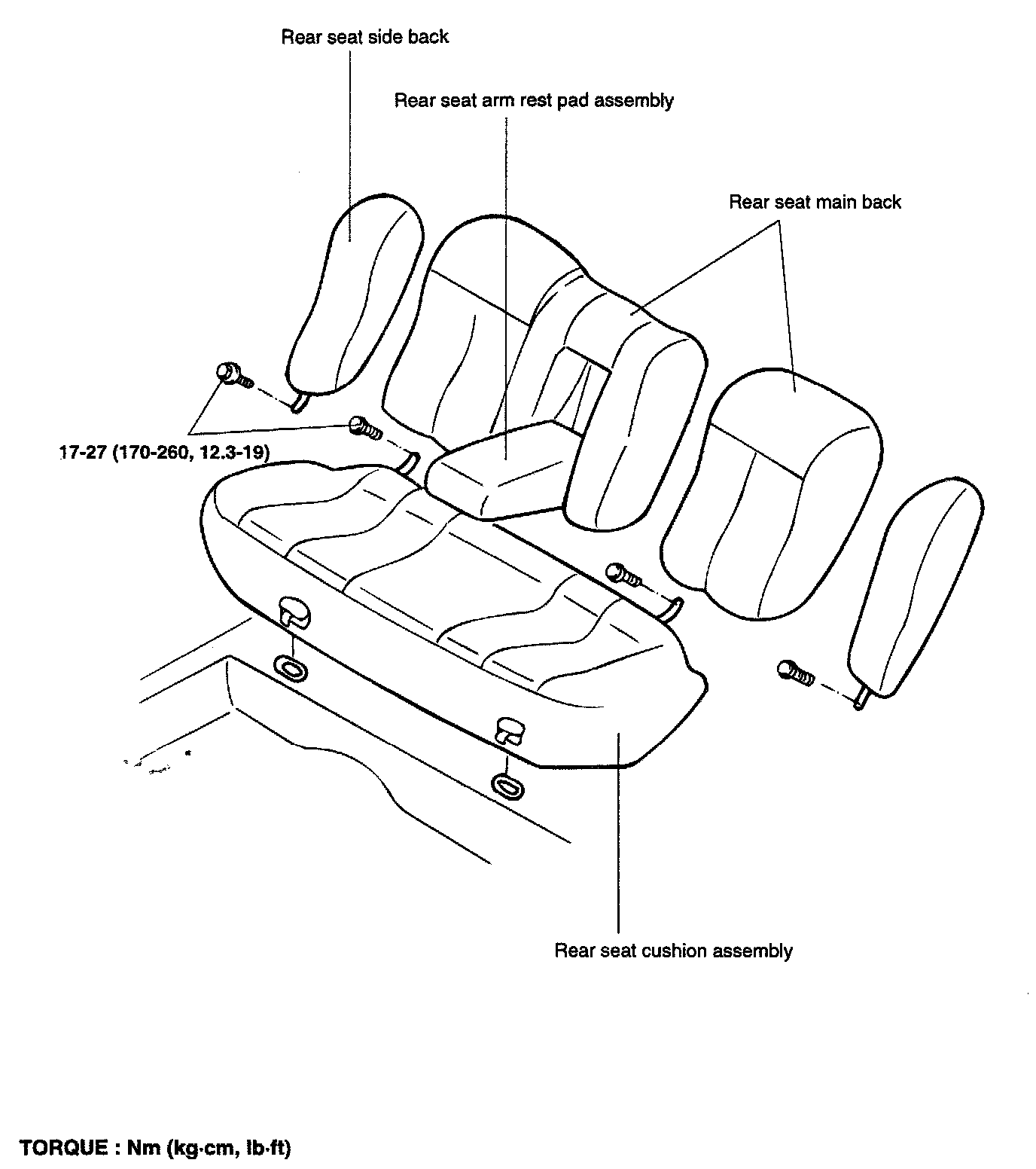

REMOVAL

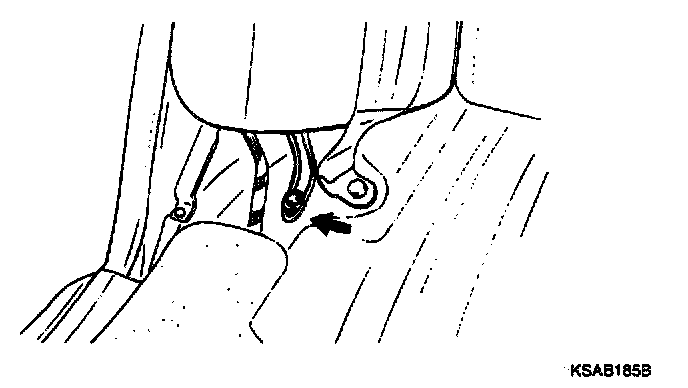

1. Pull the rear seat mounting clip.
2. Remove the seat cushion mounting bolts.
3. Remove the seat cushion.

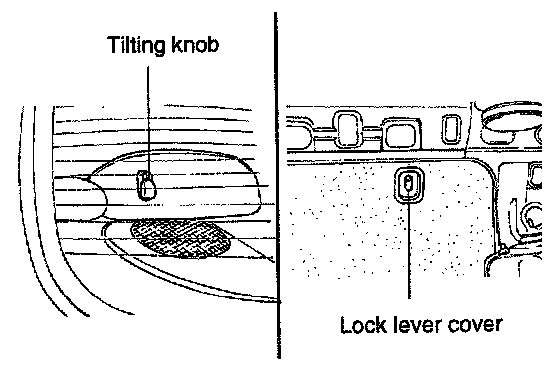

4. Remove the rear seat side back.

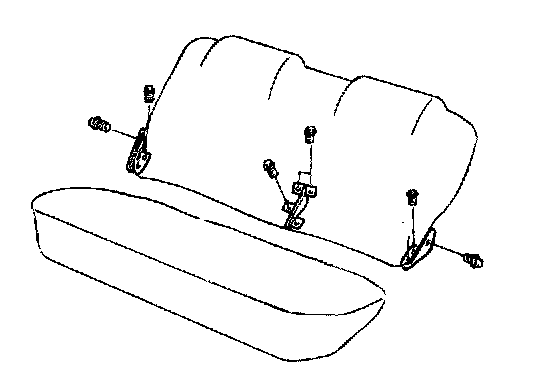

5. Set the lock lever on the rear seat mat in free position.
6. Pull the tilting knob and then pull forward the main seat.





7. Remove the rear seat back mounting bolts.
8. Remove the rear seat side back.

INSTALLATION
Installation is the reverse of the removal procedure.
