Automatic Transmission/Transaxle

XOGJAutomatic Transaxle Control System:

Circuit Diagram

Electrical Diagrams

Automatic Transaxle Control System (Part 1 Of 3):

(Part 1 of 3)
E/TCM
Engine Compartment Junction Block
Passenger Compartment Junction Block
Transaxle Range Switch
Vehicle Speed Sensor

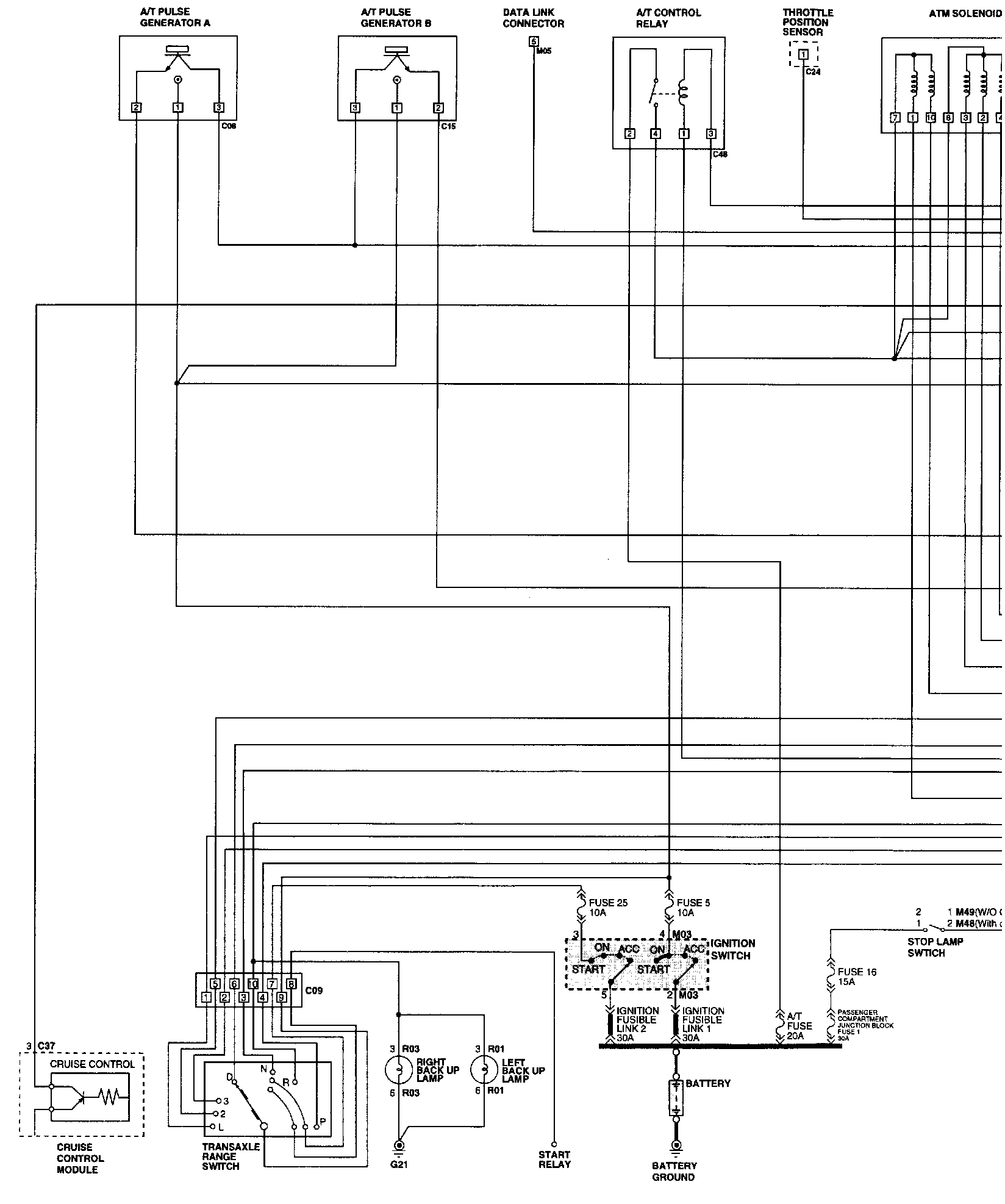

Automatic Transaxle Control System (Part 2 Of 3):

(Part 2 of 3)
A/T Pulse Generator A & B
Cruise Control Module
E/TCM
Engine Compartment Junction Block

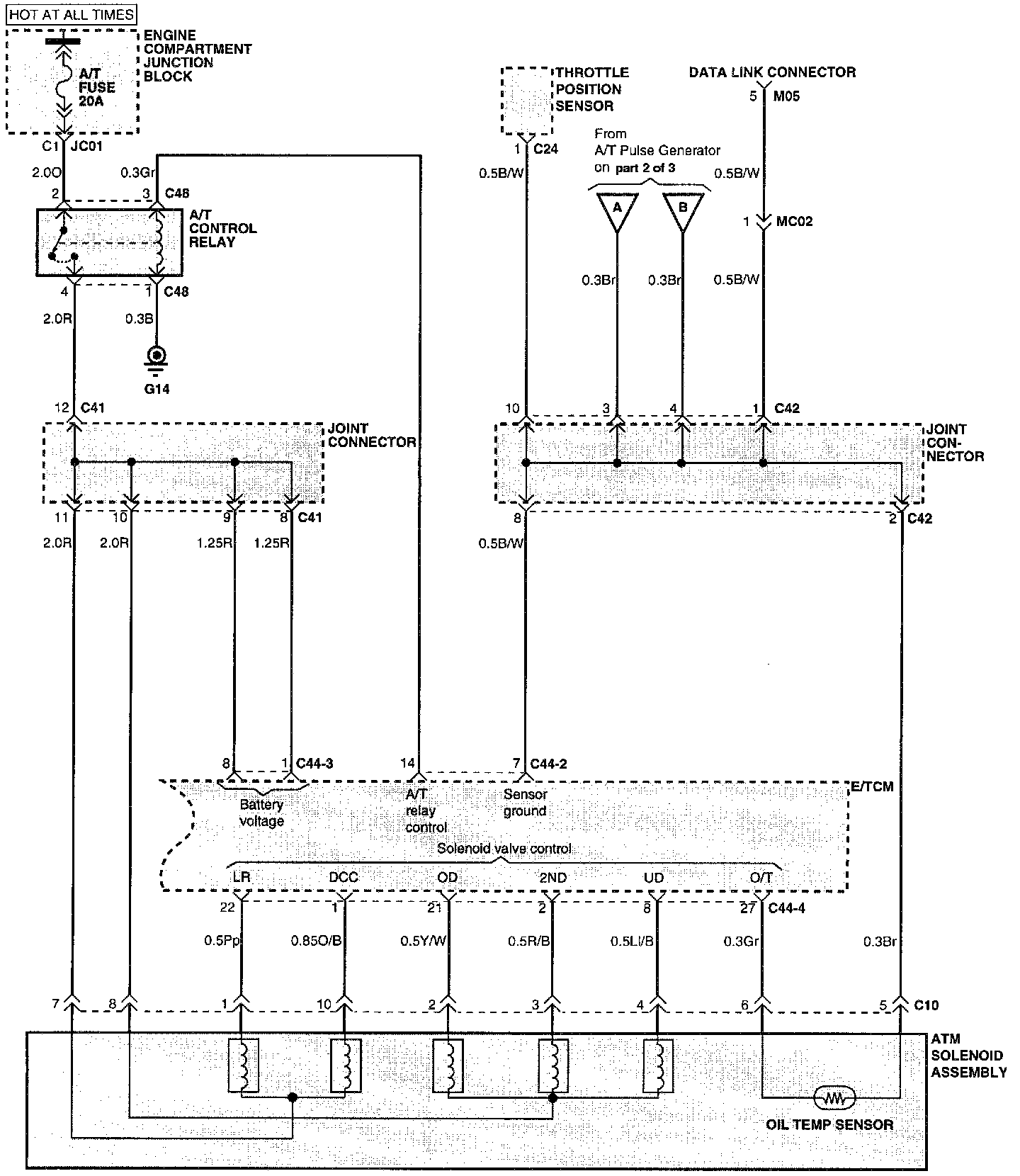

Automatic Transaxle Control System (Part 3 Of 3):

(Part 3 of 3)
A/T Control Relay
ATM Solenoid Assembly
Engine Compartment Junction Block
E/TCM
Joint Connector
Throttle Position Sensor

Connector Configurations Are Found At Vehicle / Diagrams / Connector Views.


Connector And Component Locations Are Found At Transmission Control Systems / Locations.
