Cruise Control

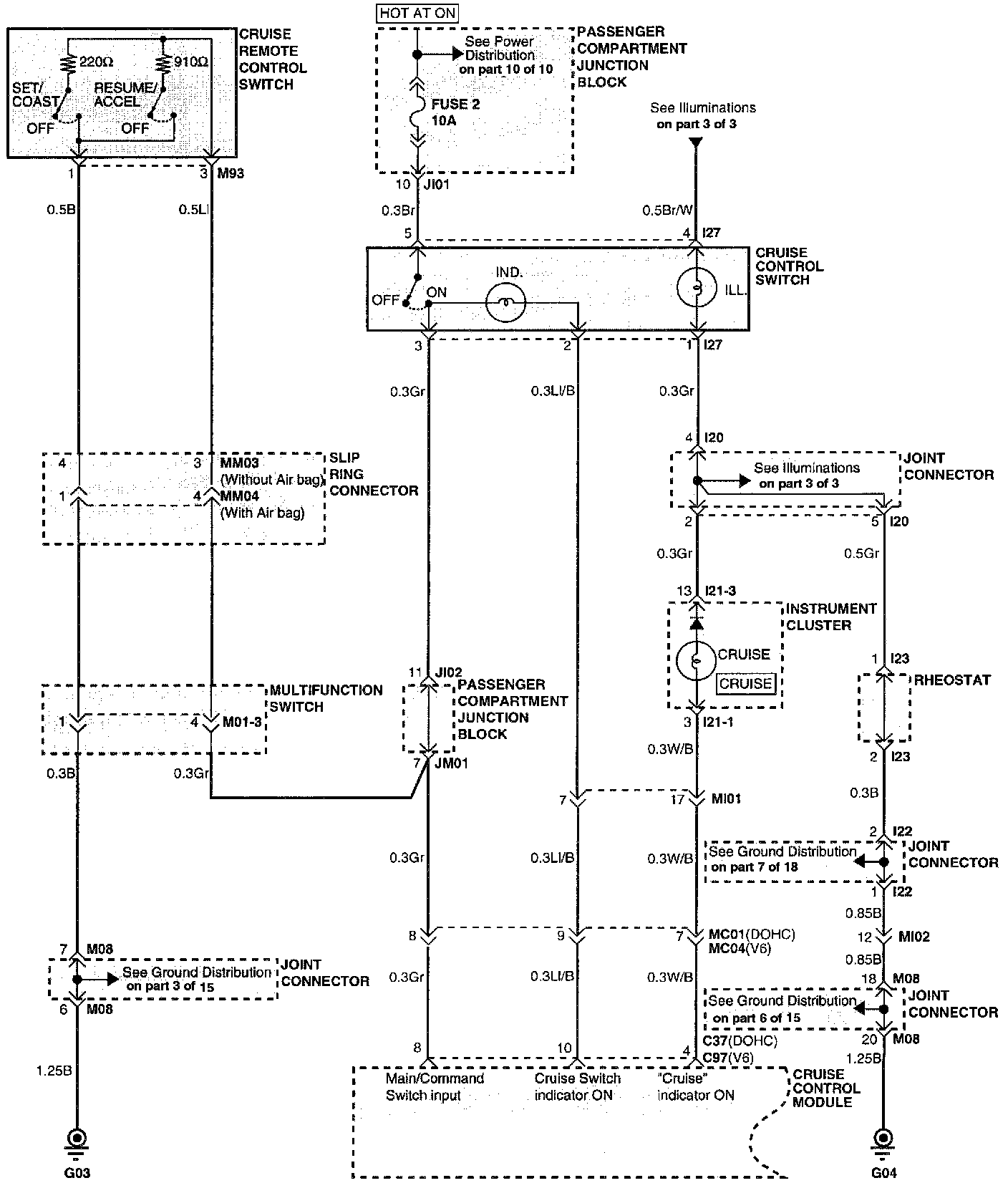

Cruise Control System (Part 1 Of 3):

(Part 1 of 3)
Cruise Control Switch
Cruise Control Module
Cruise Remote Control Switch
Instrument Cluster
Joint Connector
Multifunction Switch
Passenger Compartment Junction Block
Rheostat
Slip Ring Connector

Cruise Control System (Part 2 Of 3):

(Part 2 of 3)
Cruise Control Module
Cruise Clutch Pedal Position Switch
Engine Compartment Junction Block
Joint Connector
Passenger Compartment Junction Block
Stop Lamp Switch
Transaxle Range Switch

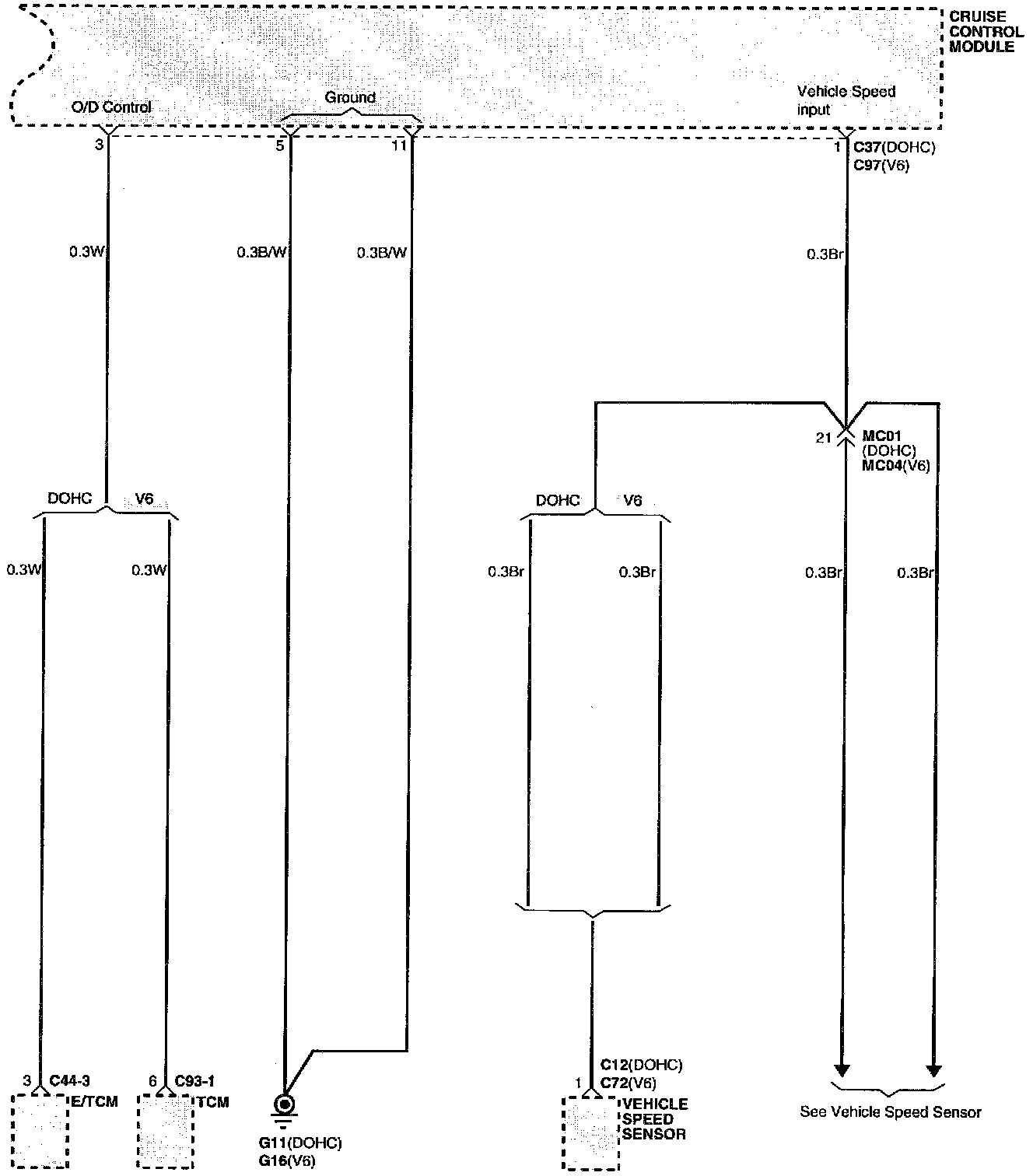

Cruise Control System (Part 3 Of 3):

(Part 3 of 3)
Cruise control Module
E/TCM
TCM
Vehicle Speed Sensor

Connector Configurations Are Found At Vehicle / Diagrams / Connector Views.
Connector Views

Connector And Component Locations Are Found At Cruise Control / Locations.
Locations
