Daytime Running Lamp

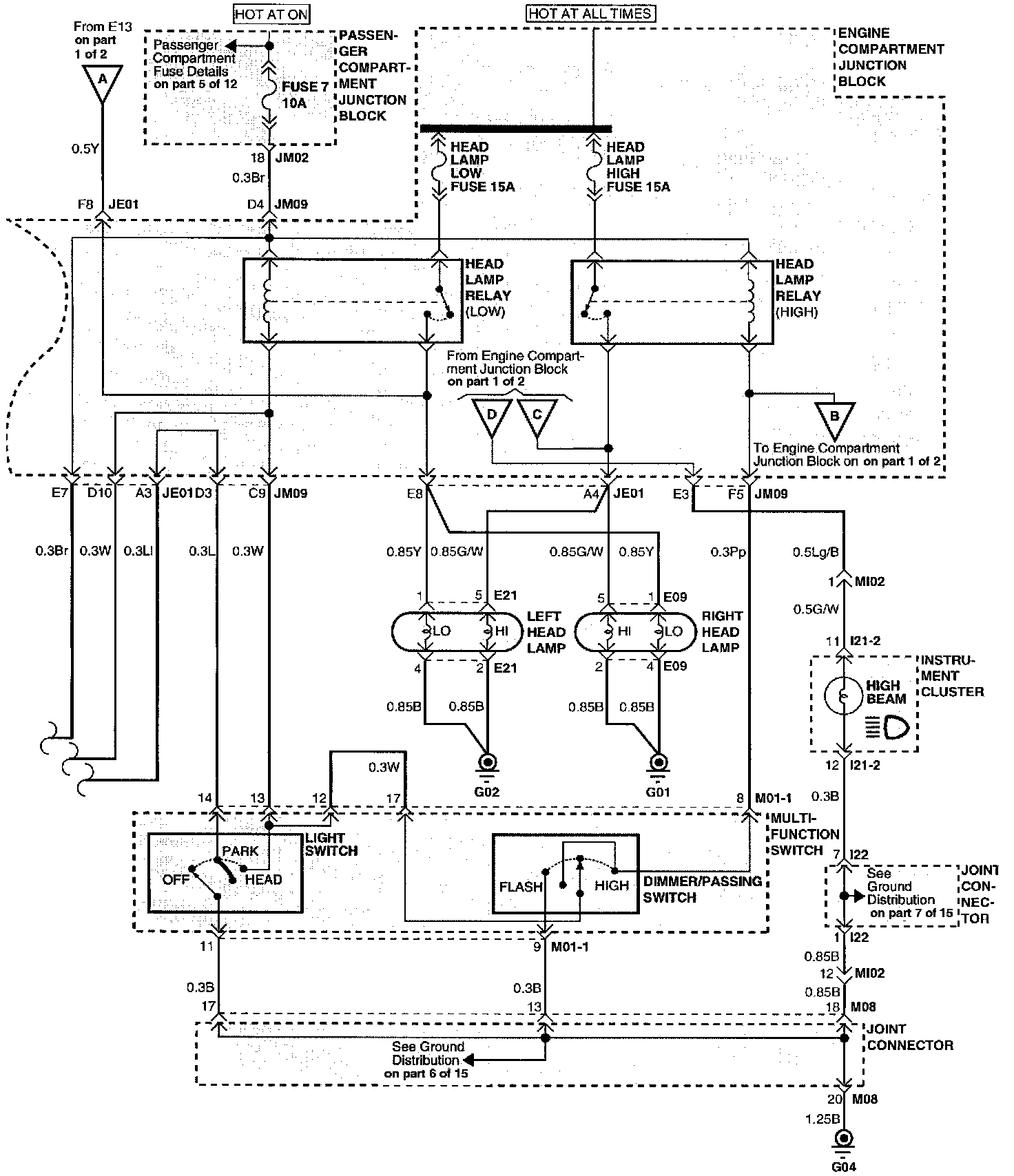

Daytime Running Lights (Part 1 Of 2):

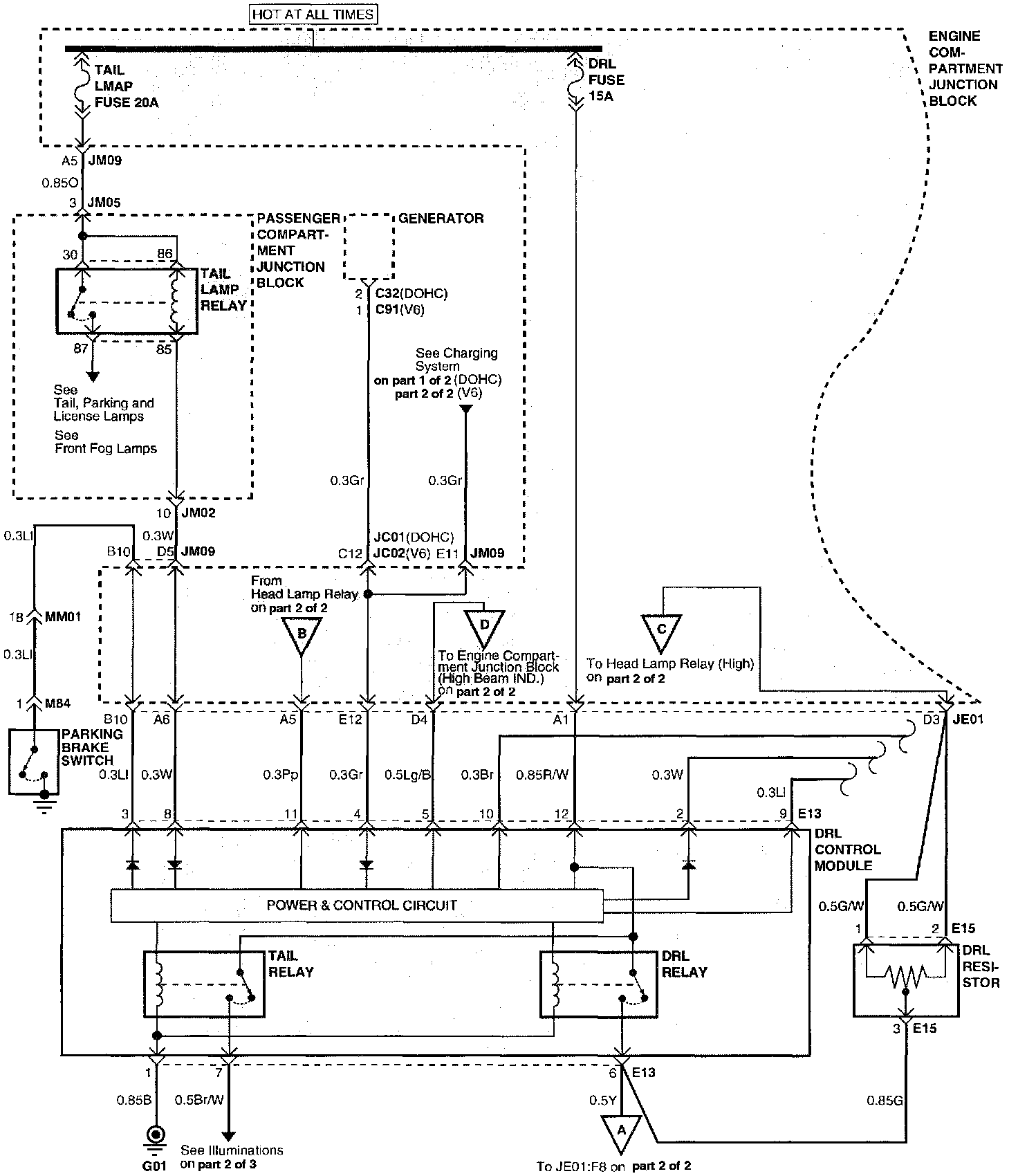

Daytime Running Lights (Part 2 Of 2):





Electrical Diagrams

Connector Configurations Are Found At Vehicle / Diagrams / Connector Views.
Connector Views

Connector And Component Locations Are Found At Daytime Running Lamp / Locations.
Locations
