Power Locks

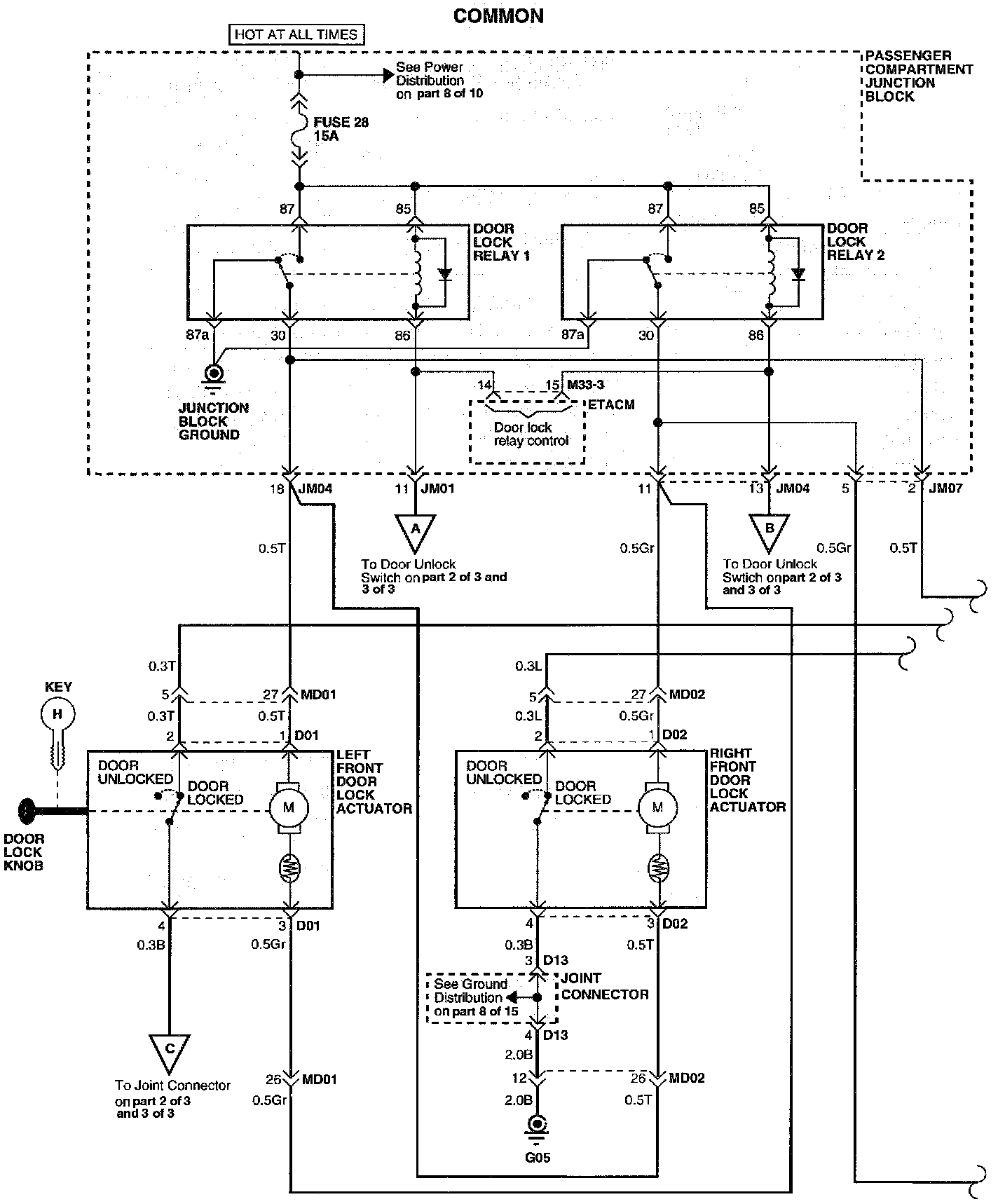

Power Door Locks (Part 1 Of 3):

(Part 1 of 3)
Joint Connector
Left Front Door Lock Actuator
Passenger Compartment Junction Block
- door Lock Relay 1 & 2
Right Front Door Lock Actuator

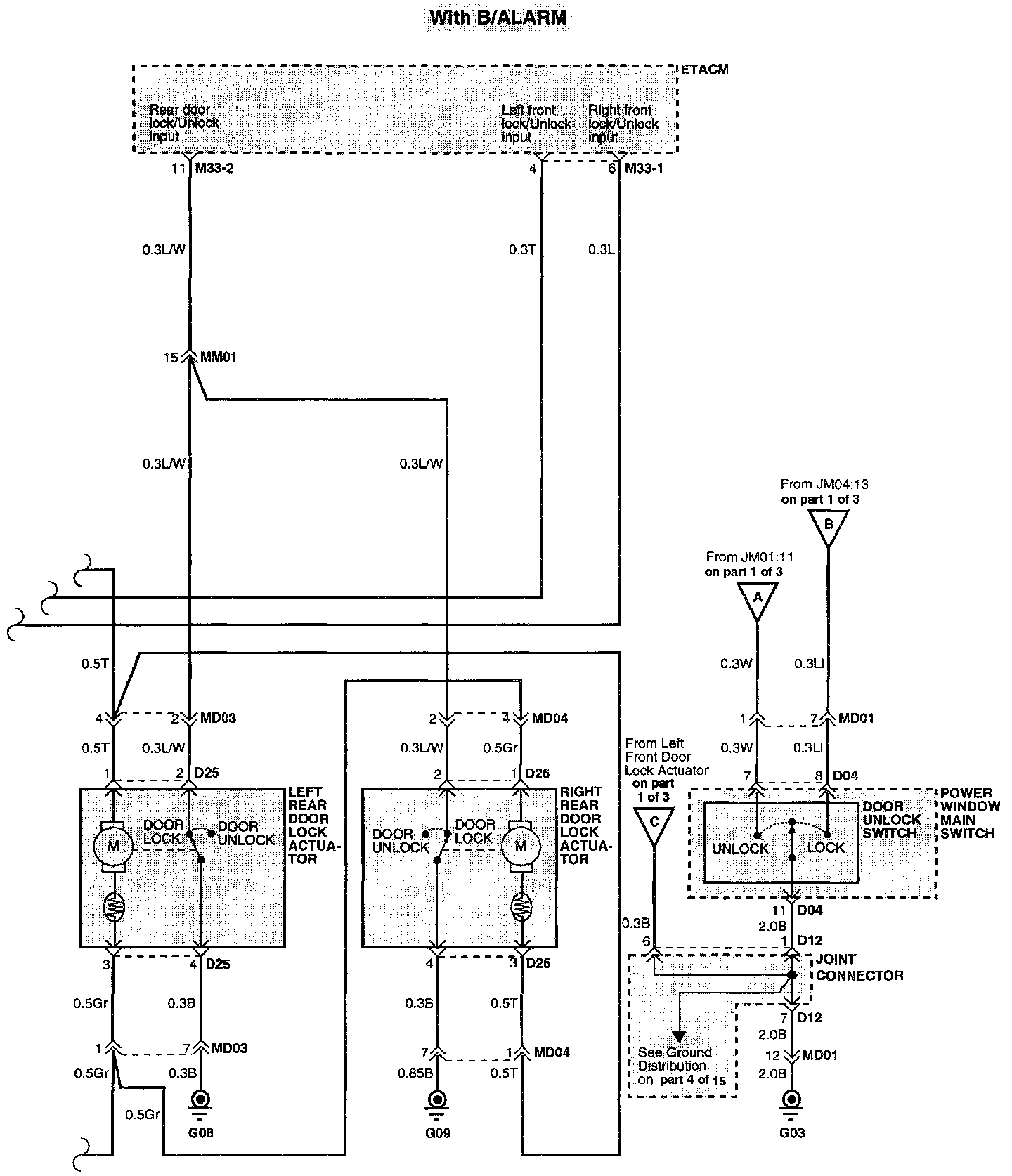

Power Door Locks (Part 2 Of 3):

(Part 2 of 3)
ETACM
Joint Connector
Left Rear Door Lock Actuator
Power Window Main Switch
Right Rear Door Lock Actuator

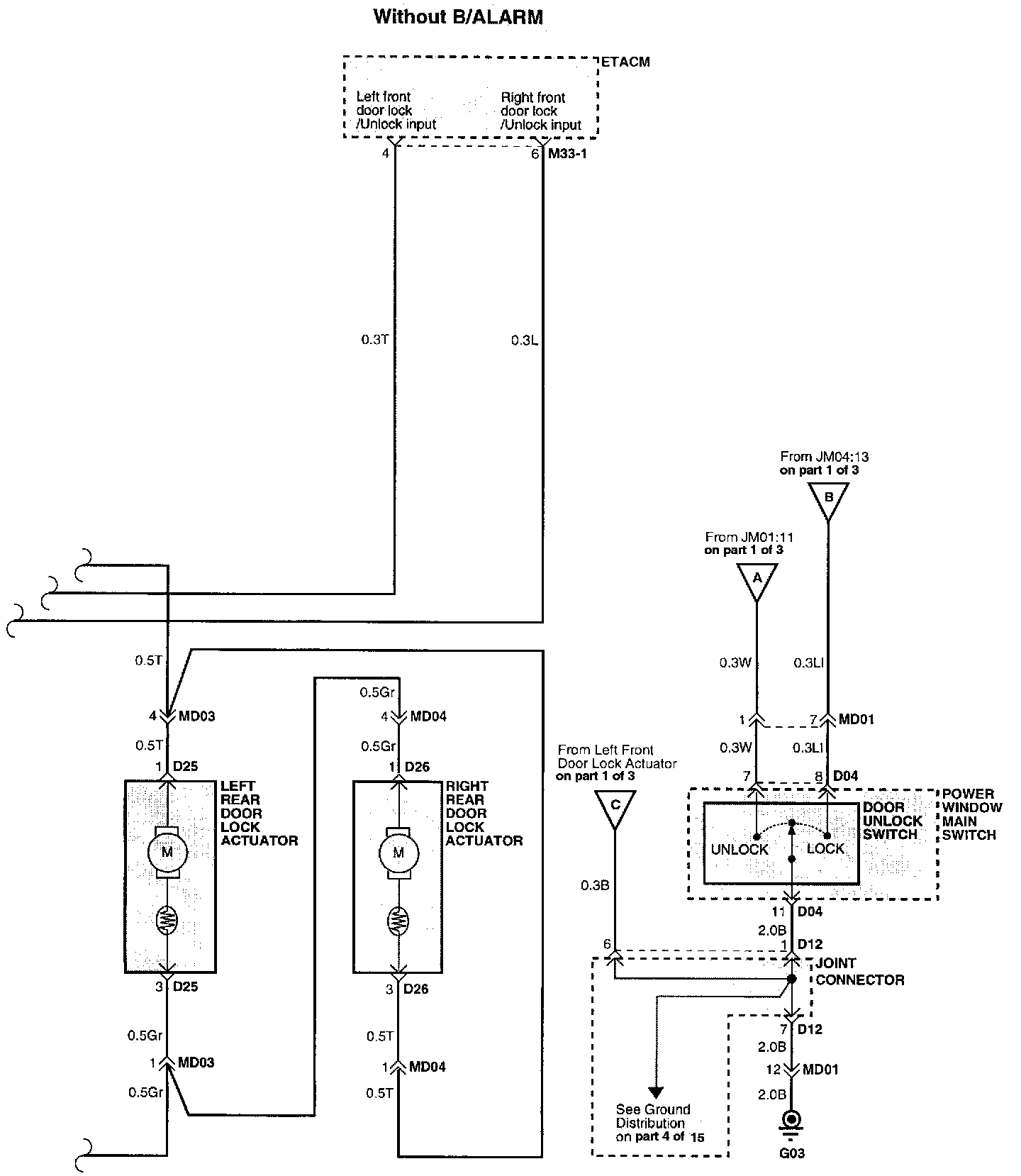

Power Door Locks (Part 3 Of 3):

(Part 3 of 3)
ETACM
Joint Connector
Left Rear Door Lock Actuator
Power Window Main Switch
Right Rear Door Lock Actuator


Connector Configurations Are Found At Vehicle / Diagrams / Connector Views.
Connector Views

Connector And Component Locations Are Found At Power Locks / Locations.
Locations
