System Diagram

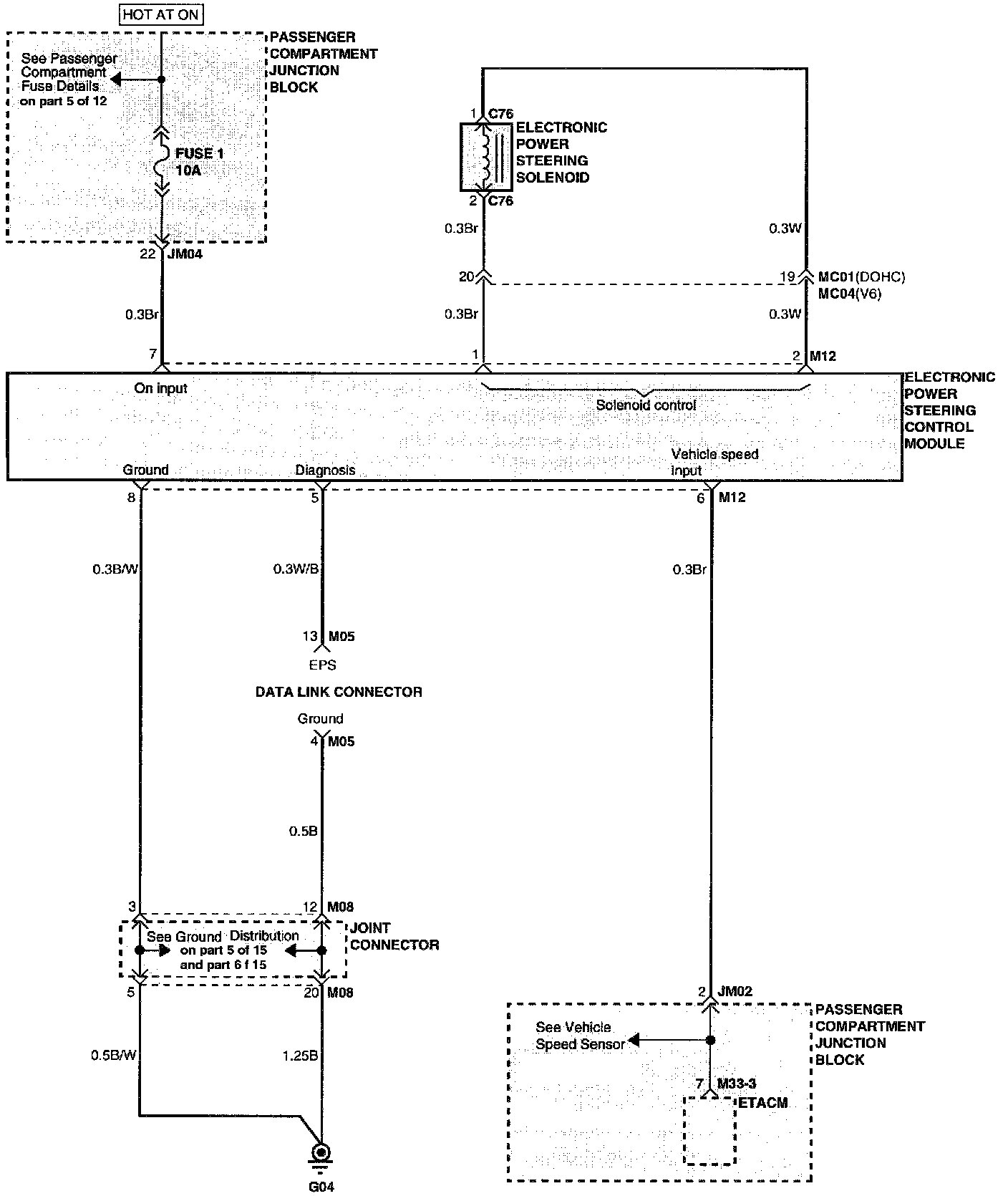

Electronic Power Steering System:






Electrical Diagram

Connector Configurations Are Found At Vehicle / Diagrams / Connector Views.
Connector Views

Connector And Component Locations Are Found At Steering / Locations.
