Main Harness (Roof)

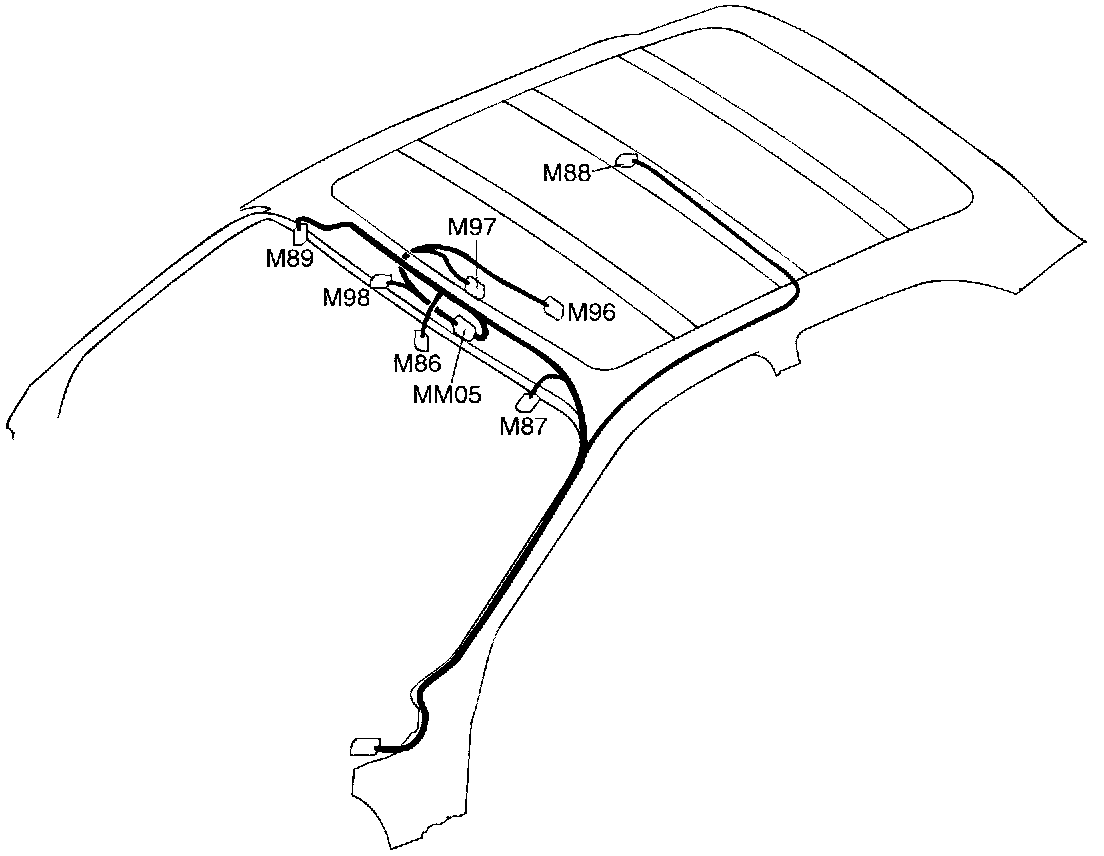

Harness Layout

M86 Map lamp
M87 Left vanity lamp
M88 Room lamp
M89 Right vanity lamp
M96 Sunroof motor
M97 Overhead console assembly
M98 Sunroof relay
JM08 Connection with PASSENGER COMPARTMENT JUNCTION BLOCK
MM05 Connection with SUNROOF harness
